Electrical Center Identification Views

Fig 1: View Of Body Control Module Label, Fuses And Relays
GM1794197Courtesy of GENERAL MOTORS CORP.
BODY CONTROL MODULE - FUSE AND RELAY IDENTIFICATION LEGEND

No. Fuse And Relay Description Rating Circuits
1 FUSE PLR - N/A
2 EMPTY - Not Used
3 EMPTY - Not Used
4 EMPTY - Not Used
5 EMPTY - Not Used
6 AMP Fuse 20A Audio Amplifier (UQ3)
7 CLSTR Fuse 10A Instrument Panel Cluster (IPC)
8 IGN SW/PK3+ Fuse 2A Ignition Switch
9 STOP LP Fuse 10A Not Used
10 HVAC/PK3+ Fuse 10A Theft Deterrent Module (TDM) and HVAC Control Module
11 EMPTY - Not Used
12 SPARE Fuse 20A Spare Fuse
13 AIRBAG Fuse 10A Inflatable Restraint Sensing and Diagnostic Module (SDM) and Inflatable Restraint Passenger Presence System (PPS) Module
14 SPARE Fuse 10A Spare Fuse
15 WPR Fuse 10A Windshield Wiper/Washer Switch
16 HVAC/IP IGN Fuse 10A Clutch Pedal Position (CPP) Sensor (LE5 with MA5), Fuse Block - Underhood, HVAC Control Module, Inflatable Restraint I/P Module Indicator, and Instrument Panel Cluster (IPC)
17 EMPTY - Not Used
18 EMPTY - Not Used
19 EPS/STR WHL CNTRL Fuse 2A Inflatable Restraint Steering Wheel Module Coil
20 SPARE Fuse 15A Spare Fuse
21 SPARE Fuse 20A Spare Fuse
22 EMPTY - Not Used
23 RDO Fuse 15A Radio
24 SDM Fuse 10A Inflatable Restraint Sensing and Diagnostic Module (SDM)
25 ECM/TCM Fuse 10A Engine Control Module (ECM) and Transmission Control Module (TCM) (M82)
26 DR LCK Fuse 15A DOOR LOCK PCB Relay, DOOR UNLOCK PCB Relay, and DR DOOR UNLOCK PCB Relay
27 INT LIGHT Fuse 10A INADVERTENT LOAD CONTROL PCB Relay
28 SWC BKLT 2A Steering Wheel Control Switch - Left and Steering Wheel Control Switch - Right
29 PWR WNDW Fuse 30A Window Switch - Driver and Window Switch - Passenger
30 HVAC Relay - Blower Motor and Blower Motor High Speed Relay
31 EMPTY - Not Used
32 RAP Relay - Power Windows and S ROOF Fuses
Printed Circuit Board (PCB) Relays - Not Serviceable
- DOOR LOCK PCB Relay - Door Lock Actuator - Driver and Door Lock Actuator - Passenger
- DOOR UNLOCK PCB Relay - Door Lock Actuator - Passenger
- DR DOOR UNLOCK PCB Relay - Door Lock Actuator - Driver
- INADVERTENT LOAD CONTROL PCB Relay - Inside Rearview Mirror (ISRVM)
Fig 2: Body Control Module - Top View
GM1885802Courtesy of GENERAL MOTORS CORP.
Fig 3: Body Control Module (BCM) X1 Connector View
GM1376257Courtesy of GENERAL MOTORS CORP.
Body Control Module X1

Pin Wire Circuit Function
1-5 - - Not Used
6 0.35 WH 682 Door Lock/Unlock Signal (Except Solstice Coupe)
0.35 YE Door Lock/Unlock Signal (Solstice Coupe) (AU3)
7 0.35 WH 682 Door Lock/Unlock Signal (Except Solstice Coupe)
0.35 BN Door Lock/Unlock Signal (Solstice Coupe)
8 0.35 WH 1080 Park Lamp Relay Control
9-12 - - Not Used
13 0.35 PK 849 Brake Fluid Level Sensor Signal
14 0.5 L-BU 1134 Park Brake Switch Signal
15 0.35 YE 5199 Run/Crank Relay Coil Control
16 0.35 WH 193 Rear Defog Relay Control
17 0.5 D-BU 15 Right Turn Signal Lamps Supply Voltage
18 - - Not Used
19 0.35 PK/WH 746 Right Front Door Ajar Switch Signal
20-21 - - Not Used
22 0.35 GY/BK 745 Left Front Door Ajar Switch Signal
23-25 - - Not Used
26 0.5 L-GN 1478 Coolant Level Switch Signal
27-30 - - Not Used
31 0.5 D-BU 20 Stop Lamp Supply Voltage
32 - - Not Used
33 0.35 D-GN/WH 1135 Automatic Transmission Shift Lock Control Solenoid Supply Voltage (M82)
34 - - Not Used
35 0.5 D-BU 14 Left Turn Signal Lamps Supply Voltage
36-39 - - Not Used
40 0.35 D-BU 1788 Traction Control Switch Signal (JL9)
41-43 - - Not Used
44 0.35 TN/WH 1969 Headlamp High Beam Relay Control
45-46 - - Not Used
47 0.35 YE 196 Windshield Wiper Motor Park Switch Signal
48-50 - - Not Used
51 0.35 D-GN 113 Windshield Wiper Switch Signal 2
52 - - Not Used
53 0.5 D-BU 20 Stop Lamp Supply Voltage
54 0.35 YE 317 Fog Lamp Relay Control
55 0.35 OG/BK 744 Rear Compartment Lid Ajar Switch Signal
56 0.5 OG/BK 737 Rear Compartment Lamp Control
57 0.35 BN 253 Trunk Release Relay Control
58 0.35 D-BU 38 Backup Lamp Relay Control (M82)
59 - - Not Used
60 0.35 TN 28 Horn Relay Control
61 0.5 BK/WH 651 Ground
62-66 - - Not Used
67 0.5 YE 61 Outside Ambient Temperature Sensor Return (SKY)
68-69 - - Not Used
70 0.5 D-GN/WH 636 Outside Ambient Temperature Sensor Signal (SKY)
71 0.35 L-GN/BK 592 Daytime Running Lights Relay Control
72 - - Not Used
Connector Part Information
  • OEM: 15393122
  • Service: 88987847
  • Description: 72-Way F Micro-64 Unsealed (Blue with Grey case)
Terminal Part Information
  • Pins: 6-8, 13-17, 19, 22, 26, 31, 35, 40, 44, 47, 51, 53-57, 60-61
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
  • Pins: 33, 38
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Fig 4: Identifying Body Control Module (BCM) X2 Connector End View
GM1376254Courtesy of GENERAL MOTORS CORP.
Body Control Module (BCM) X2

Pin Wire Circuit Function
1 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
2 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
3 0.35 YE 10 Headlamp Relay Control (Solstice)
0.35 PK/WH 1970 Low Beam Headlamp Relay Output Coil (SKY)
4 0.35 PU 524 Headlamp Dimmer Switch High Beam Signal
5 0.35 BN/WH 301 Park Lamp Switch On Signal
6-8 - - Not Used
9 0.35 WH 111 Hazard Warning Switch Signal
10 0.35 TN 1576 Rear Compartment Lock Actuator Unlock
11 0.35 D-GN 264 Security Indicator Supply Voltage
12-13 - - Not Used
14 0.35 TN 28 Horn Relay Control
15 0.35 WH 103 Headlamp Switch Headlamps On Signal
16 0.35 OG 192 Front Fog Lamp Switch Signal (T96)
17 0.35 PU/WH 549 Headlamp Switch Headlamps Off Signal
18 0.35 GY 5359 5-Volt Reference (Except Solstice Coupe)
0.35 WH 5-Volt Reference (Solstice Coupe)
19 0.5 TN 2501 High Speed GMLAN Serial Data Bus (-)
20 0.5 TN 2501 High Speed GMLAN Serial Data Bus (-)
21-25 - - Not Used
26 0.35 D-GN 44 I/P Lamp Dimmer Switch Signal
27-30 - - Not Used
31 0.35 YE 5361 Brake Pedal Position Sensor Signal
32 - - Not Used
33 0.35 YE 317 Fog Lamp Relay Control (T96)
34-37 - - Not Used
38 0.35 L-GN/BK 5060 Low Speed GMLAN Serial Data
39-43 - - Not Used
44 0.35 L-GN/BK 1137 Daytime Running Lights Ambient Light Sensor Signal
45-46 - - Not Used
47 0.35 YE/BK 1138 Low Reference
48-50 - - Not Used
51 0.35 BN 1356 Flash To Pass Switch Signal
52-55 - - Not Used
56 0.35 WH 1390 Off/Run/Crank Voltage
57 0.35 GY 112 Windshield Wiper Switch Low/Pulse Signal
58 0.35 PU 719 Low Reference
59 0.35 BN 5360 Low Reference
60 - - Not Used
61 0.35 GY 1884 Cruise Control Switch Signal (K34)
62 0.35 WH/BK 1073 Ignition Key Resistor Signal
63-65 - - Not Used
66 0.35 YE/BK 1418 Left Rear Turn Signal Switch Signal
67 0.35 D-GN/WH 1419 Right Rear Turn Signal Switch Signal
68 0.35 L-BU 292 Rear Defog Switch Signal
69 0.35 D-GN/WH 762 A/C Request Signal (C60)
70 - - Not Used
71 0.35 PU 5234 Passenger Seat Belt Indicator
72 0.35 WH 193 Rear Defogger Relay Control
Connector Part Information
  • OEM: 15393121
  • Service: 88987848
  • Description: 72-Way F Micro-64 Unsealed (Blue with Grey case)

Terminal Part Information
  • Pins: 1-5, 9-11, 14-20, 26, 31, 33, 38, 44, 47, 51, 56-59, 61-62, 66-69, 71-72
  • Terminal: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Fig 5: Identifying Body Control Module (BCM) X3 Connector End View
GM1814460Courtesy of GENERAL MOTORS CORP.
Body Control Module (BCM) X3

Pin Wire Circuit Function
A1 0.5 TN 294 Door Lock Actuator Unlock Control (AU3)
A2 - - Not Used
A3 0.5 D-BU/WH 149 Courtesy Lamp Supply Voltage
A4 0.5 GY 295 Door Lock Actuator Lock Control (AU3)
A5 0.5 GY 295 Door Lock Actuator Lock Control (AU3)
A6 - - Not Used
A7 0.5 BN 9 Park Lamp Supply Voltage
A8 0.5 PK 339 Ignition 1 Voltage
A9 0.8 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
A10 0.5 GY 157 Courtesy Lamp Control
A11 - - Not Used
A12 0.8 D-GN 19 Right Rear Turn Signal Lamps Supply Voltage
B1 0.5 TN 694 Driver Door Lock Actuator Unlock Control (AU3)
B2 - - Not Used
B3 0.35 RD/WH 1240 Battery Positive Voltage
B4 - - Not Used
B5 0.35 BN 4 Accessory Voltage
B6-B7 - - Not Available
B8-B11 - - Not Used
B12 0.35 GY 8 Instrument Panel Lamp Supply Voltage
C1-C2 - - Not Available
C3-C4 - - Not Used
C5 3.0 D-GN 801 Retained Accessory Power Fuse Supply Voltage (AU3)
C6-C7 - - Not Available
C8-C11 - - Not Used
C12 0.35 OG 228 Windshield Washer Pump Control
D1-D2 5.0 RD/BK 142 Battery Positive Voltage
D3 - - Not Used
D4 0.5 RD/WH 840 Battery Positive Voltage
D5 3.0 D-GN 801 Retained Accessory Power Fuse Supply Voltage (AU3)
D6 3.0 PK 739 Ignition 1 Voltage
D7 0.35 PK 1339 Ignition 1 Voltage
D8-D9 - - Not Used
D10 3.0 RD/BK 442 Battery Positive Voltage
D11 2.0 RD/WH 640 Battery Positive Voltage (UQ3)
D12 3.0 RD/BK 242 Battery Positive Voltage
Connector Part Information
  • OEM: 15492675
  • Service: 88988613
  • Description: 41-Way F Metri-Pack 280 800 Series (RD)

Terminal Part Information
  • Pins: A1, A3, A4, A5, A7, A8, A9, A10, A12, B1, D4, B3, B5, C12, D7
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: Pins A1, A3, A4, A5, A7, A9, A10, A12, B1, B12, D4 - E/A
  • Core/Insulation Crimp: Pins B3, B5, C12, D7 - E/C
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: C5, D1, D5, D6, D10, D12, D11
  • Terminal/Tray: 12110842/4
  • Core/Insulation Crimp: Pins C5, D1, D5, D6, D10, D12 - F/G
  • Core/Insulation Crimp: Pins D11 - A/B
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Fig 6: Body Control Module - Bottom View
GM1885807Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Body Control Module (BCM) X4 Connector End View
GM697044Courtesy of GENERAL MOTORS CORP.
Body Control Module (BCM) X4

Pin Wire Circuit Function
A1-A12 - - Not Used
B1 0.35 OG 228 Windshield Washer Pump Control
B2-B12 - - Not Used
C1 0.35 RD/WH 1440 Battery Positive Voltage
C2-C5 - - Not Used
C6-C7 - - Not Available
C8 0.35 BN 4 Accessory Voltage
C9-C10 - - Not Used
C11 0.35 GY 8 Instrument Panel Lamp Supply Voltage
C12 0.35 GY/BK 1458 Instrument Panel Lamp Supply Voltage (4)
D1 0.35 RD/WH 1040 Battery Positive Voltage
D2 - - Not Used
D3 0.35 YE 5199 Run/Crank Relay Coil Control
D4 3.0 BN 141 Ignition 3 Voltage
D5 - - Not Used
D6-D7 - - Not Available
D8-D9 - - Not Used
D10 0.8 RD/WH 1140 Battery Positive Voltage (UQ3)
1.0 RD/WH Battery Positive Voltage (UW5)
D11 - D12 - - Not Used
E1-E5 - - Not Used
E6 0.35 PK 439 Ignition 1 Voltage
E7-E11 - - Not Used
E12 2.0 BK 550 Ground
F1 0.35 RD/WH 1540 Battery Positive Voltage
F2 0.5 GY 8 Instrument Panel Lamp Supply Voltage
F3 - - Not Used
F4 0.5 PK 339 Ignition 1 Voltage
F5 0.35 PK 339 Ignition 1 Voltage
F6-F8 - - Not Used
F9 0.35 PK 1539 Ignition 1 Voltage
F10-F12 - - Not Used
Connector Part Information
  • OEM: 15492668
  • Service: 88988776
  • Description: 68-Way F Metri-Pack 280 Series, Flexlock (L-GY)

Terminal Part Information
  • Pins: F2, F4, F5, F6, F6
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B1, C1, C8, C11, C12, D1, D3, E6, F1, F9, D10, D10
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: Pins B1, C1, C8, C11, C12, D1, D3, E6, F1, F9 - E/C
  • Core/Insulation Crimp: Pins D10 - See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: D4, E12
  • Terminal/Tray: 12110842/4
  • Core/Insulation Crimp: Pins D4 - F/G
  • Core/Insulation Crimp: Pins E12 - A/B
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Fig 8: View Of Fuse Block - Underhood Label - Convertible (LE5 W/MA5)
GM1986834Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
Fig 9: View Of Fuse Block - Underhood Label - Solstice Coupe (LE5 with MA5)
GM2135971Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
Fig 10: View Of Fuse Block - Underhood Label - Convertible (LE5 w/M82)
GM1987038Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
Fig 11: View Of Fuse Block - Underhood Label - Solstice Coupe (LE5 with M82)
GM2135955Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
Fig 12: View Of Fuse Block - Underhood Label - Convertible (LNF with MA5)
GM1738763Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

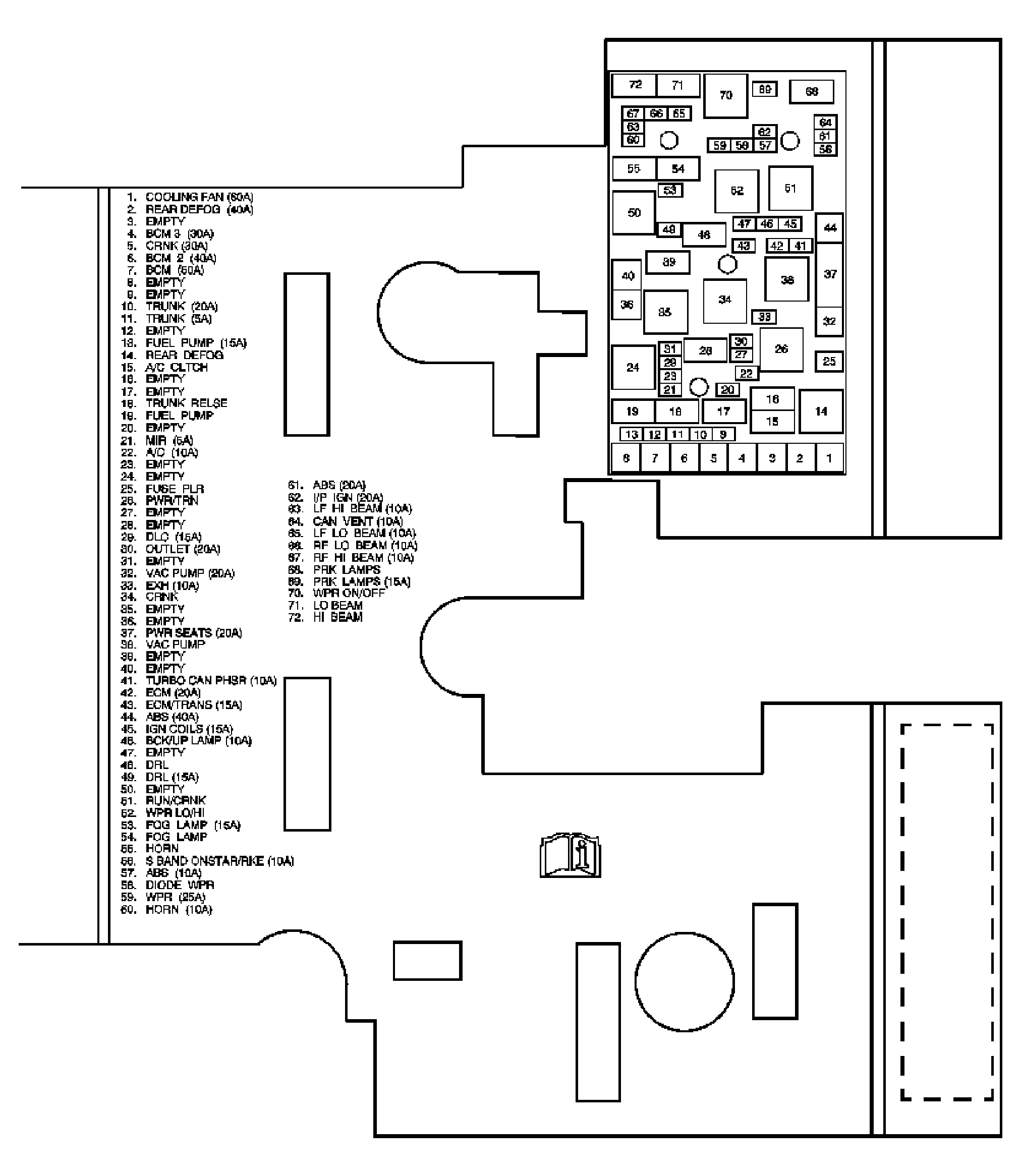

Fig 13: View Of Fuse Block - Underhood Label - Solstice Coupe (LNF with MA5)
GM2135938Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
Fig 14: View Of Fuse Block - Underhood Label - Convertible (LNF with M82)
GM1738764Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

Refer to FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

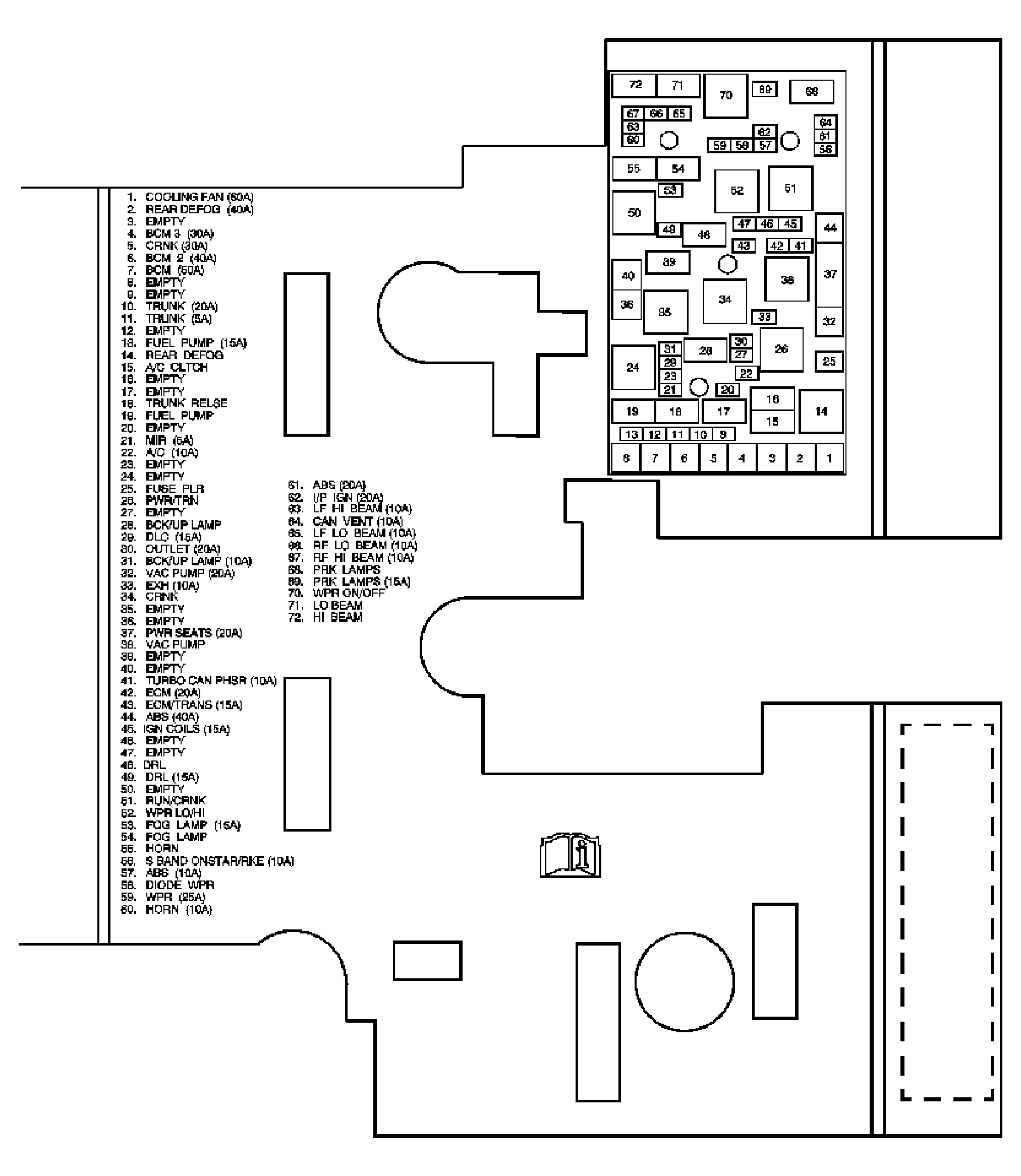

Fig 15: View Of Fuse Block - Underhood Label - Solstice Coupe (LNF with M82)
GM2135934Courtesy of GENERAL MOTORS CORP.
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND

No. Fuse And Relay Description Rating Circuits
1 ENG COOL FAN Fuse 60A Engine Cooling Fan (Convertible LNF)
COOLING FAN Fuse Engine Cooling Fan (Solstice Coupe LNF)
2 REAR DEFOG Fuse 20A Rear Window Defog Relay (Convertible)
REAR DEFOG Fuse 40A Rear Window Defog Relay (Solstice Coupe)
3 EMPTY - Not Used
4 BCM 3 Fuse 30A Body Control Module (BCM)
5 CRNK Fuse 30A Crank Relay
6 BCM 2 Fuse 40A Body Control Module (BCM)
7 BCM Fuse 50A Body Control Module (BCM)
8 COOL FAN 2 Fuse 30A Cooling Fan 2 Relay (Convertible LE5)
COOLING FAN 2 Fuse Cooling Fan 2 Relay (Solstice Coupe LE5)
9 EMPTY - Not Used
10 TRUNK Fuse 25A Trunk Release Relay (Convertible)
TRUNK Fuse 20A Trunk Release Relay (Solstice Coupe)
11 TRUNK Fuse 5A Trunk Release Relay
12 EMPTY - Not Used
13 FUEL PUMP Fuse 15A Fuel Pump Relay
14 REAR DEFOG Relay - Rear Window Defogger Grid
15 A/C CLTCH Relay - Engine Control Module (ECM), A/C Compressor Clutch (C60)
16-17 EMPTY - Not Used
18 TRUNK RELSE Relay - Trunk Lock Actuator, Body Control Module (BCM)
19 FUEL PUMP Relay - Fuel Pump and Sender Assembly
20 EMPTY - Not Used
21 MIR Fuse 5A Outside Rearview Mirror Switch
22 A/C Fuse 10A A/C Clutch Relay
23 EMPTY - Not Used
24 COOL FAN 2 Relay - Engine Cooling Fan, Engine Control Module (ECM) (Convertible LE5)
COOLING FAN 2 Relay Engine Cooling Fan, Engine Control Module (ECM) (Solstice Coupe LE5)
25 FUSE PLR - Not Used
26 PWR/TRN Powertrain Relay - EMISSIONS, INJ MOD, Engine Control Module (ECM) Fuses
27 EMPTY - Not Used
28 BCK/UP LAMP Relay - Backup Lamp Fuse (M82)
29 DLC Fuse 15A Data Link Connector Fuse
30 OUTLET Fuse 20A Accessory Power Outlet
31 BCK/UP LAMP Fuse 10A Backup Lamp and Backup Lamp Switch (M82)
32 VAC PUMP Fuse 20A VAC PUMP Relay (LNF)
33 EXH Fuse 10A Heated Oxygen Sensor 1, 2, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid Valve
34 CRNK Starter Relay - Starter Motor, Engine Control Module (ECM)
35-36 EMPTY - Not Used
37 PWR SEATS Fuse 20A Seat Adjuster Switch - Driver (AF2)
38 VAC PUMP Relay - Brake Booster Pump Motor (LNF) and Engine Control Module (ECM) (LNF)
39 EMPTY - Not Used
40 COOL FAN Fuse 30A Engine Cooling Fan (Convertible LE5)
COOLING FAN 1 Fuse Engine Cooling Fan (Solstice Coupe LE5)
41 TURBO Fuse 10A Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust, Camshaft Position (CMP) Actuator Solenoid Valve - Intake, Turbocharger Wastegate Solenoid, and Turbocharger Bypass Valve Solenoid (Convertible LNF)
TURBO CAM PHSR Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust, Camshaft Position (CMP) Actuator Solenoid Valve - Intake, Turbocharger Wastegate Solenoid, and Turbocharger Bypass Valve Solenoid (Solstice Coupe LNF)
42 ECM Fuse 20A Engine Control Module (ECM) (LNF)
ECM Fuse 15A Engine Control Module (ECM) (LE5)
43 ECM/TRANS Fuse 15A Engine Control Module (ECM), Transmission Control Module (TCM)
44 ABS Fuse 40A Electronic Brake Control Module (EBCM)
45 INJ IGN MDL Fuse 10A Ignition Coils (Convertible LE5)
INJ IGN COILS Fuse Ignition Coils (Solstice Coupe LE5)
INJ IGN MDL Fuse 15A Ignition Coils (Convertible LNF)
IGN COILS Fuse Ignition Coils (Solstice Coupe LNF)
46 BCK/UP LAMP Fuse 10A Back Up Lamp (MA5)
47 EMPTY - Not Used
48 DRL Relay - Body Control Module (BCM) and Headlamp - Left Low Beam
49 DRL Fuse 15A Daytime Running Lights Relay
50 COOL FAN Relay - Engine Cooling Fan (Convertible LE5)
COOLING FAN 1 Relay Engine Cooling Fan (Solstice Coupe LE5)
51 RUN/CRNK Starter Relay - Starter Motor
52 WPR LO/HI Relay - Windshield Wiper Motor
53 FOG LAMP Fuse 15A Fog Lamp Relay (T96)
54 FOG LAMP Relay - Fog Lamp - Left Front (T96) and Fog Lamp - Right Front (T96)
55 HORN Relay - Horn Switch and Horn
56 S BAND ONSTAR/RKE Fuse 10A Digital Radio Receiver (U2K), Remote Control Door Lock Receiver (RCDLR), and Vehicle Communication Interface Module (VCIM) (UE1)
57 ABS Fuse 10A Electronic Brake Control Module (EBCM)
58 DIODE WPR - Wiper Relay
59 WPR Fuse 25A Wiper Relay
60 HORN Fuse 10A Horn Relay
61 ABS Fuse 20A Electronic Brake Control Module (EBCM)
62 I/P IGN Fuse 20A AIRBAG Fuse, EPS/STR WHL CNTRL Fuse, HVAC/IP IGN Fuse, WPR Fuse, Body Control Module (BCM)
63 LT HI BEAM Fuse 10A Headlamp - Left High Beam
64 CAN VENT Fuse 10A Evaporative Emission (EVAP) Canister Vent Solenoid Valve
65 LT LO BEAM Fuse 10A Headlamp - Left Low Beam
66 RT LO BEAM Fuse 10A Headlamp - Right Low Beam
67 RT HI BEAM Fuse 10A Headlamp - Right High Beam
68 PRK LAMPS Relay - Body Control Module (BCM), License Lamp, Side Marker Lamp - Left Front, Side Marker Lamp - Right Front, Park Lamp - Left Front (SKY), Park Lamp - Right Front (SKY), Park/Turn Signal Lamp - Left (Solstice), Park/Turn Signal Lamp - Right (Solstice), Tail/Stop and Turn Signal Lamp - Left Outer (SKY), Tail/Stop and Turn Signal Lamp - Left Inner (SKY), Tail/Stop and Turn Signal Lamp - Left (Solstice), Tail/Stop and Turn Signal Lamp - Right Inner (SKY), and Tail/Stop and Turn Signal Lamp - Right Outer (SKY), Tail/Stop and Turn Signal Lamp - Right (Solstice)
69 PRK LAMPS Fuse 15A PRK LAMPS Relay
70 WPR ON/OFF Wiper Relay - Windshield Wiper Motor
71 LO BEAM Relay - Headlamp - Left Low Beam Fuse, Headlamp - Right Low Beam Fuse, and Body Control Module (BCM)
72 HI BEAM Relay - Headlamp - Left High Beam Fuse, Headlamp - Right High Beam Fuse, and Body Control Module (BCM)
Fig 16: Fuse Block - Underhood Top View
GM1631728Courtesy of GENERAL MOTORS CORP.
Fig 17: Fuse Block - Underhood Bottom View
GM1885811Courtesy of GENERAL MOTORS CORP.
Fig 18: Fuse Block - Underhood X1 Connector End View
GM1590995Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X1

Pin Wire Circuit Function
A1 0.35 D-GN 335 Low Speed Cooling Fan Relay Control (LE5)
A2-A8 - - Not Used
A9 0.35 D-BU 20 Stop Lamp Supply Voltage
A10 0.8 PK 539 Ignition 1 Voltage (MA5)
A11 0.8 PK/BK 5292 Ignition 1 Voltage
A12 0.35 BN 4 Accessory Voltage (M82)
B1 - - Not Used
B2 0.35 WH 2368 Cooling Fan Clutch Supply Voltage (LNF)
B3-B4 - - Not Used
B5 - - Not Available
B6-B7 - - Not Used
B8 - - Not Available
B9 - - Not Used
B10 0.8 PK/BK 5290 Ignition 1 Voltage
B11 0.8 PK 1039 Ignition 1 Voltage (M82)
B12 0.8 PK/BK 5293 Ignition 1 Voltage
C1-C3 - - Not Used
C4 0.8 L-GN 24 Backup Lamp Supply Voltage (MA5)
C5 - - Not Used
C6-C7 - - Not Available
C8 - - Not Used
C9 0.35 PU/WH 6386 Starter Enable Relay Control
C10-C11 - - Not Used
C12 0.5 PK 1039 Ignition 1 Voltage
D1-D2 - - Not Used
D3 0.5 BK 250 Ground (C60)
D4-D5 - - Not Used
D6-D7 - - Not Available
D8 - - Not Used
D9 0.5 PK/BK 5291 Ignition 1 Voltage
D10 - - Not Used
D11 0.5 BN 7448 Vacuum Assist Pump Relay Coil Control (LNF)
D12 0.35 D-GN/WH 459 A/C Compressor Clutch Relay Control (C60)
E1-E4 - - Not Used
E5 - - Not Available
E6 0.35 BK/WH 451 Ground
E7 2.0 PU 6 Starter Solenoid Crank Voltage
E8 - - Not Available
E9 0.5 PK/BK 5291 Ignition 1 Voltage
E10-E12 - - Not Used
F1 0.35 D-BU 473 High Speed Cooling Fan Relay Control (LE5)
F2 0.35 L-GN 24 Backup Lamp Supply Voltage (LNF with M82)
F3-F7 - - Not Used
F8 0.5 OG 1470 Brake Booster Pump Motor Control (LNF)
F9 0.8 PK/BK 5291 Ignition 1 Voltage
F10 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage (C60)
F11 - - Not Used
F12 0.35 YE 5991 Main Relay Coil Control
Connector Part Information
  • OEM: R61927-002
  • Service: 88988759
  • Description: 64-Way F (GY)

Terminal Part Information
  • Pins: E7
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-35 (VT)
  • Pins: A1, A9, A12, C9, D3, D9, D12, E6, E9, F1, F9, F10, F12
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A10, A11, B10, B11, C4, C12
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Fig 19: Fuse Block - Underhood X2 Connector End View
GM1592566Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X2

Pin Wire Circuit Function
A1 0.5 D-BU 15 Right Turn Signal Lamps Supply Voltage
A2-A4 - - Not Used
A5 5.0 RD/BK 142 Battery Positive Voltage
A6-A8 - - Not Used
A9 1.0 RD/WH 240 Battery Positive Voltage
A10-A12 - - Not Used
B1 0.35 TN 28 Horn Relay Control
B2 - - Not Used
B3 0.5 RD/WH 40 Battery Positive Voltage
B4 - - Not Used
B5 - - Not Available
B6 0.35 D-BU 38 Backup Lamp Relay Control (M82)
B7 - - Not Used
B8 - - Not Available
B9 - - Not Used
B10 0.5 PK/BK 5291 Ignition 1 Voltage
B11 - - Not Used
B12 0.35 WH 193 Rear Defog Relay Control
C1 0.35 YE 317 Fog Lamp Relay Control (T96)
C2 0.8 L-GN 24 Backup Lamp Supply Voltage (M82)
C3-C5 - - Not Used
C6-C7 - - Not Available
C8-C12 - - Not Used
D1-D2 - - Not Used
D3 0.35 RD/WH 440 Battery Positive Voltage (A31)
D4-D5 - - Not Used
D6-D7 - - Not Available
D8 0.35 L-GN/BK 592 Daytime Running Lights Relay Control
D9-D12 - - Not Used
E1 0.35 TN/WH 1969 Headlamp High Beam Relay Control
E2 1.0 GY 120 Fuel Pump Supply Voltage
E3 0.35 BN 253 Trunk Release Relay Control
E4 - - Not Used
E5 - - Not Available
E6 0.8 L-GN 24 Backup Lamp Supply Voltage (MA5)
E7 - - Not Used
E8 - - Not Available
E9-E11 - - Not Used
E12 1.0 PU 293 Rear Defog Element Supply Voltage (Convertible)
3.0 PU Rear Defog Element Supply Voltage (Solstice Coupe)
F1 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
F2 0.5 D-GN/WH 465 Fuel Pump Relay Control
F3 1.0 TN/WH 56 Trunk Release Motor Supply Voltage (Convertible)
0.8 TN/WH Trunk Release Motor Supply Voltage (Solstice Coupe)
F4 - - Not Used
F5 3.0 RD/BK 242 Battery Positive Voltage
F6 3.0 RD/BK 442 Battery Positive Voltage
F7-F8 - - Not Used
F9 1.0 BK 250 Ground
F10-F12 - - Not Used
Connector Part Information
  • OEM: R61927-001
  • Service: 88988756
  • Description: 64-Way F 2.8 6.3 MXD (BK)

Terminal Part Information
  • Pins: B6, B9
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: F6
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-35 (VT)
  • Pins: A1, B1, B3, B9, B10, B12, C1, D3, E1, E3, F1, F2
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A5, F5
  • Terminal/Tray: 7116-4122-02/10
  • Core/Insulation Crimp: Pins A5 - D/G
  • Core/Insulation Crimp: Pins F5 - A/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: A9, E2, E12, F9, C2, E6, F3, F3
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: Pins A9, E2, E12, F9 - C/A
  • Core/Insulation Crimp: Pins C2, E6, F3, F3 - E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Fig 20: Fuse Block - Underhood X3 Connector End View
GM1744270Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X3

Pin Wire Circuit Function
A1-A2 - - Not Used
A3 5.0 RD/BK 542 Battery Positive Voltage (JL9)
A4 - - Not Used
A5 2.0 RD/WH 540 Battery Positive Voltage (JL9)
A6 0.5 BN 9 Park Lamp Supply Voltage
B1 0.8 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
B2 0.8 TN/WH 312 Right Headlamp Low Beam Supply Voltage
B3-B4 - - Not Available
B5 0.8 YE 712 Left Headlamp Low Beam Supply Voltage
0.5 PU 359 Daytime Running Lights Supply Voltage
B6 - - Not Used
C1 0.8 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
C2 - - Not Used
C3-C4 - - Not Available
C5 1.0 BK 250 Ground
C6 - - Not Used
D1-D2 - - Not Used
D3-D4 - - Not Available
D5 0.5 PU 359 Daytime Running Lights Supply Voltage
D6 0.5 PK 1439 Ignition 1 Voltage (JL9)
E1 0.35 WH 2368 Engine Cooling Fan Clutch Supply Voltage (LNF)
3.0 L-BU 409 Engine Cooling Fan Motor Supply Voltage (LE5)
E2 0.8 D-GN 29 Horn Control
E3-E4 - - Not Available
E5 0.8 PU 2234 Front Fog Lamp Supply Voltage (T96)
E6 - - Not Used
F1 0.5 D-BU 15 Right Turn Signal Lamps Supply Voltage
F2-F3 - - Not Used
F4 3.0 GY 532 Engine Cooling Fan Motor Supply Voltage (LE5)
F5 - - Not Used
F6 0.5 L-BU 14 Left Turn Signal Lamps Supply Voltage
Connector Part Information
  • OEM: R62807-002-A
  • Service: 88988760
  • Description: 28-Way F (GY)

Terminal Part Information
  • Pins: A5, E1
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-35 (VT)
  • Pins: A6, B1, B2, B5, C1, D6, E5, F1, F6
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A3, F4
  • Terminal/Tray: 7116-4122-02/10
  • Core/Insulation Crimp: Pins A3 - D/G
  • Core/Insulation Crimp: Pins F4 - A/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: C5, E2
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: Pins C5 - C/A
  • Core/Insulation Crimp: Pins E2 - E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Fig 21: Fuse Block - Underhood X4 Connector End View
GM1744265Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X4

Pin Wire Circuit Function
A1 0.8 BN 9 Park Lamp Supply Voltage
A2-A5 - - Not Used
A6 0.5 L-BU 20 Stop Lamp Supply Voltage
B1 - - Not Used
B2 0.35 D-GN 113 Windshield Wiper Relay Control
B3-B4 - - Not Available
B5 0.35 WH 1080 Park Lamp Relay Control
B6 - - Not Used
C1 0.35 L-GN 1715 Windshield Wiper Switch High Signal
C2 3.0 PK 739 Ignition 1 Voltage
C3-C4 - - Not Available
C5 0.5 RD/WH 140 Battery Positive Voltage
C6 - - Not Used
D1 1.0 D-GN 95 Windshield Washer Switch Signal
D2 - - Not Used
D3-D4 - - Not Available
D5 - - Not Used
D6 0.5 RD/WH 1340 Battery Positive Voltage
E1 1.0 PU 92 Windshield Wiper Motor High Speed Control
E2 - - Not Used
E3-E4 - - Not Available
E5 - - Not Used
E6 0.35 RD/WH 1340 Battery Positive Voltage
F1 - - Not Used
F2 0.35 YE 5199 Run/Crank Relay Coil Control
F3 0.5 L-BU 14 Left Turn Signal Lamp Supply Voltage
F4 2.0 RD/BK 642 Battery Positive Voltage
F5 0.35 BN 4 Accessory Voltage (M82)
F6 - - Not Used
Fuse Block - Underhood X5

Terminal Part Information
  • Terminal: 15477864
  • Core/Insulation Crimp: N/A
  • Description: Ring Terminal
Fuse Block - Underhood X5

Pin Wire Circuit Function
+ 8 RD 1 Battery Positive Voltage
Fuse Block - Underhood X6

Terminal Part Information
  • Terminal: 12191460
  • Core/Insulation Crimp: N/A
  • Description: Ring Terminal
Fuse Block - Underhood X6

Pin Wire Circuit Function
+ 13 RD 1 Battery Positive Voltage
Connector Part Information
  • OEM: R-62807-001-A
  • Service: 19115600
  • Description: 28-Way F 2.8 6.3 MXD(BK)

Terminal Part Information
  • Pins: C2
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-35 (VT)
  • Pins: F5
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: D1, E1
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A6, B2, B5, C1, C5, D6, D6, D6, E6, F2
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A1, F3
  • Terminal/Tray: 7116-4120-02/9
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
scientia non olet · About LEMON Manuals
