Installation Procedure

    Fig 1: Bank 2 Knock Sensor & Bolt
    GM860802Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the knock sensor and tighten the knock sensor bolt to 23 N.m (17 lb ft).

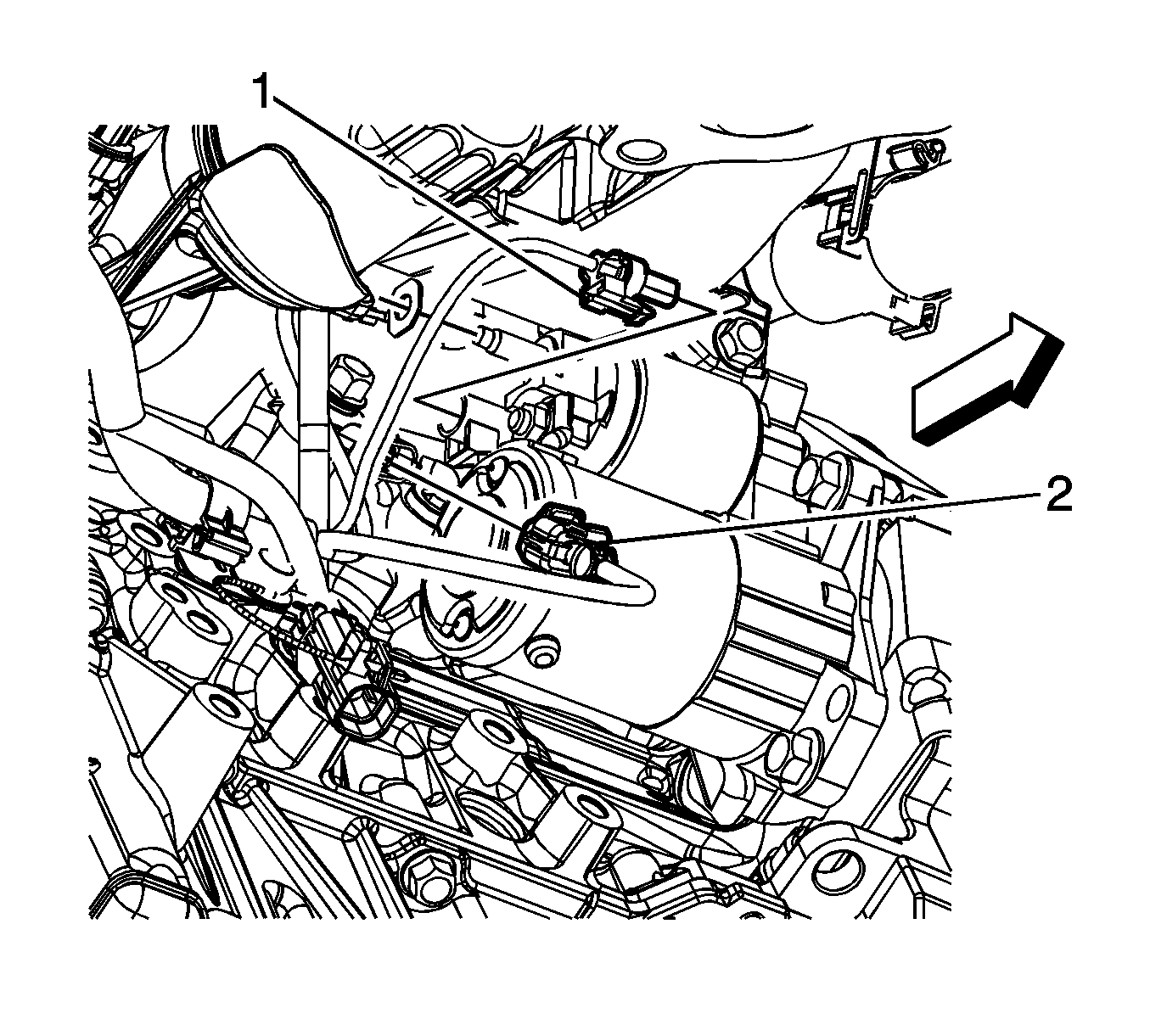

    2. Fig 2: Bank 2 Knock Sensor Electrical Connector
    GM1839727Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor.
  3. Lower the vehicle.
