Child Restraint Tether Anchor Replacement (Coupe)

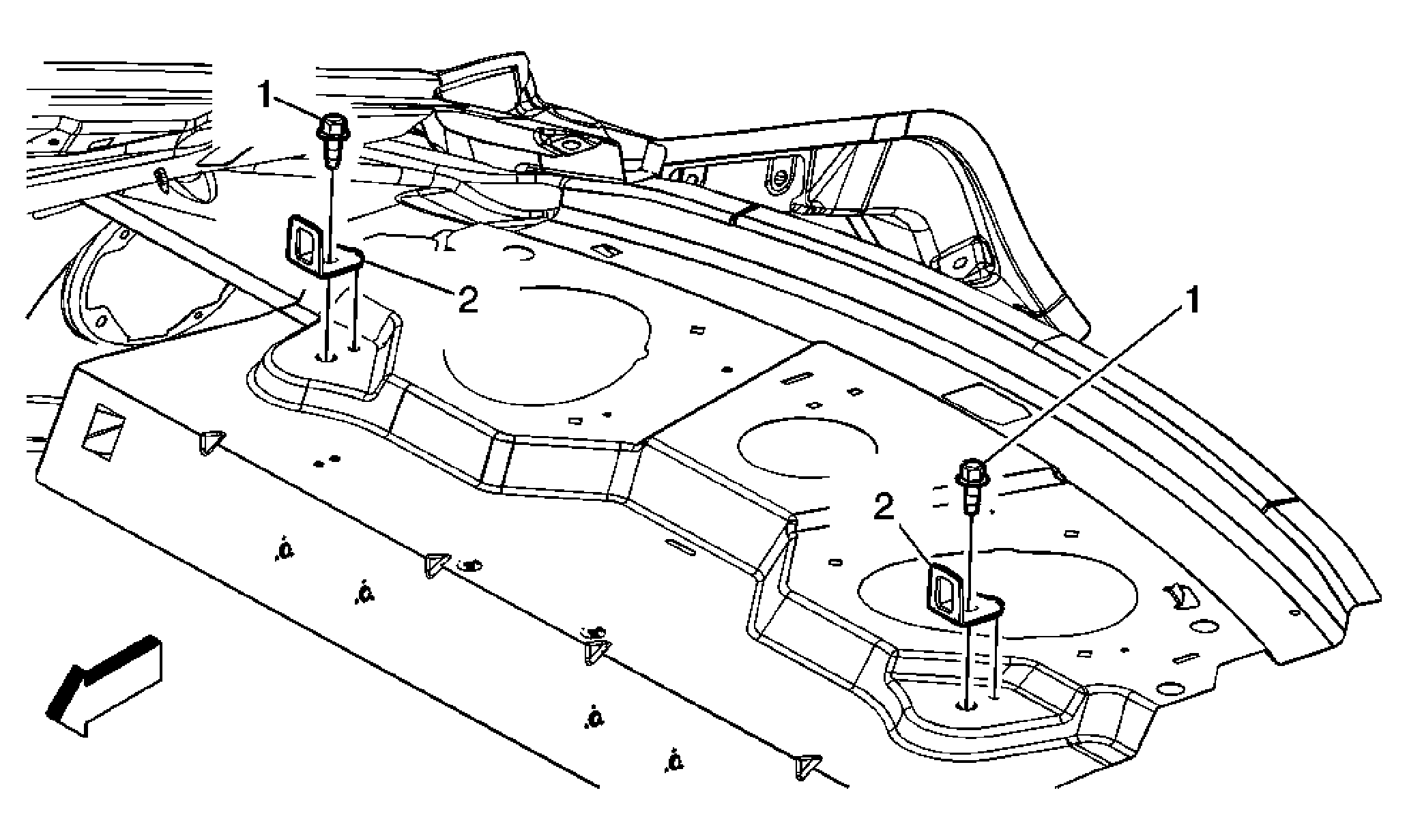

Fig 1: Child Restraint Tether Anchor (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Coupe) .
1	Child Seat Top Strap Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  45 N.m (33 lb ft)
2	Child Seat Top Strap Bracket (Qty: 2)
