Removal Procedure

    Fig 1: Engine Oil Pressure Sensor, Knock Sensor & CKP Sensor Electrical Connectors
    GM1571236Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the crankshaft position (CKP) sensor electrical connector (3).
  2. Remove the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement (LE5) .

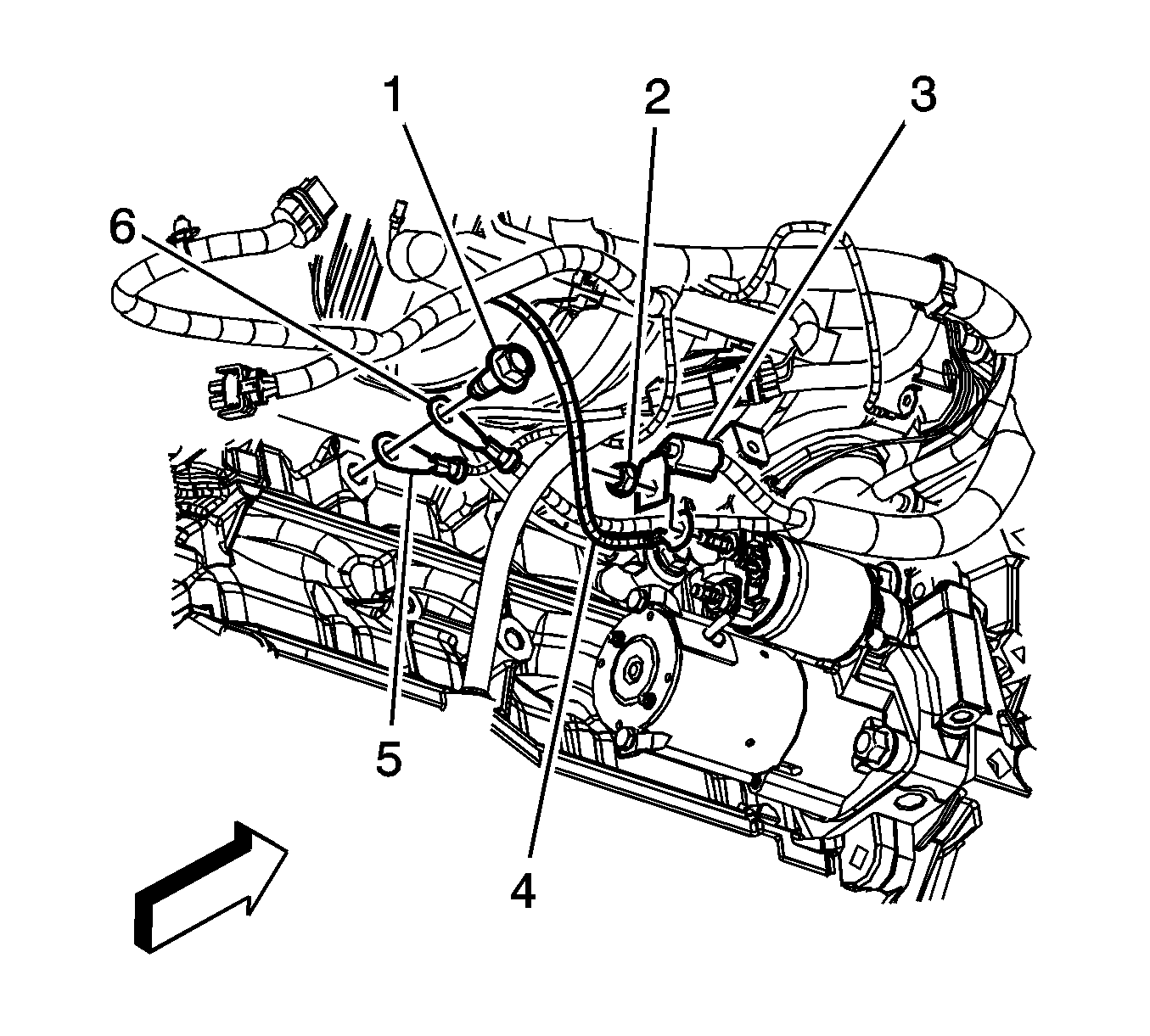

    3. Fig 2: Battery Cables, Nuts, Bolts & Connectors
    GM1578421Courtesy of GENERAL MOTORS CORP.
  3. Remove the positive battery cable nut (2) from the starter solenoid.
  4. Remove the positive battery cable (3) from the starter solenoid.
    5. Fig 3: CKP Sensor & Bolt
    GM1578475Courtesy of GENERAL MOTORS CORP.
  5. Remove the CKP sensor bolt.
  6. Remove the CKP sensor.
