Air Cleaner Outlet Duct Replacement

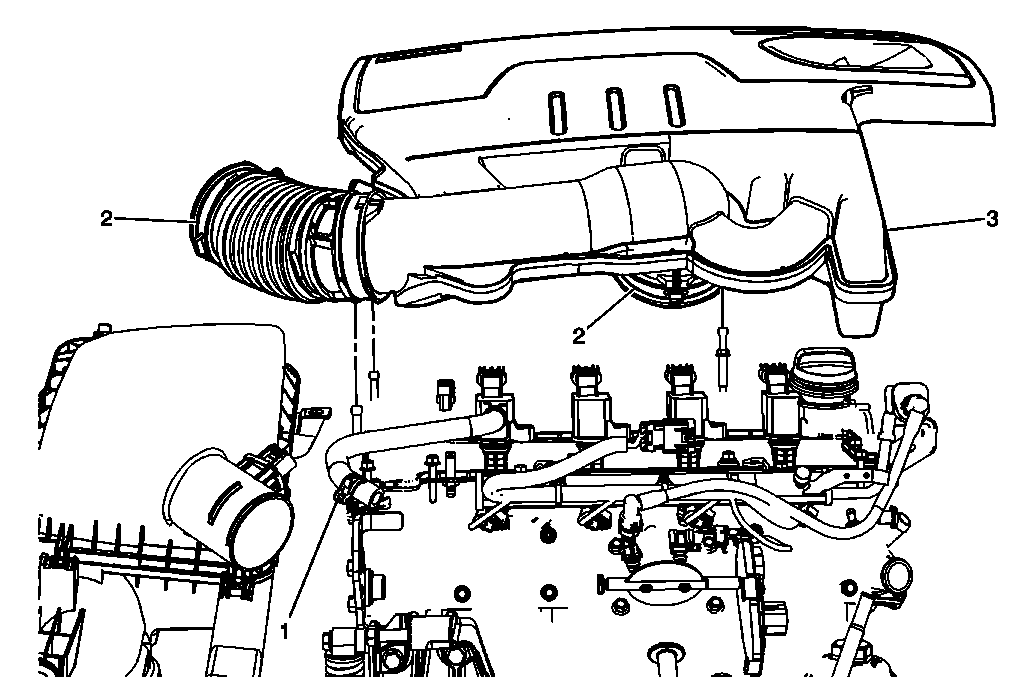

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hose Clamp Procedure: Reposition the hose clamp and remove the hose.
2	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Loosen both of the outlet duct clamps. Tighten: 4 N.m (35 lb in)
3	Air Cleaner Outlet Duct Procedure: Pull straight up to detach the ball studs.
