Front of Vehicle/Engine Compartment Component Views

Fig 1: Front of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker Lamp - Right Front
2	Park/Turn Signal Lamp - Right
3	Headlamp - Right Low Beam
4	Headlamp - Right High Beam
5	Cellular, Navigation and Digital Radio Antenna (UE1/U2K)
6	Headlamp - Left High Beam
7	Headlamp -Left Low Beam
8	Park/Turn Signal Lamp - Left
9	Side Marker Lamp - Left Front
10	Fog Lamp - Left Front (T96)
11	Fog Lamp - Right Front (T96)

Fig 2: Core Support Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3 or AP8)

Fig 3: Core Support Components (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

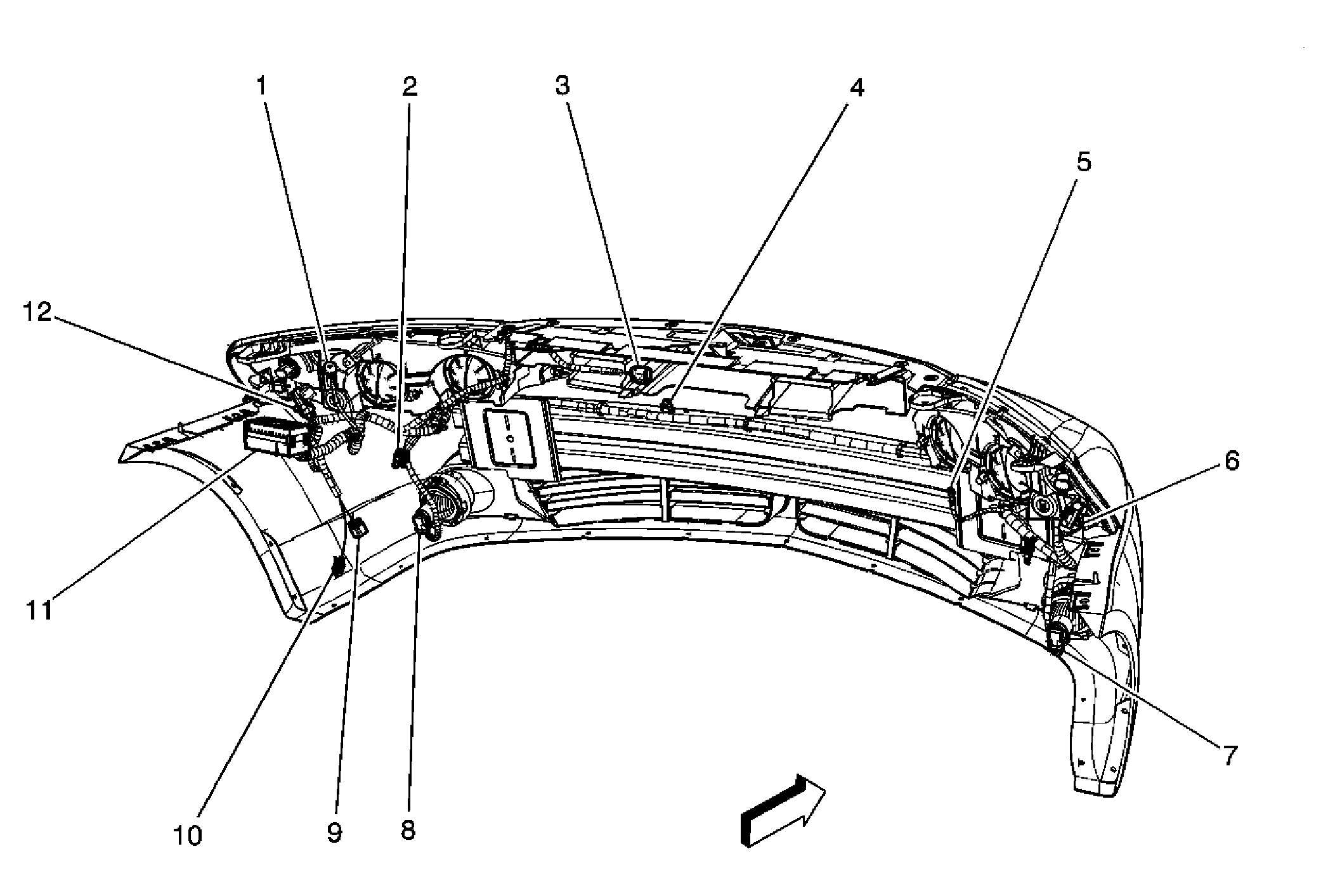

Fig 4: Front Fascia Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Horn Assembly Connector
3	Hood Ajar Switch Connector (AP3/AP8)
4	Ambient Air Temperature Sensor
5	G102
6	X110
7	Fog Lamp - Right Front (T96)
8	Fog Lamp - Left Front (T96)
9	Windshield Washer Fluid Pump Connector
10	Windshield Washer Fluid Level Switch Connector
11	Fuse Block - Underhood X3 Connector
12	X109

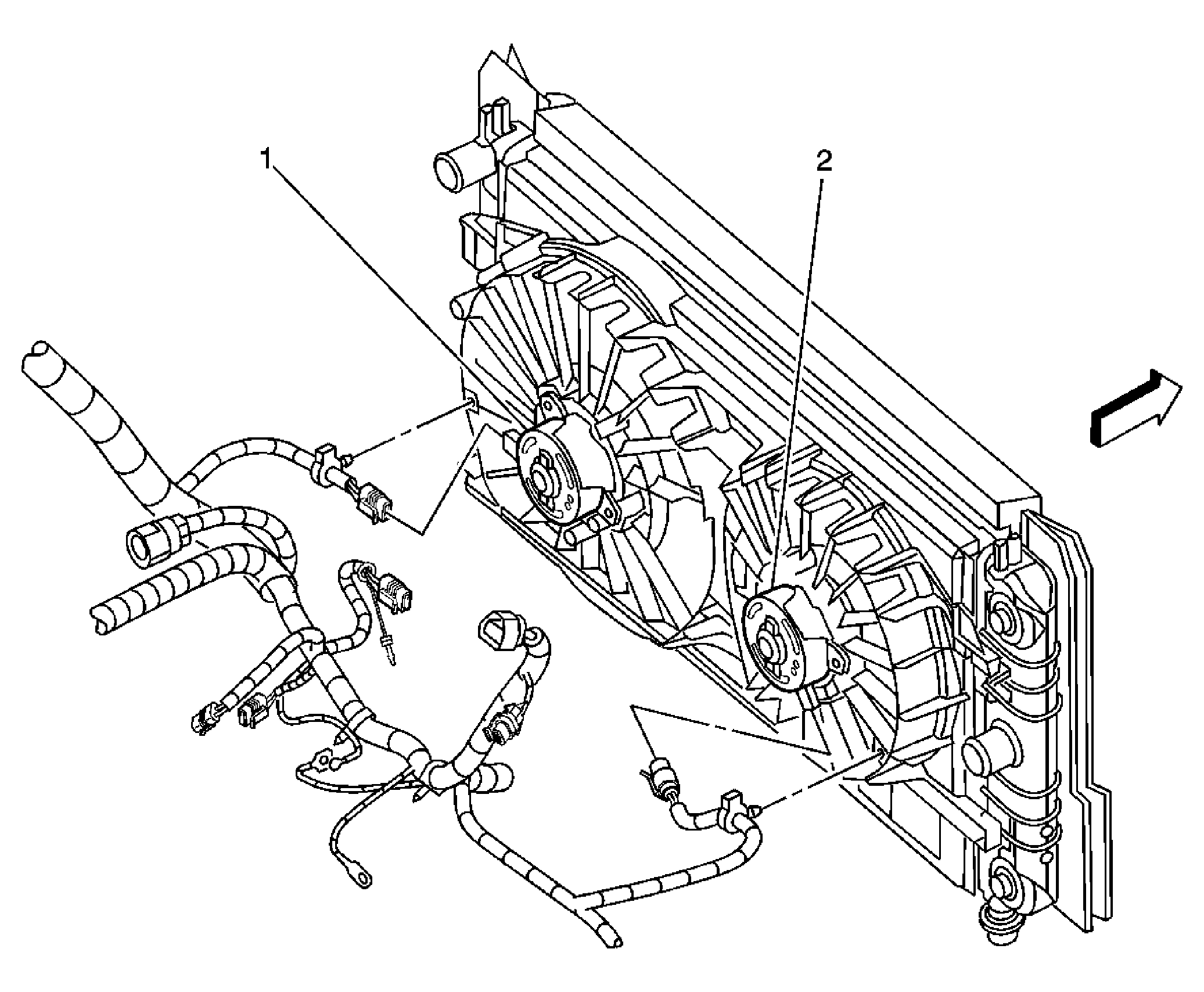

Fig 5: Cooling System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan - Left
2	Engine Cooling Fan - Right

Fig 6: Left Front Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Fluid Pump
3	Horn Assembly

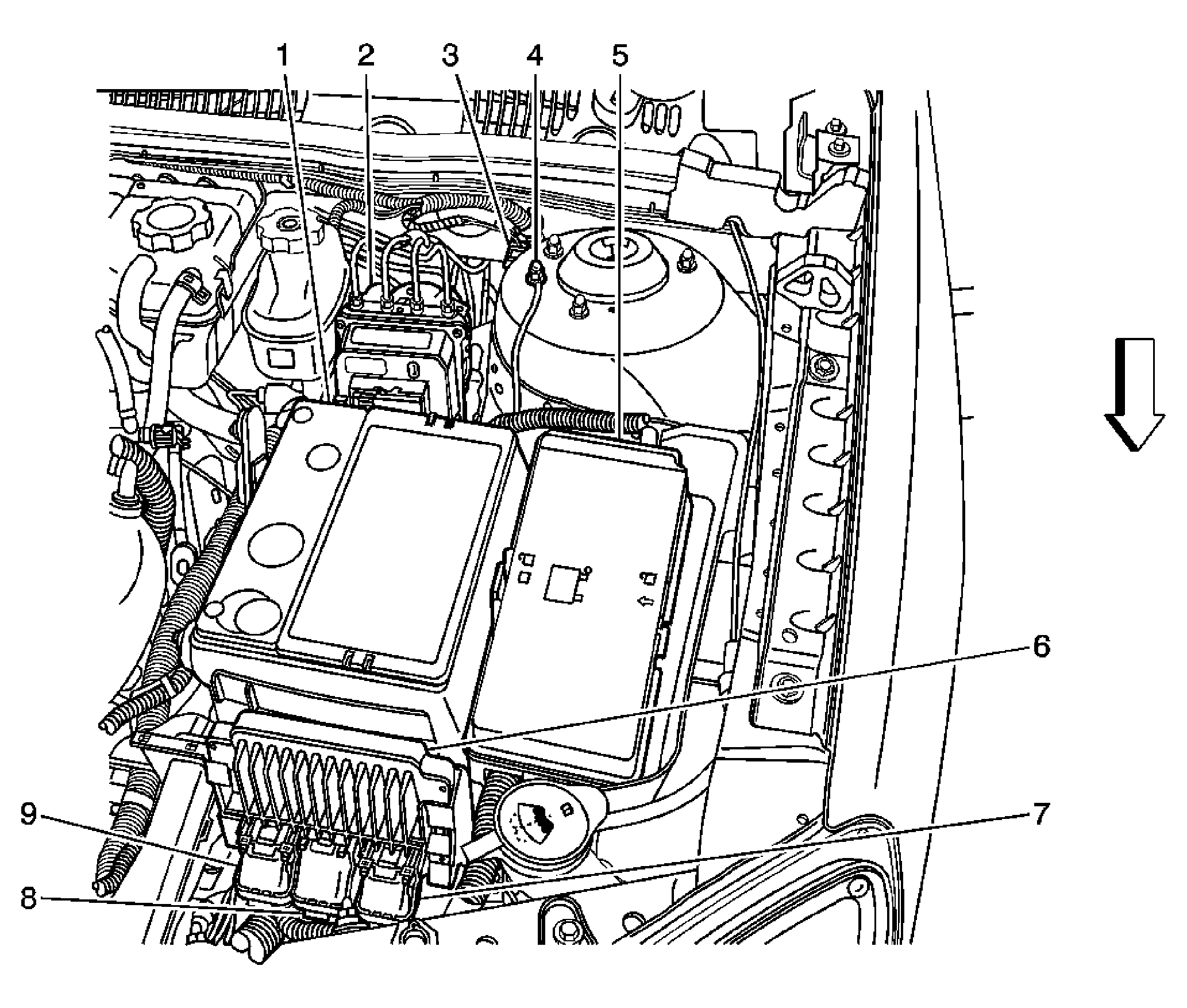

Fig 7: Left Rear Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Electronic Brake Control Module (EBCM)
3	X101
4	G103
5	Fuse Block - Underhood
6	Engine Control Module (ECM)
7	Engine Control Module (ECM) X3
8	Engine Control Module (ECM) X2
9	Engine Control Module (ECM) X1

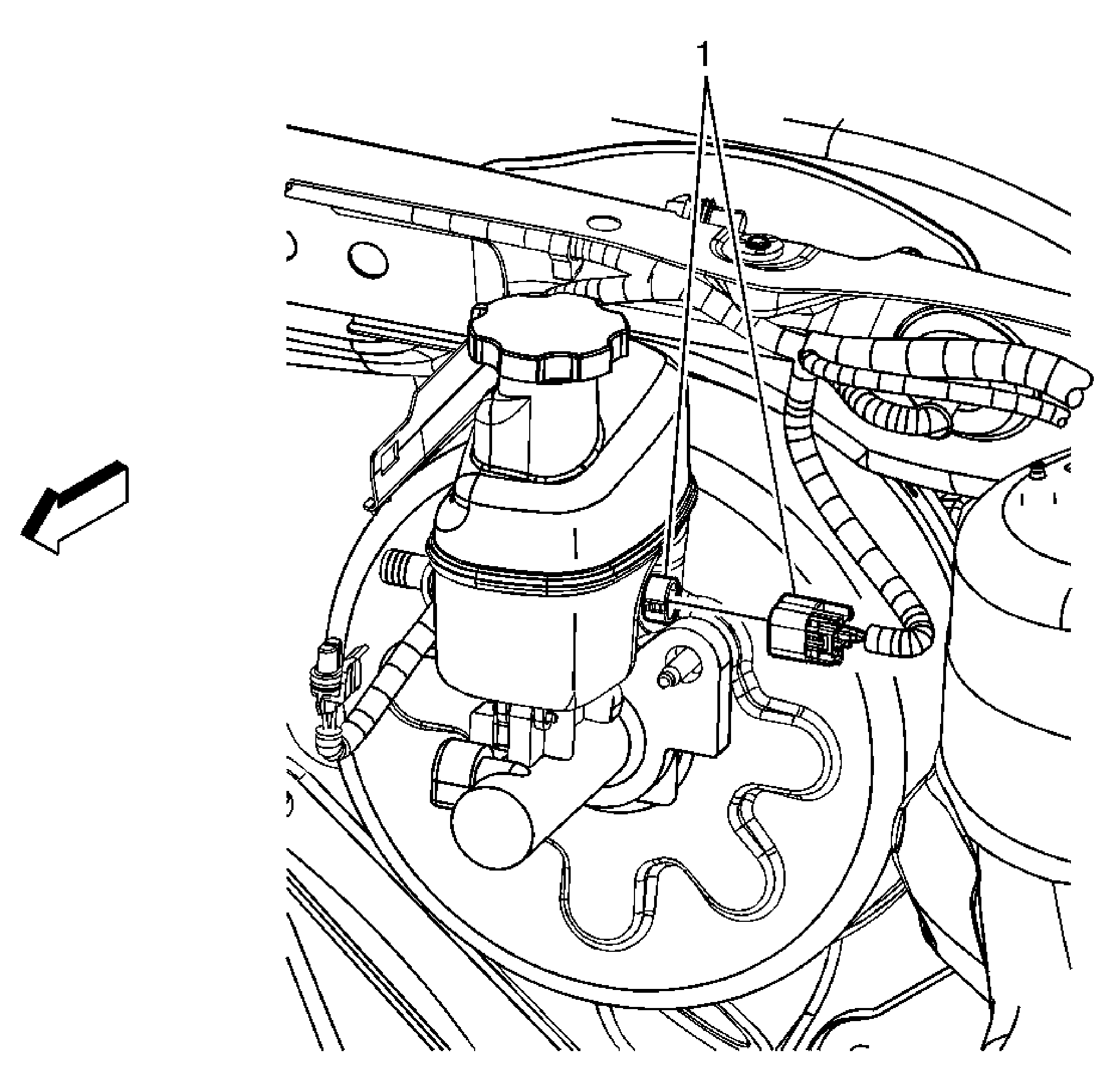

Fig 8: Upper Left Rear Engine Compartment Components (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch

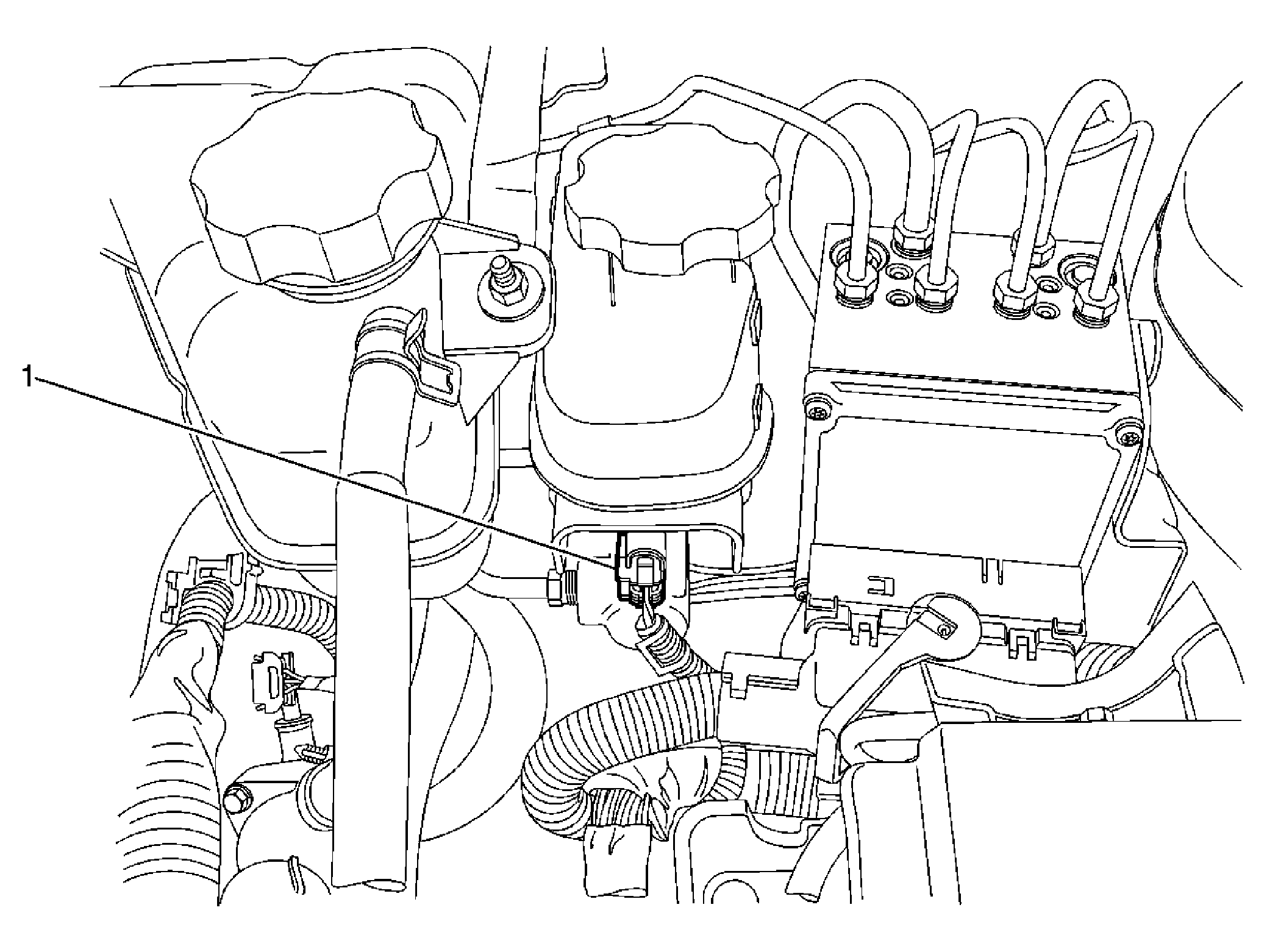

Fig 9: Upper Left Rear Engine Compartment Components (without LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch

Fig 10: Rear Center Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

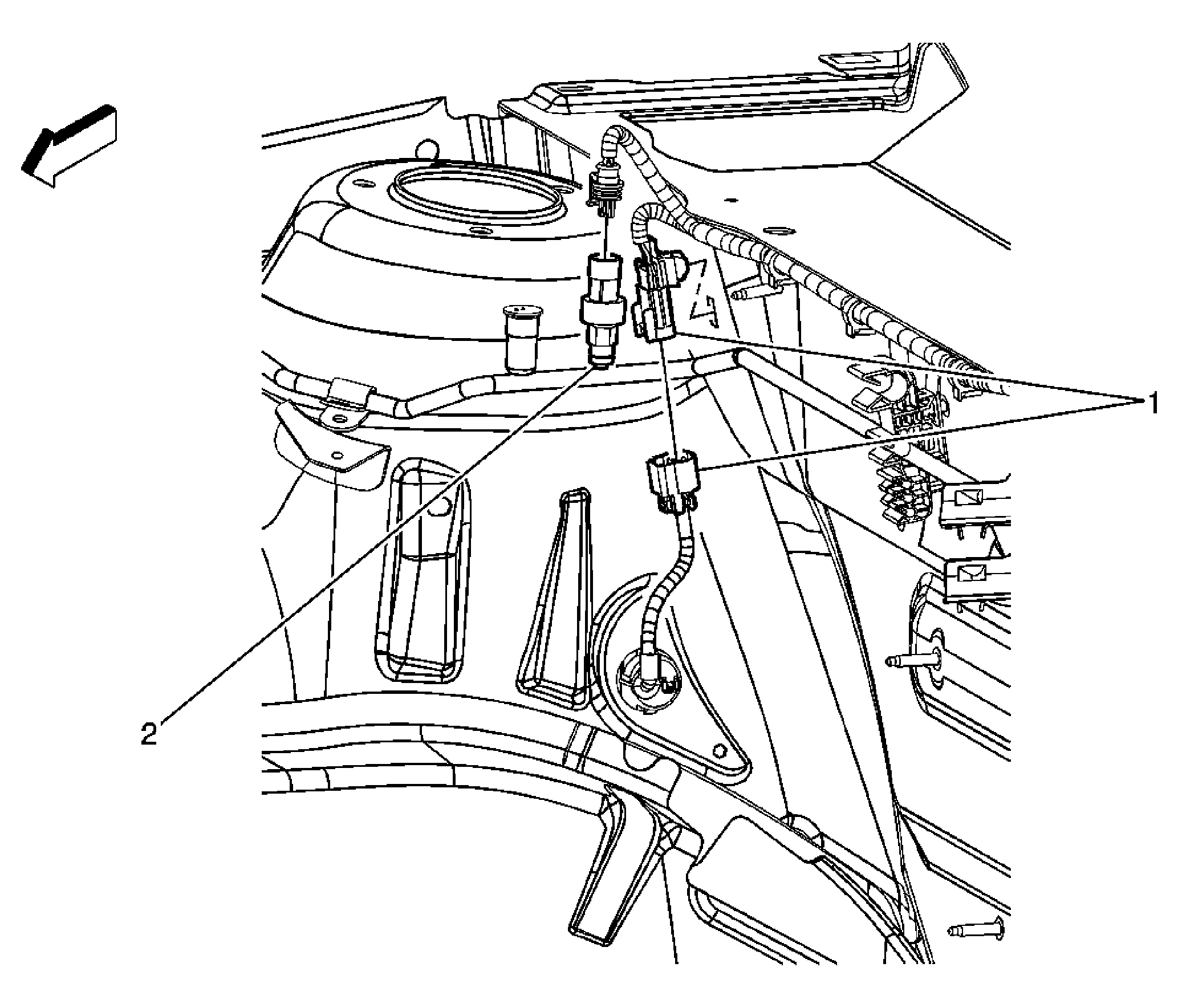

Fig 11: Right Rear Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X102
2	A/C Refrigerant Pressure Sensor (C68)
