Front Side Door Window Channel Replacement

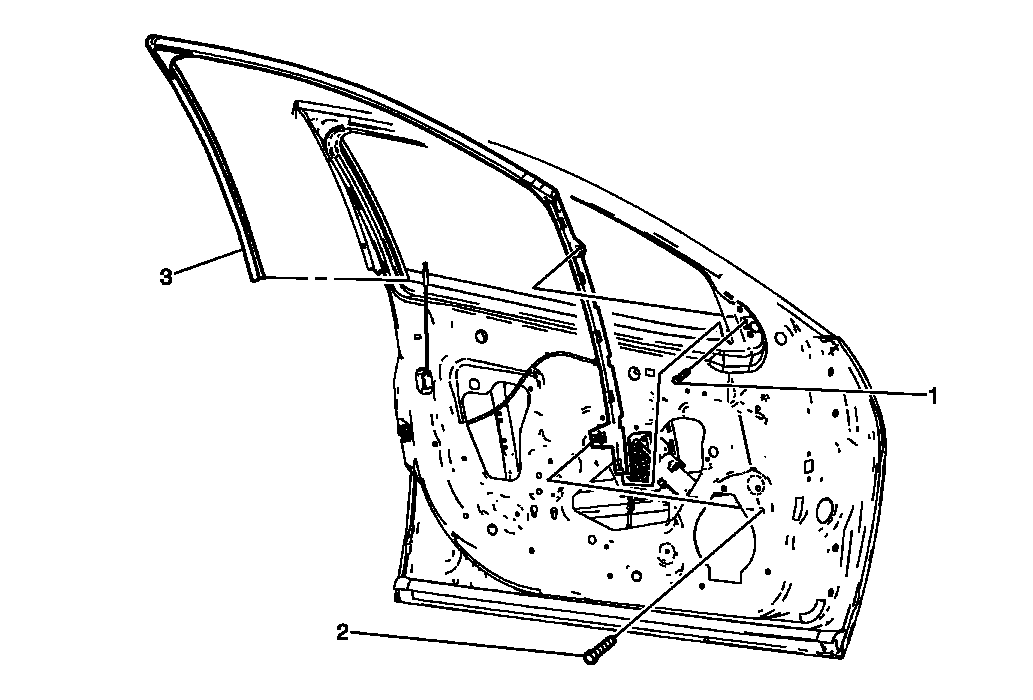

Fig 1: View OF Front Side Door Window Channel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement (Driver) or Front Side Door Trim Panel Replacement (Passenger) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement (Coupe and Convertible) or Front Side Door Water Deflector Replacement (Sedan) . Remove the front door outer belt sealing strip. Refer to Front Side Door Window Belt Outer Sealing Strip Replacement (Coupe and Convertible) or Front Side Door Window Belt Outer Sealing Strip Replacement (Sedan) . Remove the front door inner belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement (Sedan) or Front Side Door Window Belt Inner Sealing Strip Replacement (Coupe and Convertible) . Remove the front door window. Refer to Front Side Door Window Replacement (Coupe and Convertible) or Front Side Door Window Replacement (Sedan) .
1	Front Side Door Window Run Channel Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Side Door Window Run Channel Bolt Tighten: 10 N.m (89 lb in)
3	Front Door Window Run Channel Tip: Pull the run channel from the window frame to remove.
