Junction Block X3

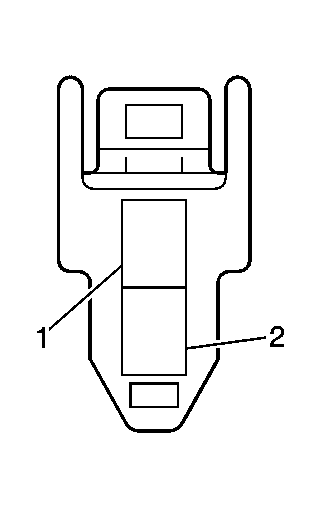

Fig 1: Junction Block X3 Connector End View
GM2037172Courtesy of GENERAL MOTORS CORP.
Junction Block X3

Pin Wire Circuit Function
1 0.35 BK - High Speed GMLAN Serial Data Bus (+)
2 0.35 WH - High Speed GMLAN Serial Data Bus (-)
Connector Part Information
  • OEM: 90980-12355
  • Service: N/A
  • Description: 2-Way F (WH)
