Junction Block X2

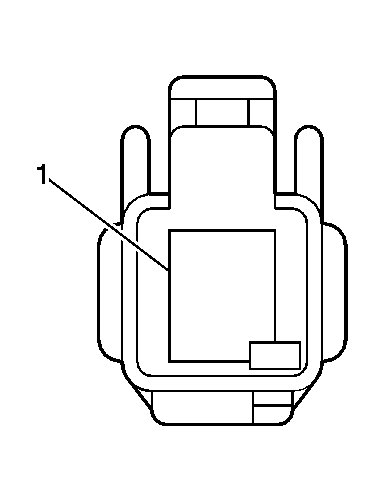

Fig 1: Junction Block X2 Connector End View
GM2001960Courtesy of GENERAL MOTORS CORP.
Junction Block X2

Pin Wire Circuit Function
1 0.5 WH/BK - Ground
Connector Part Information
  • OEM: 90980-10871
  • Service: N/A
  • Description: 1-Way F (WH)
