Fuse Block - I/P X9

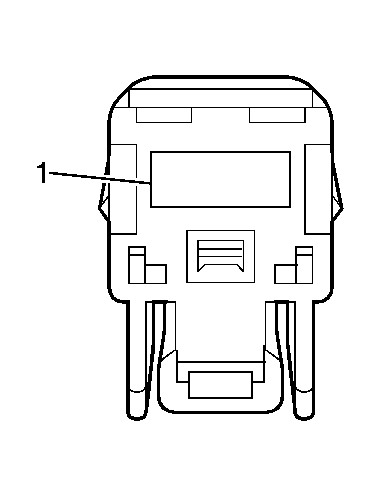

Fig 1: Fuse Block - I/P X9 Connector End View
GM2043522Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X9

Pin Wire Circuit Function
1 15 WH - Battery Positive Voltage
Connector Part Information
  • OEM: 90980-11775
  • Service: N/A
  • Description: 1-Way F (WH)
