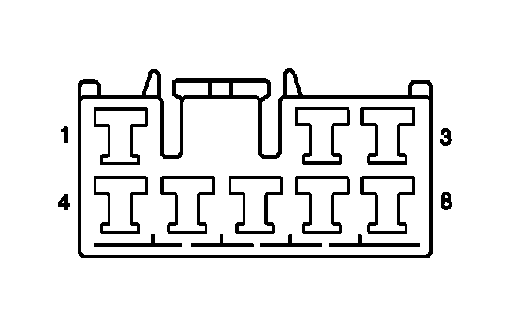

Fuse Block - I/P X8
Fuse Block - I/P X8
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 RD | - | Battery Positive Voltage |
| 2 | 2 BK | - | Rear Window Defogger Control |
| 3 | 0.35 D-GN | - | Ignition Voltage |
| 4 | 0.75 YE | - | Ignition Voltage |
| 5 | 2 D-BU | - | Ignition Voltage |
| 6 | - | - | Not Used |
| 7 | 3 BN | - | Blower Motor Control |
| 8 | - | - | Not Used |
Connector Part Information
|
