Fuse Block - I/P X6

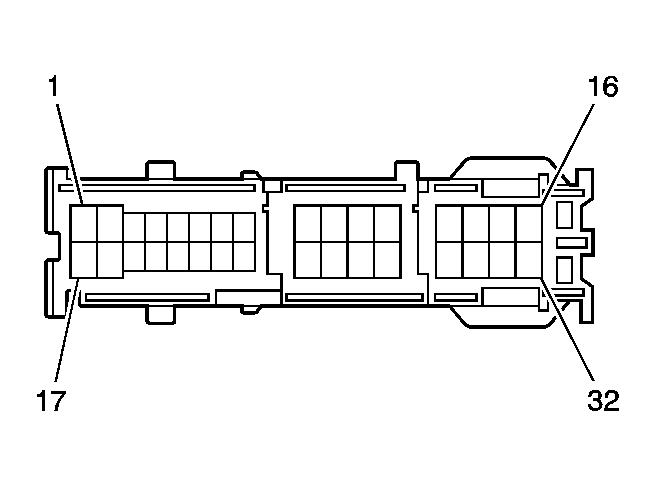

Fig 1: Fuse Block - I/P X6 Connector End View

GM2043520

Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P X6

Pin	Wire	Circuit	Function
1	0.35 VT	-	Vehicle Speed Sensor Signal
2	-	-	Not Used
3	0.35 D-GN	-	Park Lamp Control
4	0.35 BN	-	Battery Positive Voltage
5	0.35 L-GN	-	Horn Relay Control
6-7	-	-	Not Used
8	0.35 D-GN	-	Low Speed Serial Data
9-13	-	-	Not Used
14	0.5 WH/BK	-	Ground
15	-	-	Not Used
16	0.5 BK	-	Ignition Voltage
17	2 WH/BK	-	Ground
18	-	-	Not Used
19	0.35 YE	-	Right Rear Door Ajar Switch Signal (AU3/AU4)
20	0.35 BG	-	Passenger Door Ajar Switch Signal (AU3/AU4)
21	0.35 BK	-	Ignition Voltage
22	-	-	Not Used
23	0.35 D-BU	-	Unlock Warning Switch Signal (AU3/AU4)
24-25	-	-	Not Used
26	0.35 D-BU	-	Unlock Warning Switch Signal (AU3/AU4)
27	-	-	Not Used
28	0.5 WH/BK	-	Ground
29	-	-	Not Used
30	0.5 WH/BK	-	Ground
31	0.35 WH	-	Low Speed Serial Data
32	-	-	Not Used

Connector Part Information

OEM: 90980-12384
Service: N/A
Description: 32-Way F (WH)
