Fuse Block - I/P X3

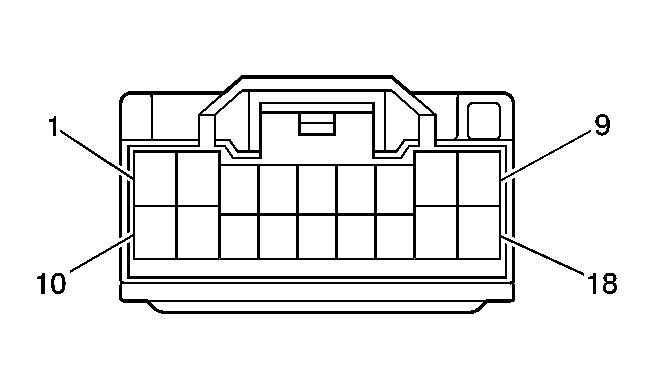

Fig 1: Fuse Block - I/P X3 Connector End View

GM2043519

Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P X3

Pin	Wire	Circuit	Function
1-3	-	-	Not Used
4	0.22 VT	-	Lock Switch Signal (AU3/AU4)
5	0.22 BG	-	Unlock Door Signal (AU3/AU4)
6	0.35 D-BU	-	Passenger Door Key Switch Unlock Signal (AU3/AU4)
7	0.22 BK	-	Driver Door Key Switch Lock Signal (AU3/AU4)
8	1.25 BG	-	Driver Door Lock Motor Lock Control (AU3/AU4)
9	1.25 D-GN	-	Right Rear Door Lock Motor Unlock Control (AU3/AU4)
10	1 YE	-	Ignition Voltage
11	2 WH	-	Ignition Voltage
12	0.35 RD	-	Battery Positive Voltage
13	0.22 VT	-	Lock Switch Signal (AU3/AU4)
14	0.22 BG	-	Unlock Switch Signal (AU3/AU4)
15	0.22 D-BU	-	Passenger Door Key Switch Unlock Signal (AU3/AU4)
16	0.22 BK	-	Passenger Door Key Switch Lock Signal (AU3/AU4)
17	1.25 BG	-	Right Rear Door Lock Motor Lock Control (AU3/AU4)
18	1.25 D-GN	-	Passenger Door Lock Motor Unlock Control (AU3/AU4)

Connector Part Information

OEM: 90980-11973
Service: N/A
Description: 18-Way F (WH)
