Fuse Block - I/P X2

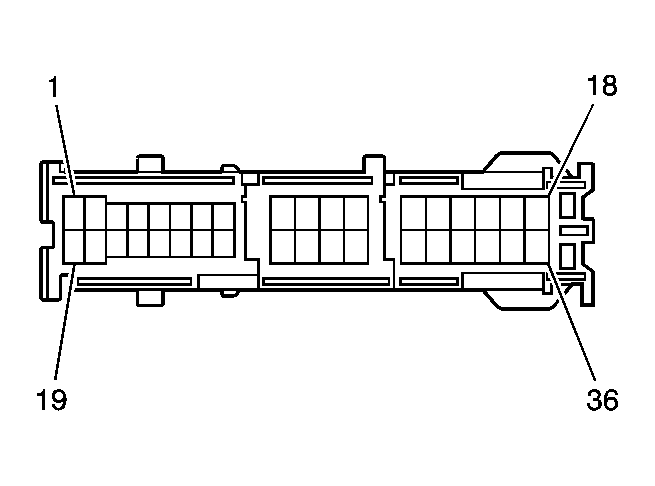

Fig 1: Fuse Block - I/P X2 Connector End View

GM2043523

Courtesy of GENERAL MOTORS CORP.

Fuse Block - I/P X2

Pin	Wire	Circuit	Function
1	-	-	Not Used
2	0.85 D-BU	-	Windshield Washer Pump Control
3-8	-	-	Not Used
9	0.3 BK	-	Ignition Voltage
10	0.3 BK	-	Fuel Pump Relay Control
11	1.25 BK	-	Ignition Voltage
12	0.85 D-BU	-	Stop Lamp Control
13	0.3 RD/D-GN	-	Battery Positive Voltage
14	0.5 YE	-	Left Turn Signal Lamp Control
15	0.5 D-GN	-	Park Lamp Control
16	-	-	Not Used
17	0.5 RD	-	Backup Lamp Control
18	0.85 WH	-	Battery Positive Voltage
19	0.5 D-GN	-	Ignition Voltage
20	-	-	Not Used
21	0.5 D-BU/WH	-	Stop Lamp Control
22	-	-	Not Used
23	0.5 PK	-	Low Speed Serial Data
24	0.3 D-BU/BK	-	Ignition Voltage
25	0.3 WH/D-BU	-	Battery Positive Voltage
26-27	-	-	Not Used
28	0.3 L-GN	-	Horn Relay Control
29	-	-	Not Used
30	0.5 WH	-	Battery Positive Voltage
31	0.5 D-BU/RD	-	Right Turn Signal Lamp Control
32	0.5 D-GN	-	Instrument Panel Dimming Voltage
33	0.5 D-GN	-	Park Lamp Control
34	0.5 YE	-	Charge Indicator Control
35	-	-	Not Used
36	2 D-BU	-	Ignition Voltage

Connector Part Information

OEM: 90980-12383
Service: N/A
Description: 36-Way F (WH)
