Fuse Block - I/P X14

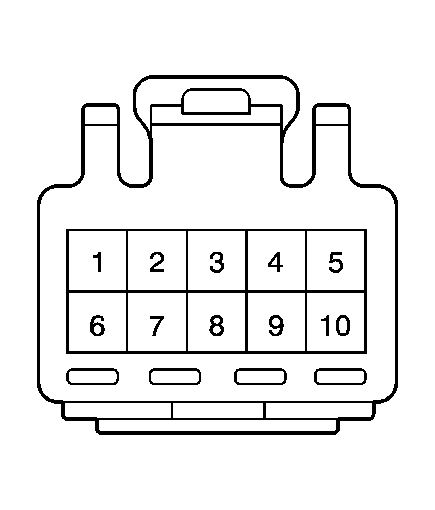

Fig 1: Fuse Block - I/P X14 Connector End View
GM1304417Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 90980-11923
  • Service: N/A
  • Description: 10-Way F (WH)
Fuse Block - I/P X14

Pin Wire Function
1-5 - Not Used
6 0.35 D-GN Ignition Voltage
7 0.35 D-GN Ignition Voltage
8 0.35 D-GN Ignition Voltage
9 0.35 D-GN Instrument Panel Dimming Low Control
10 0.35 D-GN Ignition Voltage
