Fuse Block - I/P X10

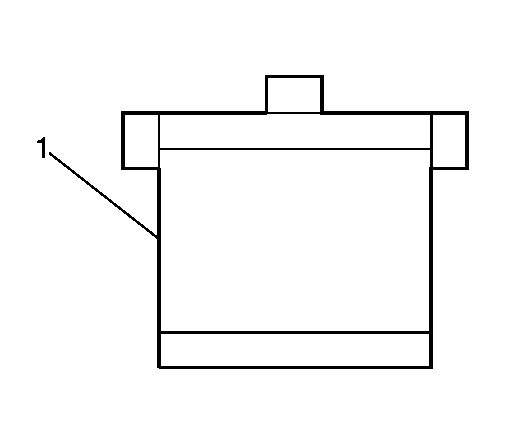

Fig 1: Fuse Block - I/P X10 Connector End View
GM2043521Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X10

Pin Wire Circuit Function
1 3 D-BU - Battery Positive Voltage
Connector Part Information
  • OEM: 90980-11259
  • Service: N/A
  • Description: 1-Way F (WH)
