Fuse Block - I/P X1

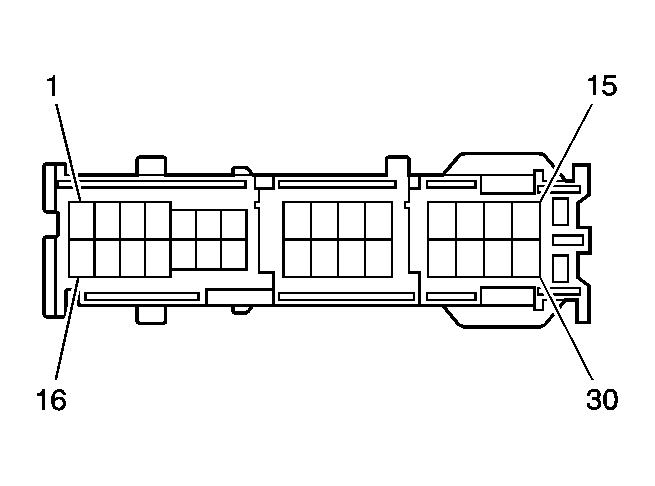

Fig 1: Fuse Block - I/P X1 Connector End View
GM2043524Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X1

Pin Wire Circuit Function
1 1 PK - Ignition Voltage
2 - - Not Used
3 1.25 BG - Left Rear Door Lock Motor Lock Control (AU3/AU4)
4 1.25 D-GN - Left Rear Door Lock Motor Unlock Control (AU3/AU4)
5-6 - - Not Used
7 0.35 L-GN - Liftgate Ajar Switch Signal
8 1 BK - Ignition Voltage
9 0.5 D-BU - Stop Lamp Control
10 0.35 D-GN - Tail Lamp Relay Supply Voltage
11 - - Not Used
12 0.5 D-BU - Stop Lamp Control
13-18 - - Not Used
19 1 BG - Ignition Voltage
20 - - Not Used
21 0.5 VT - Driver Door Ajar Switch Signal (AU3/AU4)
22-24 - - Not Used
25 1 VT - Ignition Voltage
26 - - Not Used
27 0.5 YE - Left Turn Signal Lamp Control
28 0.5 L-BU - Right Turn Signal Lamp Control
29 0.35 D-GN - Park Lamp Control
30 0.5 RD - Backup Lamp Control
Connector Part Information
  • OEM: 90980-12385
  • Service: N/A
  • Description: 30-Way F (WH)
