Installation Procedure

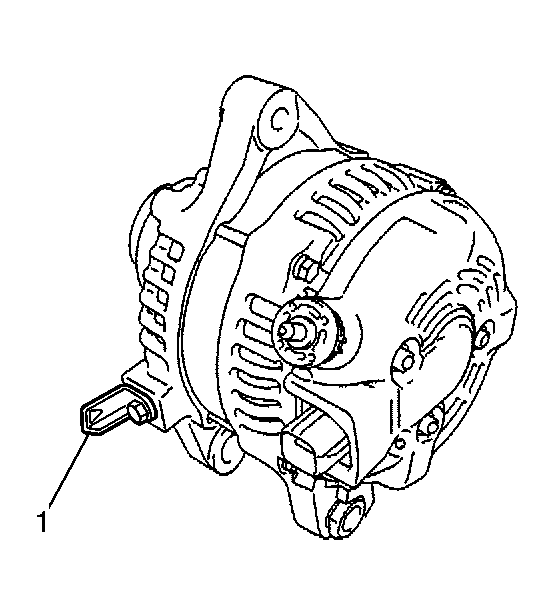

    Fig 1: View Of Generator Wire Harness Bracket
    GM2014405Courtesy of GENERAL MOTORS CORP.
  1. Install generator assembly.
    2. NOTE: Refer to BATTERY DISCONNECT WARNING .
  2. Install the wire harness clamp bracket with the bolt.

    Tighten:  Tighten to 8.4 N.m (74 lb in).

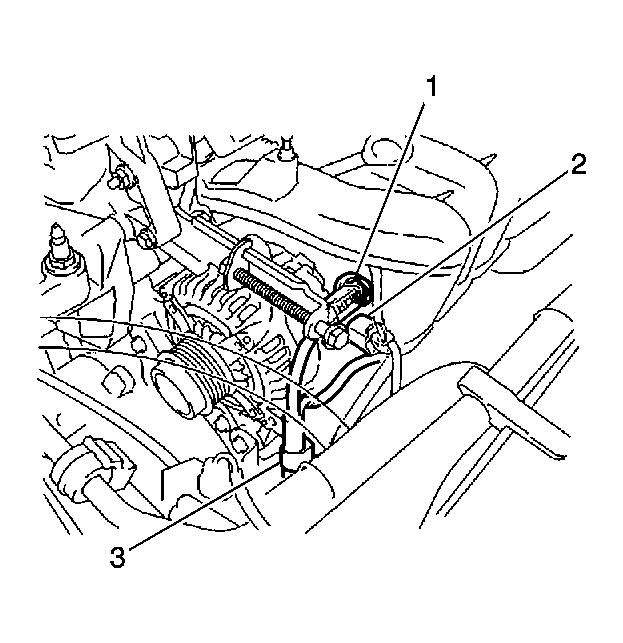

    3. Fig 2: View Of Generator Mounting & Bolts
    GM2014399Courtesy of GENERAL MOTORS CORP.
  3. Temporarily install the generator assembly with the 2 bolts.

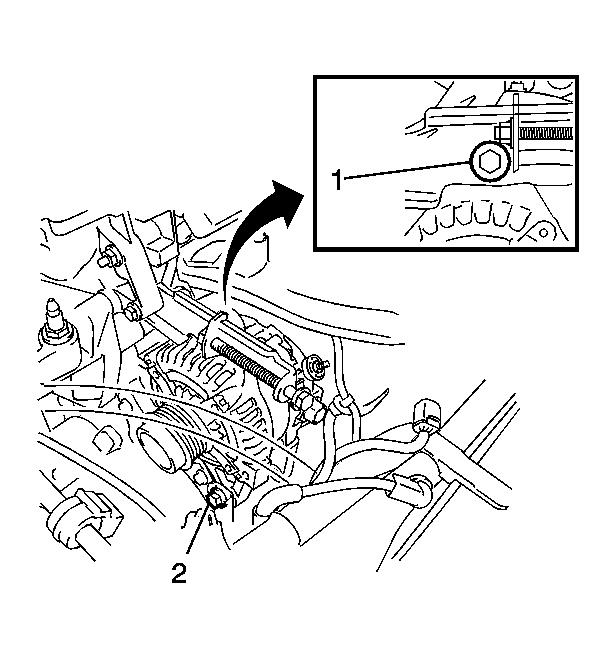

    4. Fig 3: View Of Generator Wire Harness To Terminals
    GM2014402Courtesy of GENERAL MOTORS CORP.
  4. Install the generator connector and wire harness clamp.
  5. Install the wire harness to terminal B with the nut and install the terminal cap.

    Torque:  9.8 N.m (87 lb in).

  6. Install the v-ribbed belt. Refer to Drive Belt Replacement
  7. Install the engine under cover right hand side.
    8. NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
  8. Connect cable to negative battery terminal.
