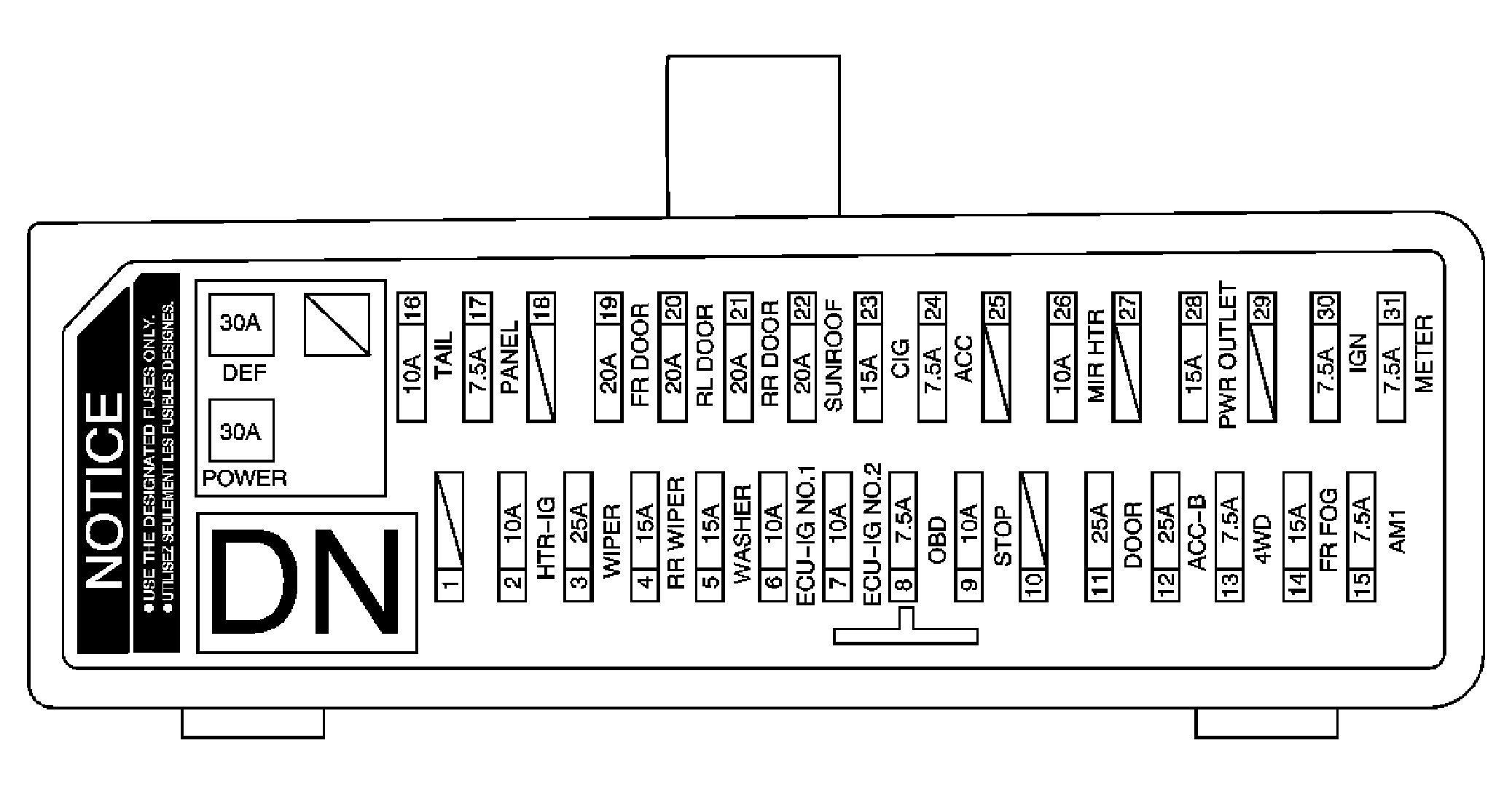

Fuse Block - I/P Label
FUSE BLOCK - I/P LABEL FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | HTR-IG Fuse | 10A | HVAC Control Module |
| 3 | WIPER Fuse | 25A | Windshield Wiper Motor, Windshield Wiper Switch |
| 4 | RR WIPER Fuse | 15A | Rear Window Wiper Motor, Rear Window Washer Fluid Pump |
| 5 | WASHER Fuse | 15A | Windshield Washer Fluid Pump |
| 6 | ECU-IG No. 1 Fuse | 10A | Body Control Module (BCM) |
| 7 | ECU-IG No. 2 Fuse | 10A | Backup Lamp Switch (M/T), Generator, Park Neutral Position (PNP) Switch (A/T) |
| 8 | OBD Fuse | 7.5A | Data Link Connector (DLC) |
| 9 | STOP Fuse | 10A | Stop Lamp Switch |
| 10 | - | - | Not Used |
| 11 | DOOR Fuse | 25A | Body Control Module (BCM) |
| 12 | - | - | Not Used |
| 13 | 4WD Fuse | 7.5A | Transfer Case Control Module (F46) |
| 14 | FR FOG Fuse | 15A | FR Fog Relay (T96) |
| 15 | AM1 Fuse | 10A | Ignition Switch |
| 16 | TAIL Fuse | 10A | Combination Meter Assembly, License Lamp - Left, License Lamp - Right, Park Lamp - Left Front, Park Lamp - Right Front, Powertrain Control Module (PCM), Tail Lamp - Left, Tail Lamp - Right |
| 17 | PANEL Fuse | 7.5A | Automatic Transmission Shift Level, Driver Information Center (DIC), Cigar Lighter, Hazard Switch, HVAC Control Module, Radio, Steering Wheel Control Switch - Left, Steering Wheel Control Switch - Right |
| 18 | - | - | Not Used |
| 19 | FR DOOR Fuse | 20A | Power Window Switch - Driver, Sunroof Module (A31/CF5) |
| 20 | RL DOOR Fuse | 20A | Power Window Switch - Left Rear (A31) |
| 21 | RR DOOR Fuse | 20A | Power Window Switch - Right Rear (A31) |
| 22 | SUNROOF Fuse | 20A | Sunroof Module (CF5) |
| 23 | CIG Fuse | 15A | Cigar Lighter |
| 24 | ACC Fuse | 7.5A | Clock, Body Control Module (BCM) |
| 25 | - | - | Not Used |
| 26 | MIR HTR Fuse | 10A | Powertrain Control Module (PCM) |
| 27-29 | - | - | Not Used |
| 30 | IGN Fuse | 7.5A | Fuel Pump Relay, Powertrain Control Module (PCM), Stop Lamp Switch, Theft Deterrent Module, Inflatable Restraint Passenger Presence Module, Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 31 | METER Fuse | 7.5A | Combination Meter Assembly |
| Important: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block. | |||
| DEF PCB Relay | Powertrain Control Module (PCM), Radio Rear Window Defogger Capacitor, Rear Window Defogger Grid | ||
| PWR PCB Relay | Sunroof Control Module, Window Switch - Driver, Window Switch - Left Rear, Window Switch - Passenger, Window Switch - Right Rear | ||
| T - LP PCB Relay | Accessory AC/DC Power Control Module, Automatic Transmission Shift Lever Position Indicator, Blower Motor Switch, Cigar Lighter Illumination Lamp, Hazard Warning Switch, HVAC Mode Switch, HVAC Temperature Switch, License Lamp, Park/Turn Signal Lamp - Left, Park/Turn Signal Lamp - Right, Powertrain Control Module (PCM), Tail Lamp - Left, Tail Lamp - Right, Radio, Security Indicator Lamp, Steering Wheel Control Switch - Left, Vehicle Stability Control Module | ||
| C/OPN PCB Fuel Pump Relay | Fuel Pump and Sender Assembly | ||
