Installation Procedure

    NOTE: Refer to Fastener Caution .
    Fig 1: Locating Spark Plugs
    GM2016550Courtesy of GENERAL MOTORS CORP.
  1. Install the 4 spark plugs.

    Tighten:  19 N.m (14 lb ft)

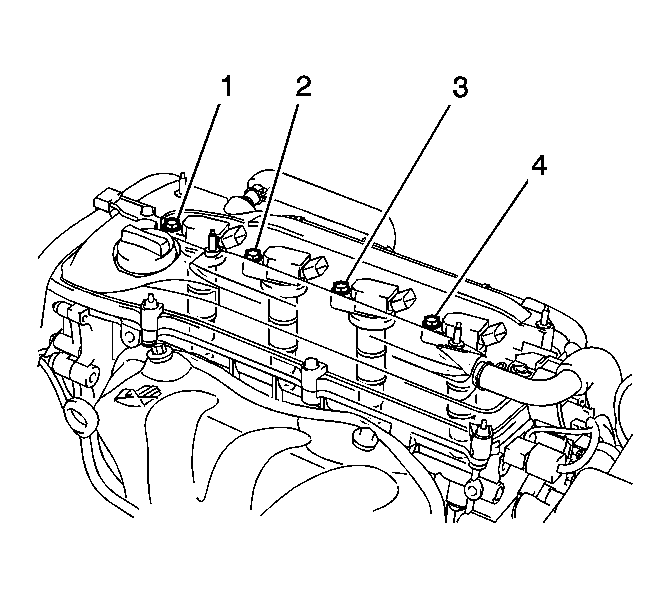

    2. Fig 2: Identifying Ignition Coils Bolts
    GM2016547Courtesy of GENERAL MOTORS CORP.
  2. Install the 4 ignition coils with the 4 bolts.

    Tighten:  9.0 N.m (80 lb in)

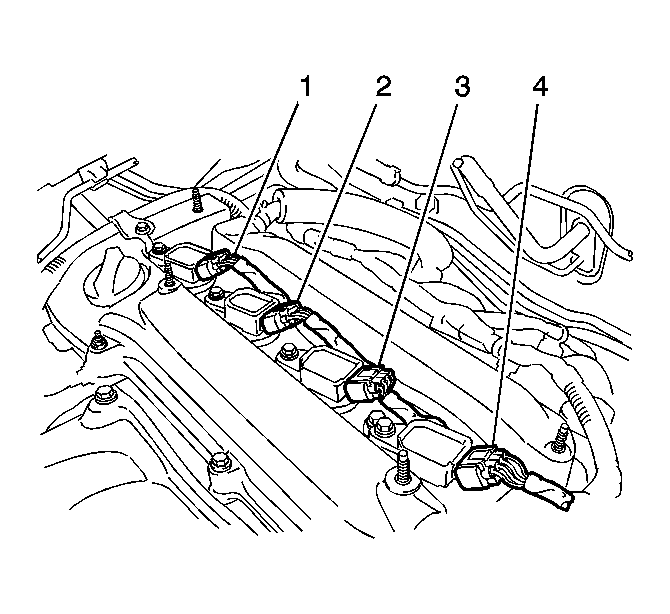

    3. Fig 3: Locating Ignition Coil Connectors
    GM2016546Courtesy of GENERAL MOTORS CORP.
  3. Connect the 4 ignition coil connectors.
  4. Install the engine cover.
