Removal Procedure

  1. Disconnect the heated oxygen sensor connector.
  2. Separate the wire harness grommet.
  3. Remove the heated oxygen sensor for AWD.

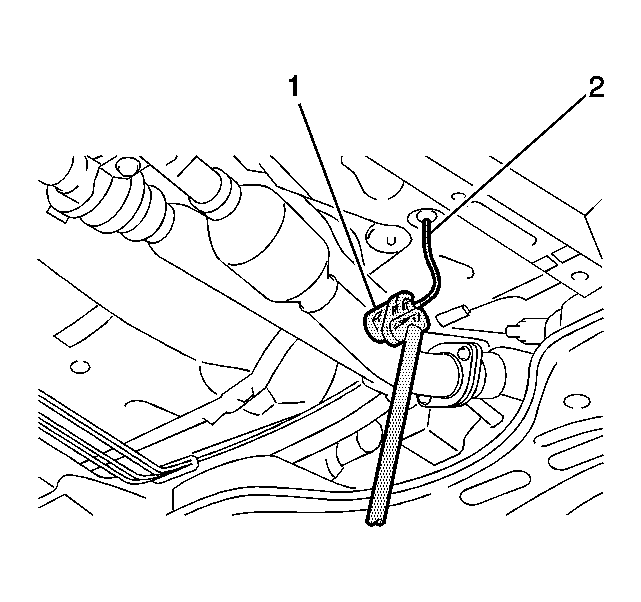

    4. Fig 1: Identifying Heated Oxygen Sensor
    GM2016575Courtesy of GENERAL MOTORS CORP.
  4. Using SST  , remove the heated oxygen sensor.

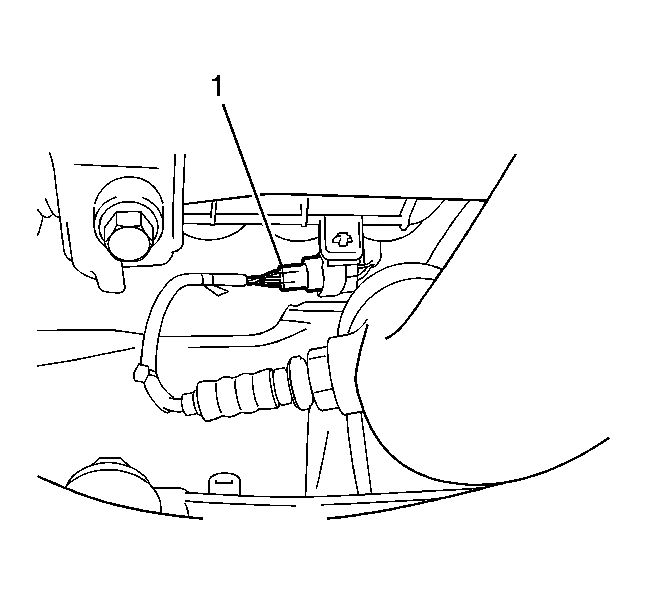

    5. Fig 2: View Of Heated Oxygen Sensor Connector
    GM2016577Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the heated oxygen sensor connector.
  6. Remove the heated oxygen sensor for FWD.

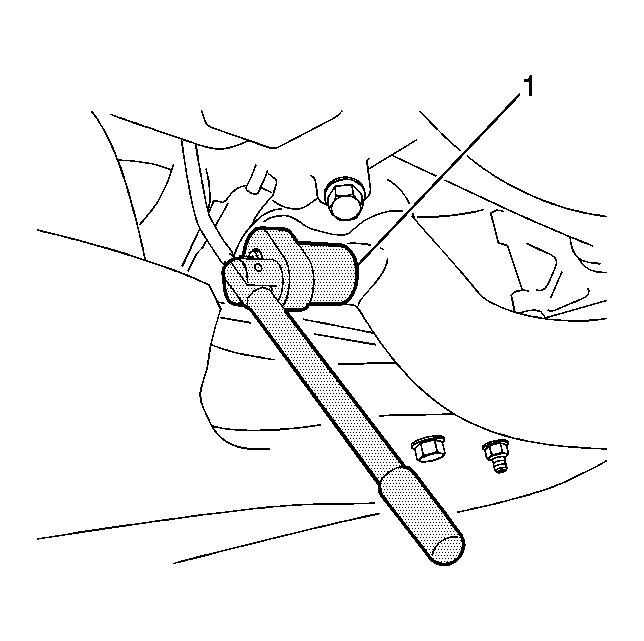

    7. Fig 3: Removing Heated Oxygen Sensor
    GM2016579Courtesy of GENERAL MOTORS CORP.
  7. Using SST  , remove the heated oxygen sensor.
