Installation Procedure

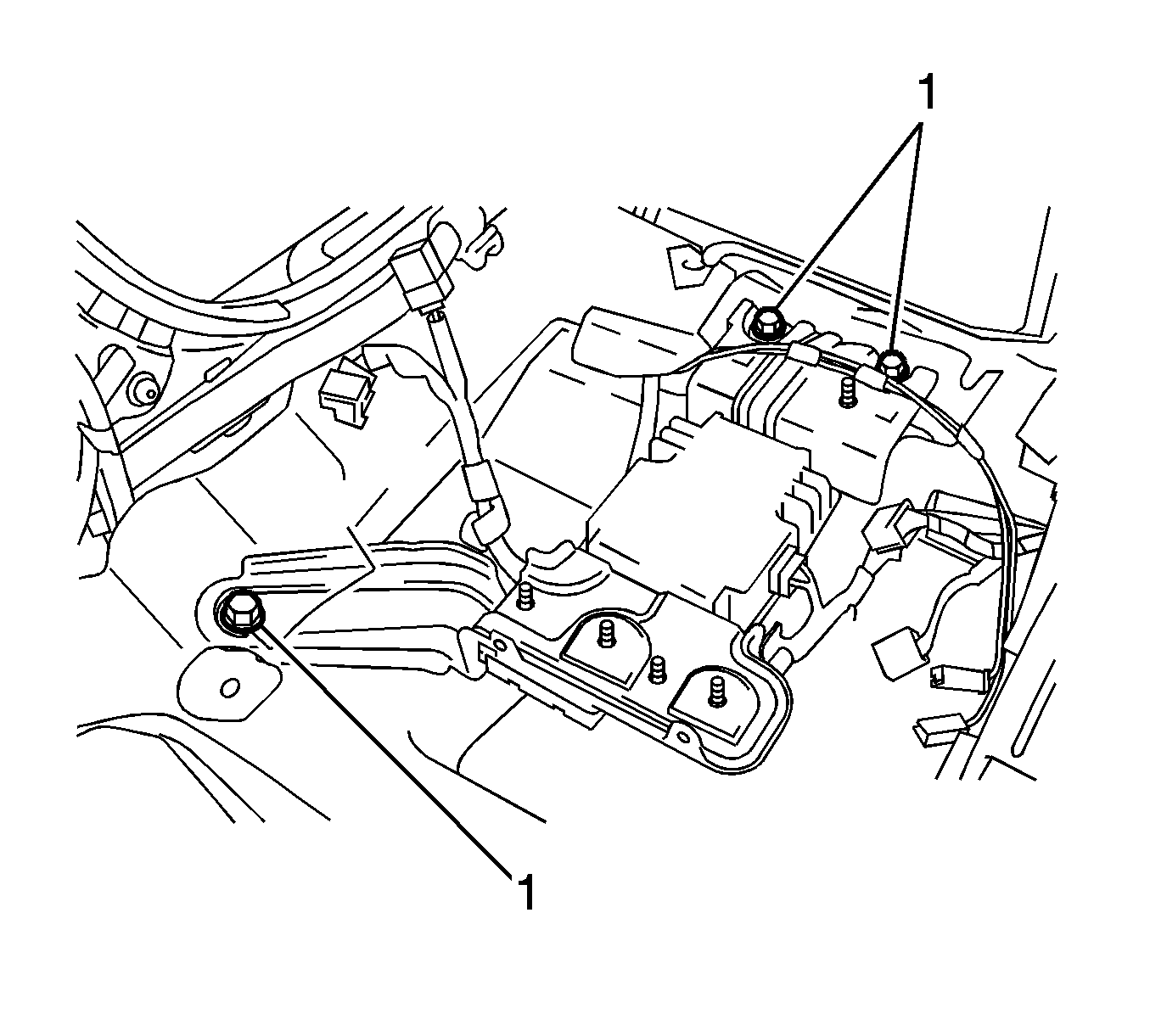

    Fig 1: Removing/Installing Bolts And Voltage Inverter Assembly
    GM2033182Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  1. Install the voltage inverter assembly with the 3 bolts.

    Tighten:  Tighten the bolts to 19 N.m (14 lb ft).

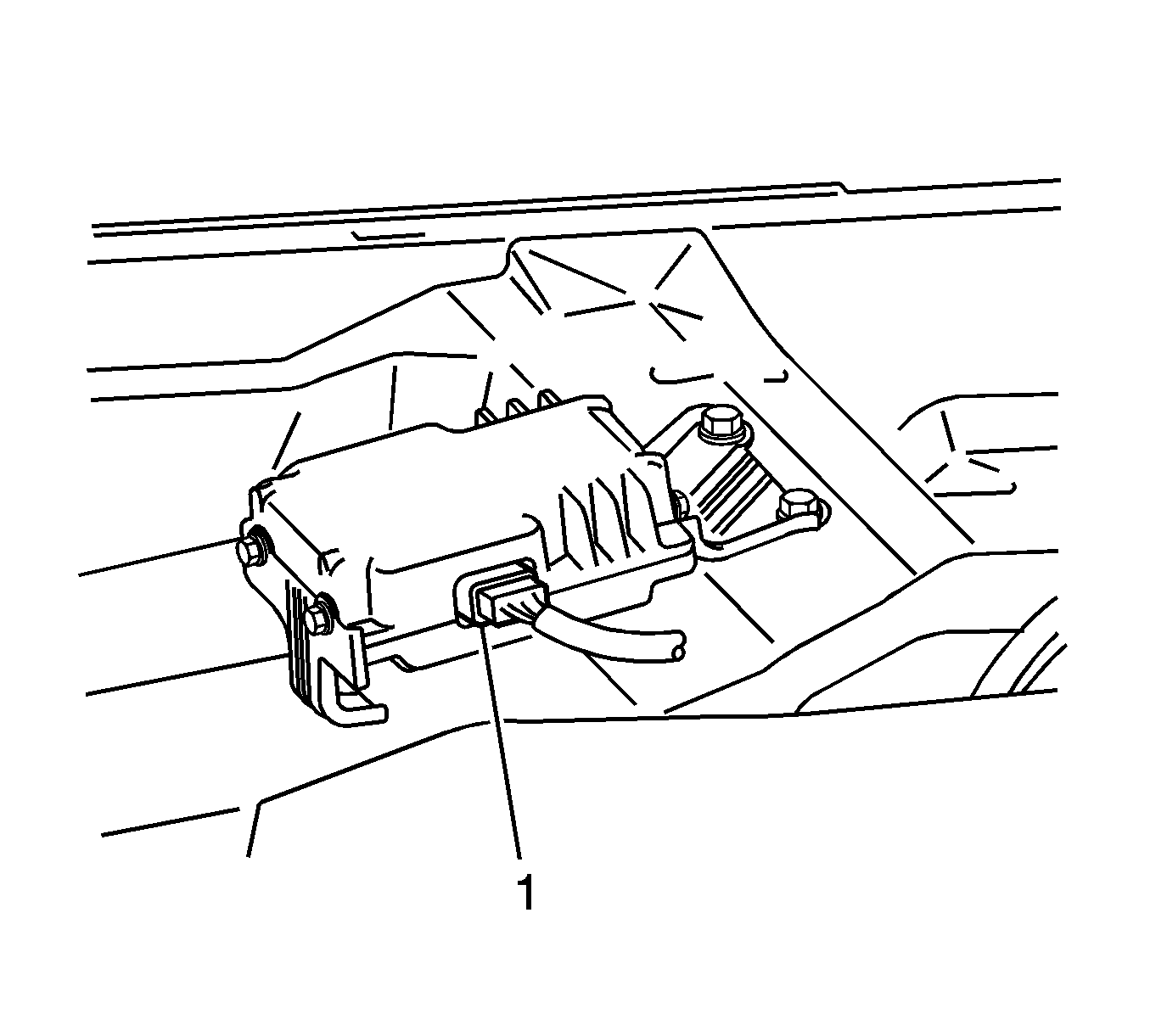

    2. Fig 2: Communication Interface Module
    GM2033184Courtesy of GENERAL MOTORS CORP.
  2. Install the communication interface module. Refer to Communication Interface Module Replacement .
