Installation Procedure

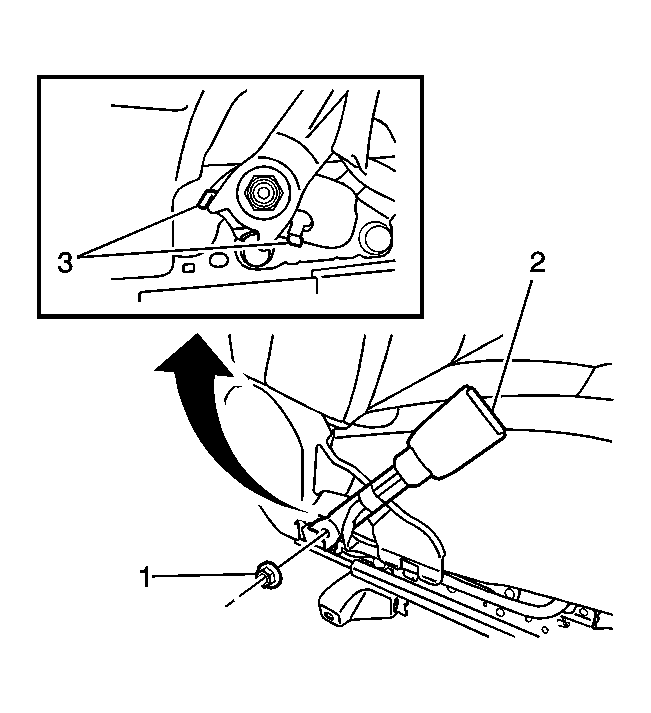

    Fig 1: Identifying Front Seat Belt Buckle, Bolt & Tabs
    GM2023534Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  1. Install the seat belt buckle (2) to the front seat. Secure the buckle with the bolt (1).

    Tighten:  Tighten the front seat belt buckle bolt to 42 N.m (31 lb ft).

  2. Install the inner adjuster finish cover to the front seat.
  3. Connect the seat belt buckle harness connectors.
  4. Install the front seat. Refer to Front Seat Replacement - Bucket .
