Windshield Washer Solvent Container Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

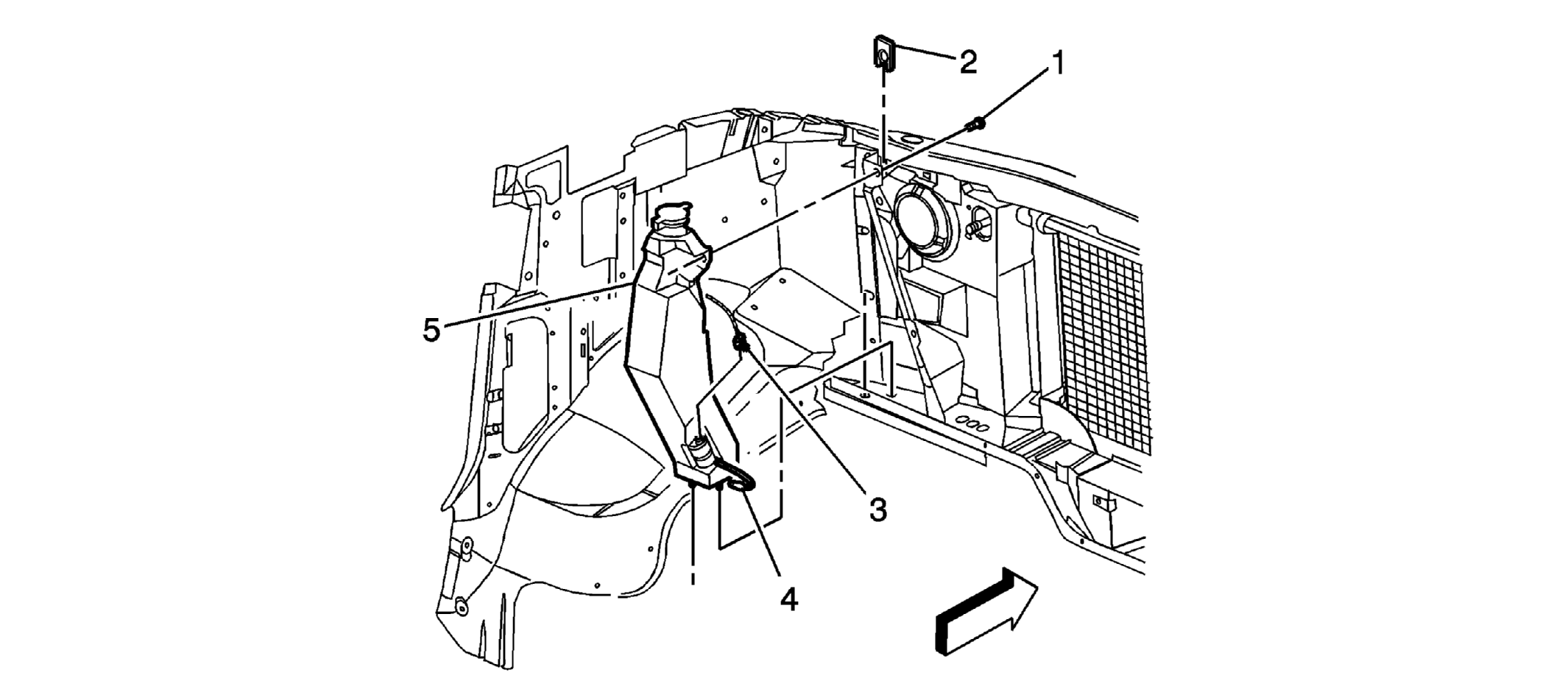

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open and support the hood. Place a clean container under the work area prior to removing the windshield washer pump hose from the pump.
1	Front End Panel Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Windshield Washer Front End Panel Nut
3	Windshield Washer Pump Electrical Connector Tip: Disconnect the electrical connector and position out of the way.
4	Windshield Washer Pump Hose
5	Windshield Washer Solvent Container Tip: Lift the container from the locating holes in the front end lower panel support.
