Instrument Panel Extension Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

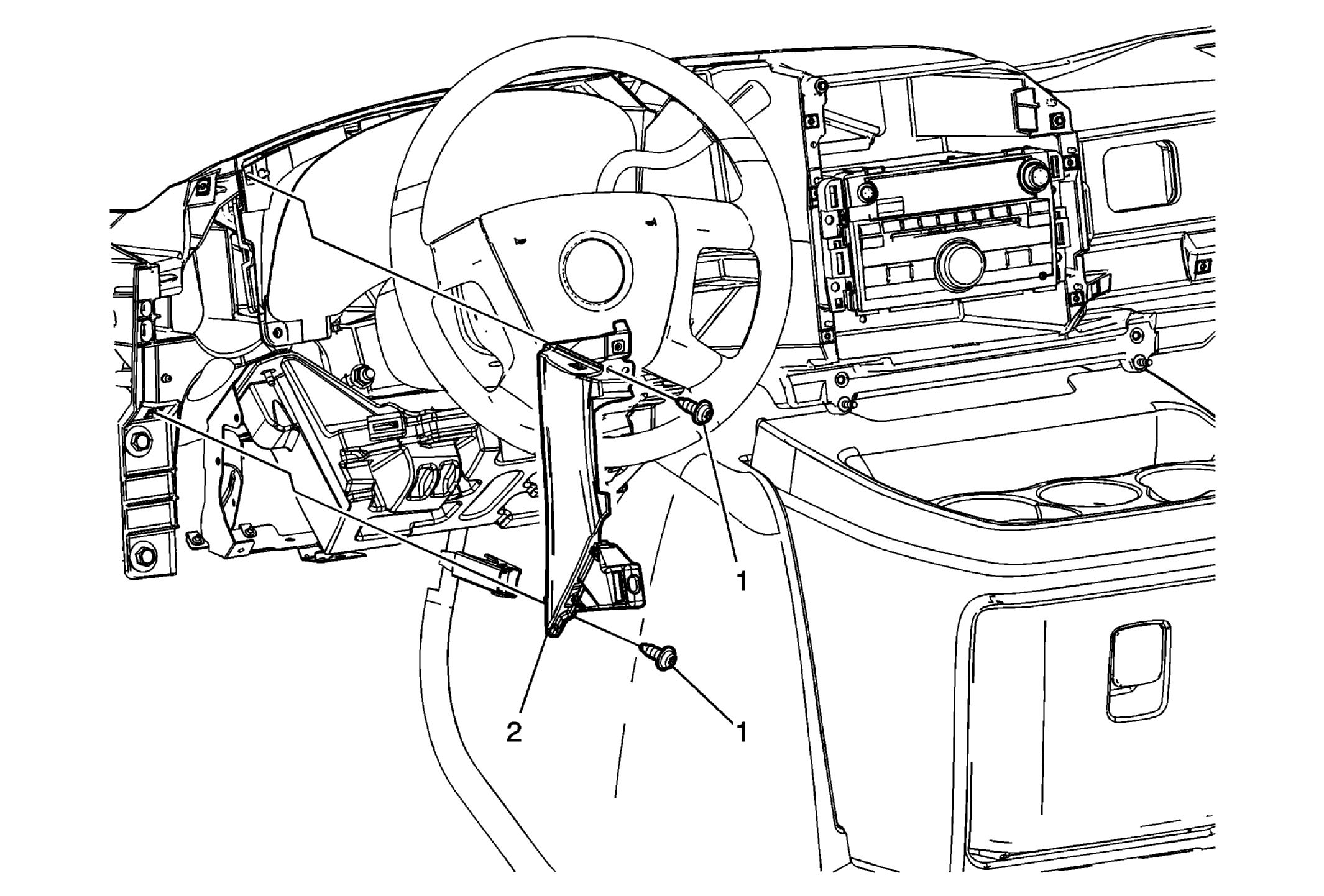

Fig 1: Instrument Panel Extension Trim Plate Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement . Remove the left instrument panel defroster duct screws from the extension panel.
1	Instrument Panel Extension Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Instrument Panel Extension Trim Panel Assembly

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .
Remove the left instrument panel defroster duct screws from the extension panel.

Instrument Panel Extension Panel Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in)

Instrument Panel Extension Trim Panel Assembly
