Tail Lamp Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

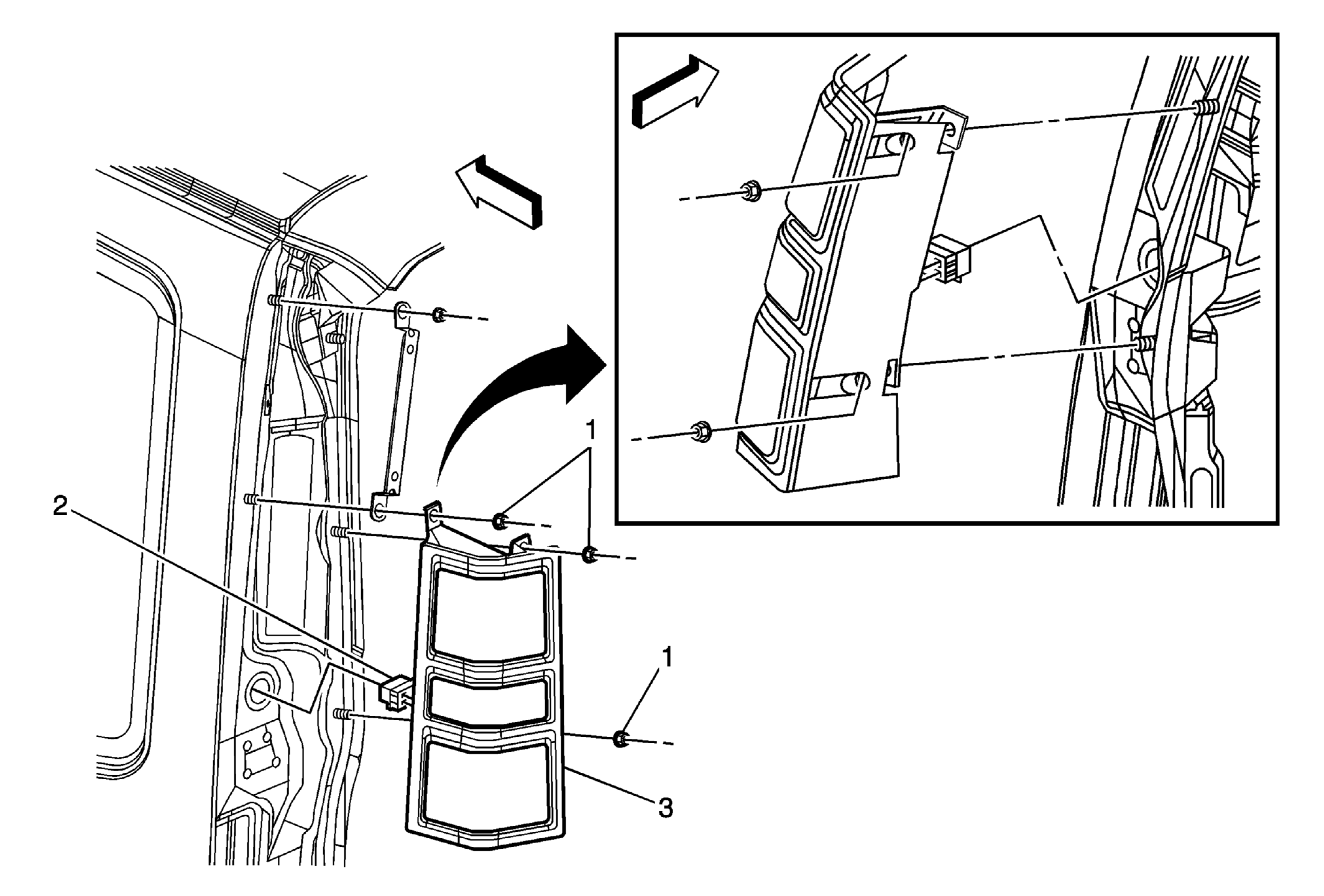

Fig 1: Tail Lamp Replacement
GM1892830Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the back body side opening applique. Refer to Back Body Opening Side Applique and Tail Lamp Replacement .
1 Tail Lamp Nut (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
2 Tail Lamp Electrical Connector

Procedure

  1. Pull the lamp assembly rearward.
  2. Release the electrical harness rubber grommet.
  3. Disconnect the electrical connector from the rearward lamp harness.
3 Tail Lamp Assembly
Tip:  Remove the bulb sockets and service the bulbs as needed.
