High Mount Stop Lamp Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

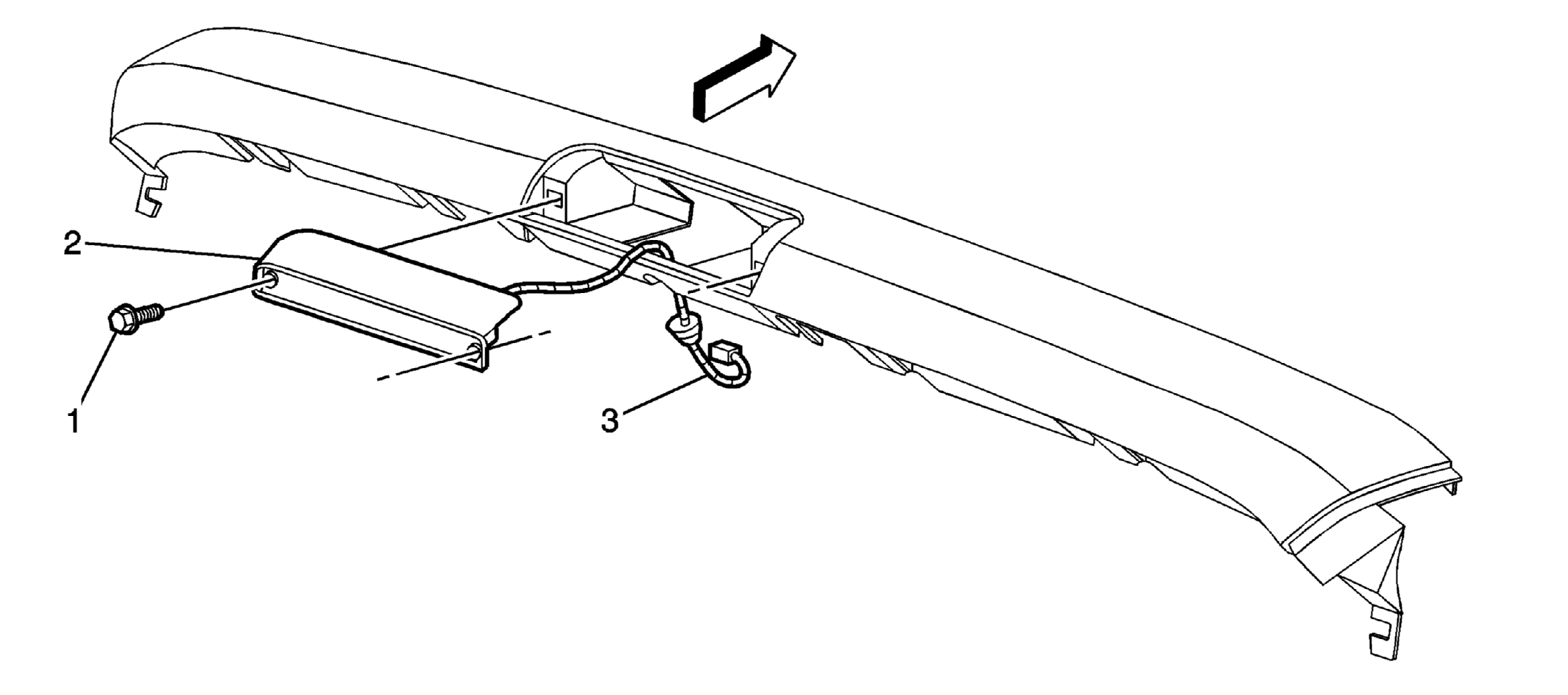

| Callout | Component Name |
|---|---|
| 1 | High Mounted Stop Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | High Mounted Stop Lamp Tip: Disengage the bulb socket from the lamp assembly. |
| 3 | High Mounted Stop Lamp Electrical Harness |
