Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

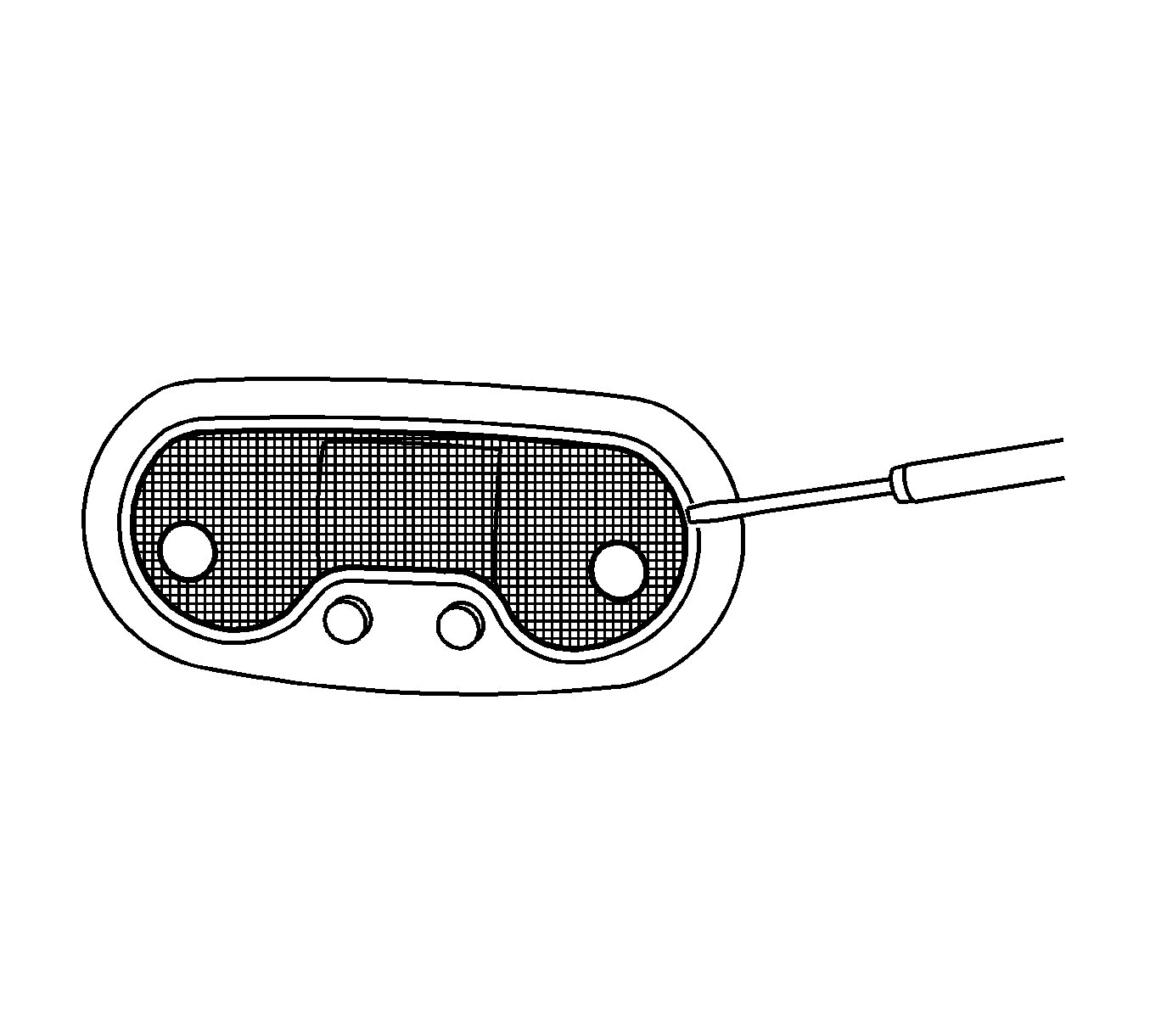

Fig 1: Dome Lamp Lens

Courtesy of GENERAL MOTORS CORP.

Using a flat bladed tool, pry the dome lamp lens open.

Fig 2: Dome Lamp Lens & Housing

Courtesy of GENERAL MOTORS CORP.

Remove the dome lamp lens (2) completely from the dome lamp housing.

Fig 3: Dome Lamp Housing & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Partially remove the dome lamp housing (1) from the headliner.
Disconnect the electrical connector (2) from the dome lamp housing.
