Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

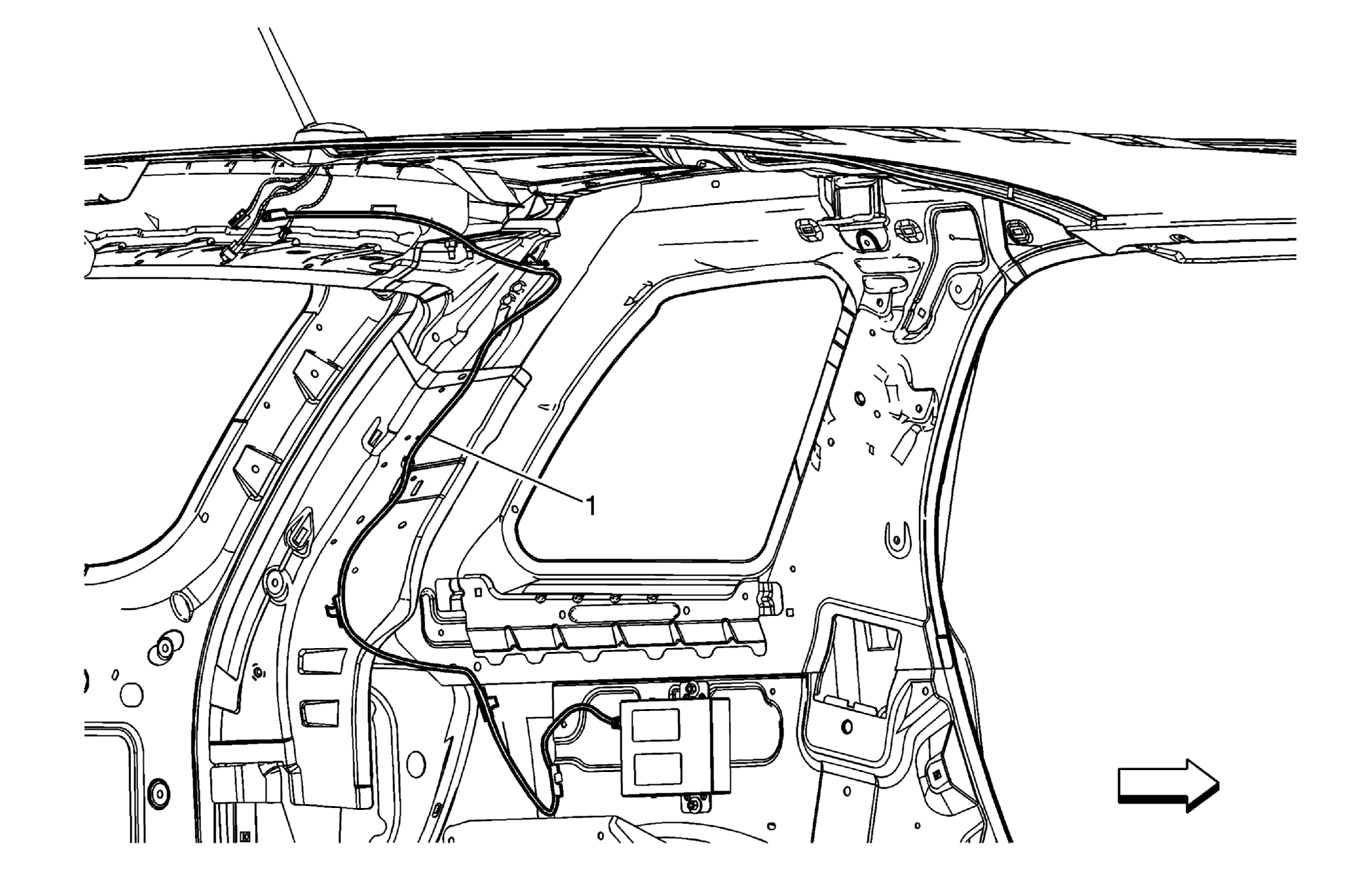

Fig 1: Identifying Digital Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications Refer to Fastener Tightening Specifications .Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .
1	Digital Radio Coaxial Cable Tips Disconnect all electrical/antenna connections. If the old antenna is wrapped in the wiring harness just cut the ends off and route the new harness next to the old one and secure it with tie straps.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications Refer to Fastener Tightening Specifications .Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .

Digital Radio Coaxial Cable

Tips

Disconnect all electrical/antenna connections.
If the old antenna is wrapped in the wiring harness just cut the ends off and route the new harness next to the old one and secure it with tie straps.
