Removal Procedure

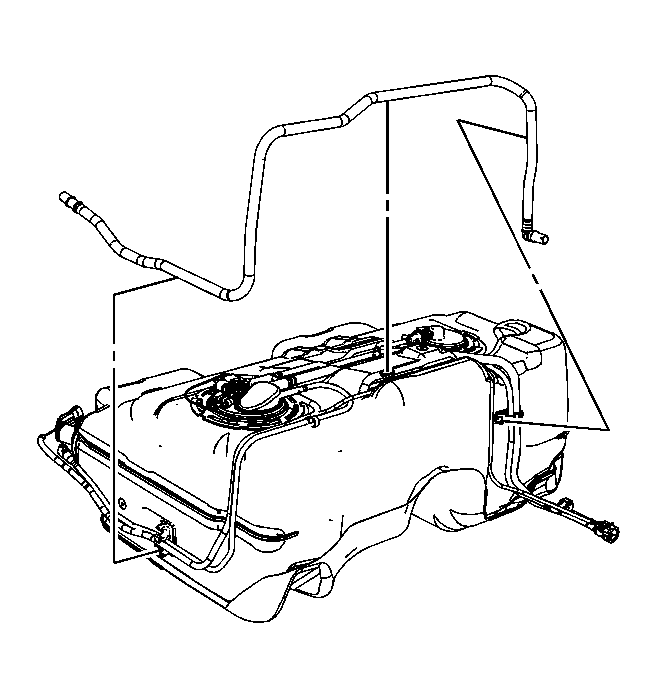

    Fig 1: Identifying Fuel Tank Fill Vent Line
    GM1836300Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank. Refer to Fuel Tank Replacement (AWD)  or Fuel Tank Replacement (FWD) .
  2. Remove the fuel tank fill vent line from the retaining feature built into the tank.
  3. Remove the fuel tank fill vent line from the fuel tank clips.
