Installation Procedure

    Fig 1: Identifying Fuel Feed Pipe
    GM1836304Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel feed pipe to the fuel/EVAP/brake pipe assembly clips.

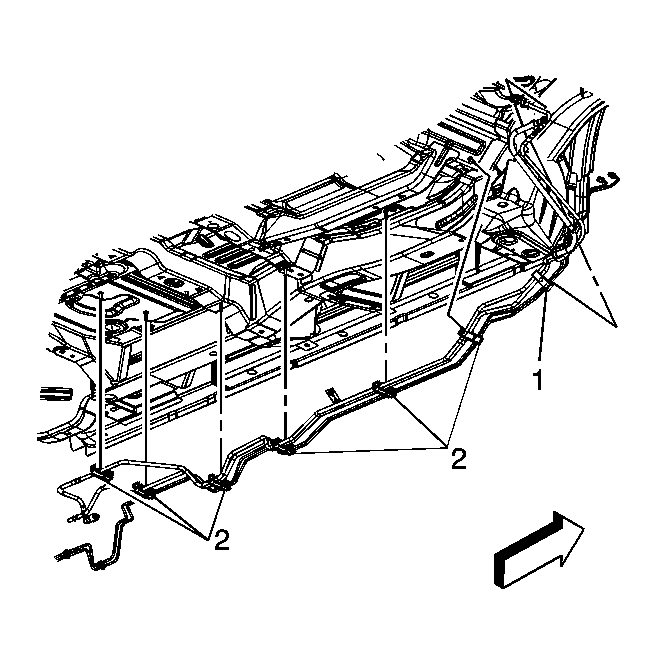

    2. Fig 2: Identifying Fuel/EVAP/Brake Pipe Clips & Push Pin
    GM1836322Courtesy of GENERAL MOTORS CORP.
  2. With the aid of an assistant, position and install the fuel/EVAP/brake pipe clips (2) to the underbody studs.
  3. Install the push pin (1) to the underbody side rail hole.
    4. Fig 3: Identifying Right Rear Brake Line Fitting
    GM1836325Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Connect the right rear brake line fitting to the rear brake hose.

    Tighten:  Tighten the fitting to 18 N.m (13 lb ft).

    5. Fig 4: Identifying Left Rear Brake Line Fitting
    GM1836323Courtesy of GENERAL MOTORS CORP.
  5. Connect the left rear brake line fitting to the brake crossover pipe.

    Tighten:  Tighten the fitting to 18 N.m (13 lb ft).

    6. Fig 5: View Of Chassis Fuel Supply Line, EVAP Canister Purge Hose/Pipe & EVAP Canister-To-Underbody Nuts
    GM1371133Courtesy of GENERAL MOTORS CORP.
  6. Remove the caps from the fuel and EVAP lines.
  7. Connect the fuel feed pipe quick connect fitting (2) to the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  8. Install the EVAP canister. Refer to Evaporative Emission Canister Replacement .
  9. Lower the vehicle.
    10. Fig 6: Identifying Rear Brake Line Fittings & Brake Pressure Module
    GM1836321Courtesy of GENERAL MOTORS CORP.
  10. Connect the rear brake line fittings to the brake pressure module.

    Tighten:  Tighten the fitting to 21 N.m (16 lb ft).

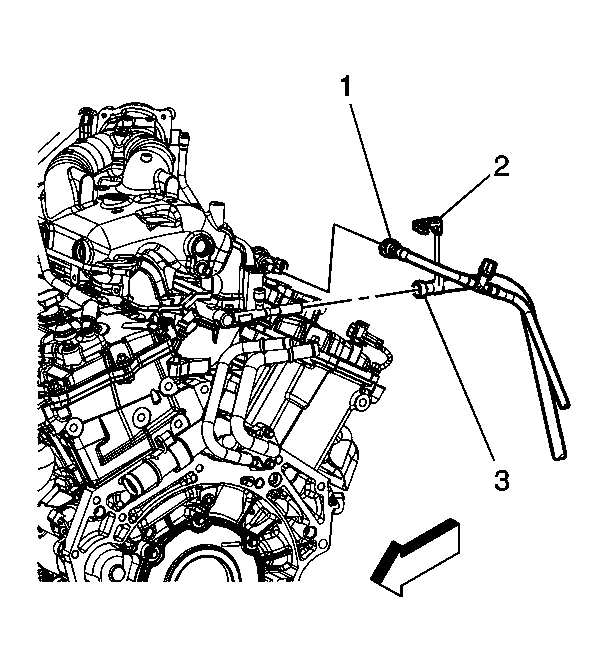

    11. Fig 7: Identifying Fuel Feed Pipe Quick Connect Fitting At Fuel Rail
    GM1834975Courtesy of GENERAL MOTORS CORP.
  11. Remove the caps from the fuel and EVAP lines.
  12. Connect the fuel feed pipe quick connect fitting (3) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
  13. Connect the EVAP pipe quick connect fitting (3) to the EVAP purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  15. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) .
  16. Prime the fuel system.
    1. Cycle the ignition ON for 5 seconds and then OFF for 10 seconds. Repeat cycling twice.
    2. Crank the engine until it starts. The maximum starter motor cranking time is 20 seconds.
    3. If the engine does not start, repeat the above steps.
  17. Run the engine and check the system for leaks.
