Installation Procedure

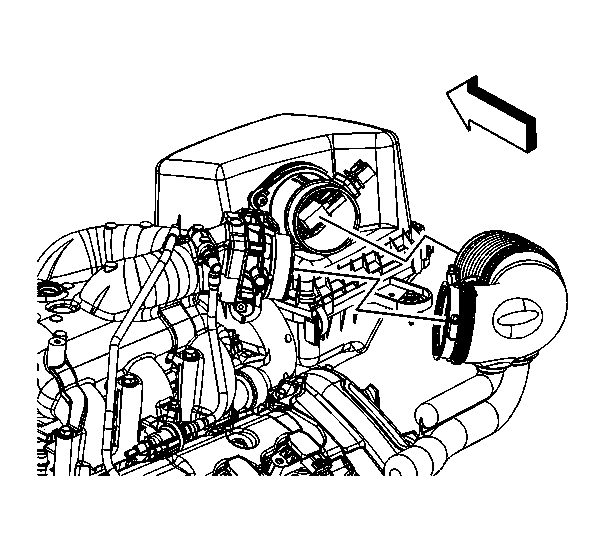

    Fig 1: Identifying Air Cleaner Intake Duct
    GM1835408Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner intake duct to the MAF/IAT sensor and the throttle body.
    2. CAUTION: Refer to Fastener Caution .
  2. Tighten the air cleaner outlet duct clamps at the throttle body and the MAF/IAT sensor.

    Tighten:  Tighten the clamps to 4 N.m (35 lb in).

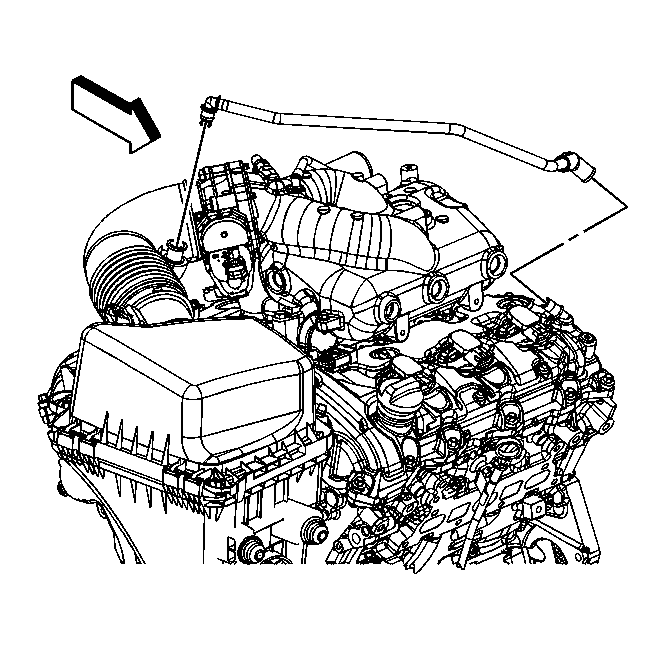

    3. Fig 2: Identifying Front Positive Crankcase Ventilation (PVC) Fresh Air Pipe
    GM1828316Courtesy of GENERAL MOTORS CORP.
  3. Install the PCV tube to the air cleaner outlet duct.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
