Installation Procedure

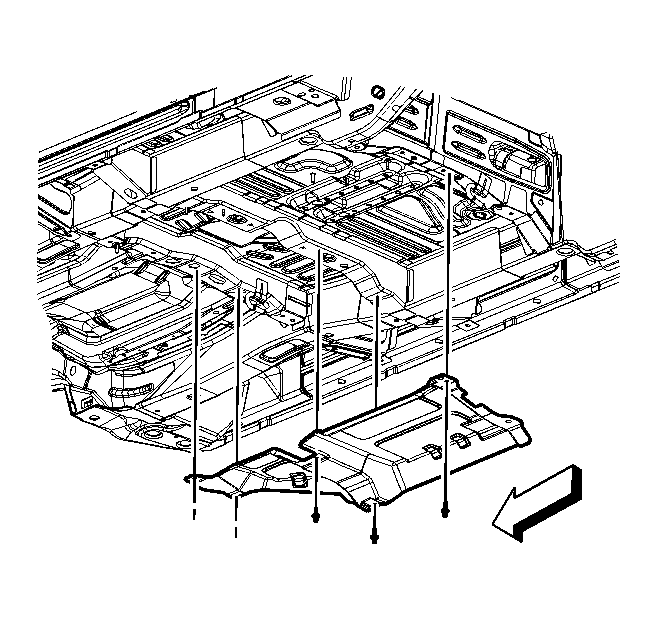

    Fig 1: Identifying Catalytic Converter Heat Shield
    GM1837369Courtesy of GENERAL MOTORS CORP.
  1. Position the catalytic converter heat shield, and insert the catalytic converter heat shield between the underbody and the dash panel heat shield.
  2. Install the NEW rivets.
    3. Fig 2: View Of Fuel Tank Heat Shield & Fuel Tank Assembly
    GM927748Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the fuel tank strap bolt and tighten to 25 N.m (18 lb ft).
    4. Fig 3: View Of Propeller Shaft
    GM935370Courtesy of GENERAL MOTORS CORP.
  4. If the vehicle is equipped with AWD, install the propeller shaft underbody guard loop and bolts. Tighten the bolts to 25 N.m (18 lb ft).
  5. Install the muffler assembly. Refer to Exhaust Muffler Replacement (LNJ)  or Exhaust Muffler Replacement (LY7) .
