Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Fuel Injector
    GM1285197Courtesy of GENERAL MOTORS CORP.
  1. Install NEW fuel injector seals.
  2. Install the fuel injector.
    3. Fig 2: Identifying Fuel Injector Retainer Clip
    GM1285199Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel injector retainer clip.
    4. Fig 3: View Of Fuel Injector Electrical Connector
    GM1285198Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel injector electrical connector.
  5. Engage the fuel injector electrical connector lock.

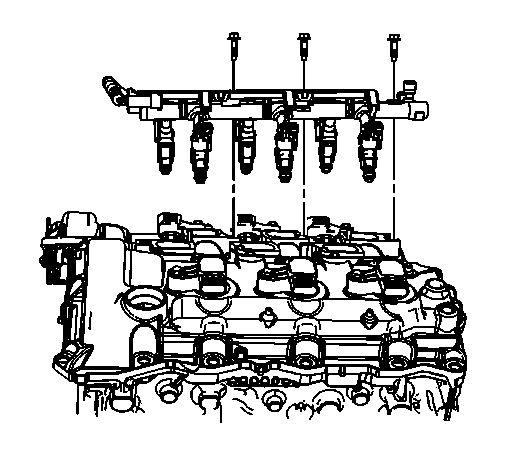

    6. Fig 4: View Of Fuel Rail Bolts
    GM1836385Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel rail with fuel injectors to the lower intake manifold.
    7. CAUTION: Refer to Fastener Caution .
  7. Install the fuel rail bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    8. Fig 5: Identifying Fuel Feed Pipe Quick Connect Fitting At Fuel Rail
    GM1834975Courtesy of GENERAL MOTORS CORP.
  8. Connect the fuel feed pipe quick connect fitting (3) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
  9. Install the upper intake manifold. Refer to Upper Intake Manifold Replacement .
