Video Display Replacement
WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

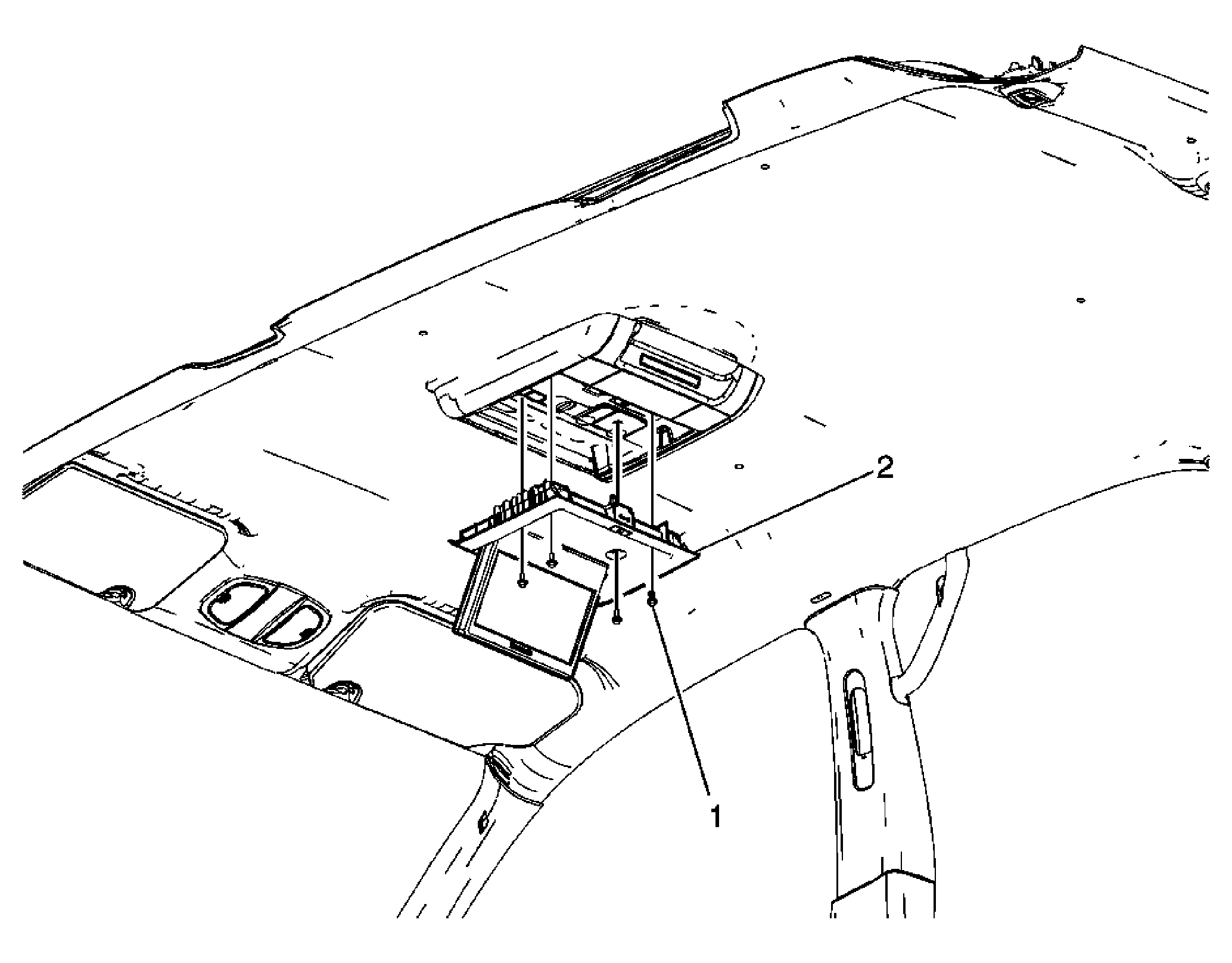

| Callout |
Component Name |
| 1 |
Video Display Assembly Screw (Qty: 4) Tighten:
2 N.m (18 lb in)
|
| 2 |
Video Display Assembly
Tip:
- Pull down to disengage the retainer clip and remove from the vehicle.
- Disconnect the electrical connector.
|
