Radio Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

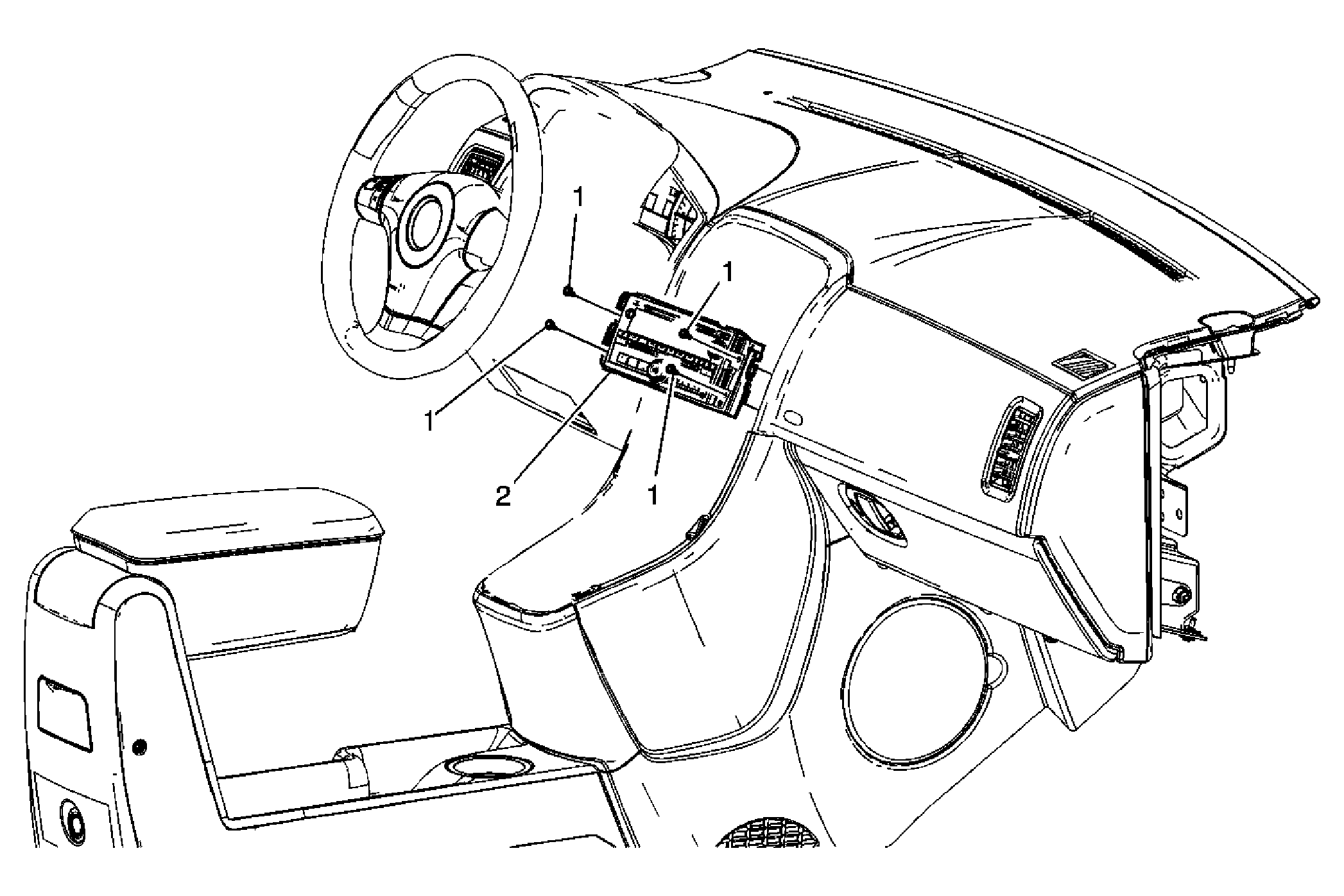

Fig 1: View Of Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1	Radio Assembly Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Radio Assembly Disconnect the electrical connector. Disconnect the antenna cable. Reprogram the radio after installation. Refer to Control Module References .
