Radio Antenna Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

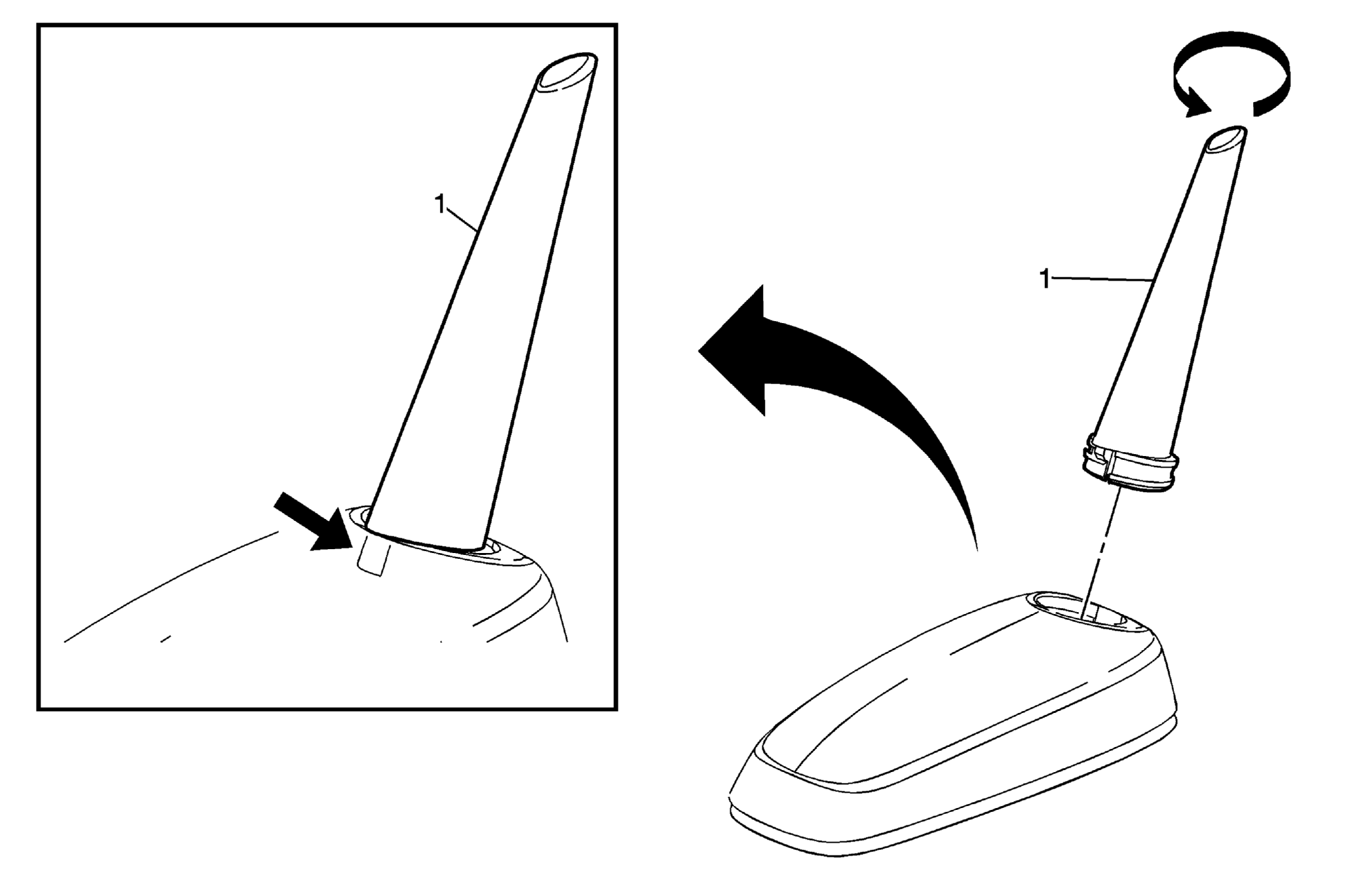

Fig 1: View Of Mobile Telephone Digital Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mobile Telephone Digital Antenna Assembly Procedure: Using a small flat-bladed tool, push in and hold the release tab, then rotate the mast counterclockwise in order to release the mast from the antenna base. Tip: The release tab is not visible with the mast assembled to the antenna base.
