Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

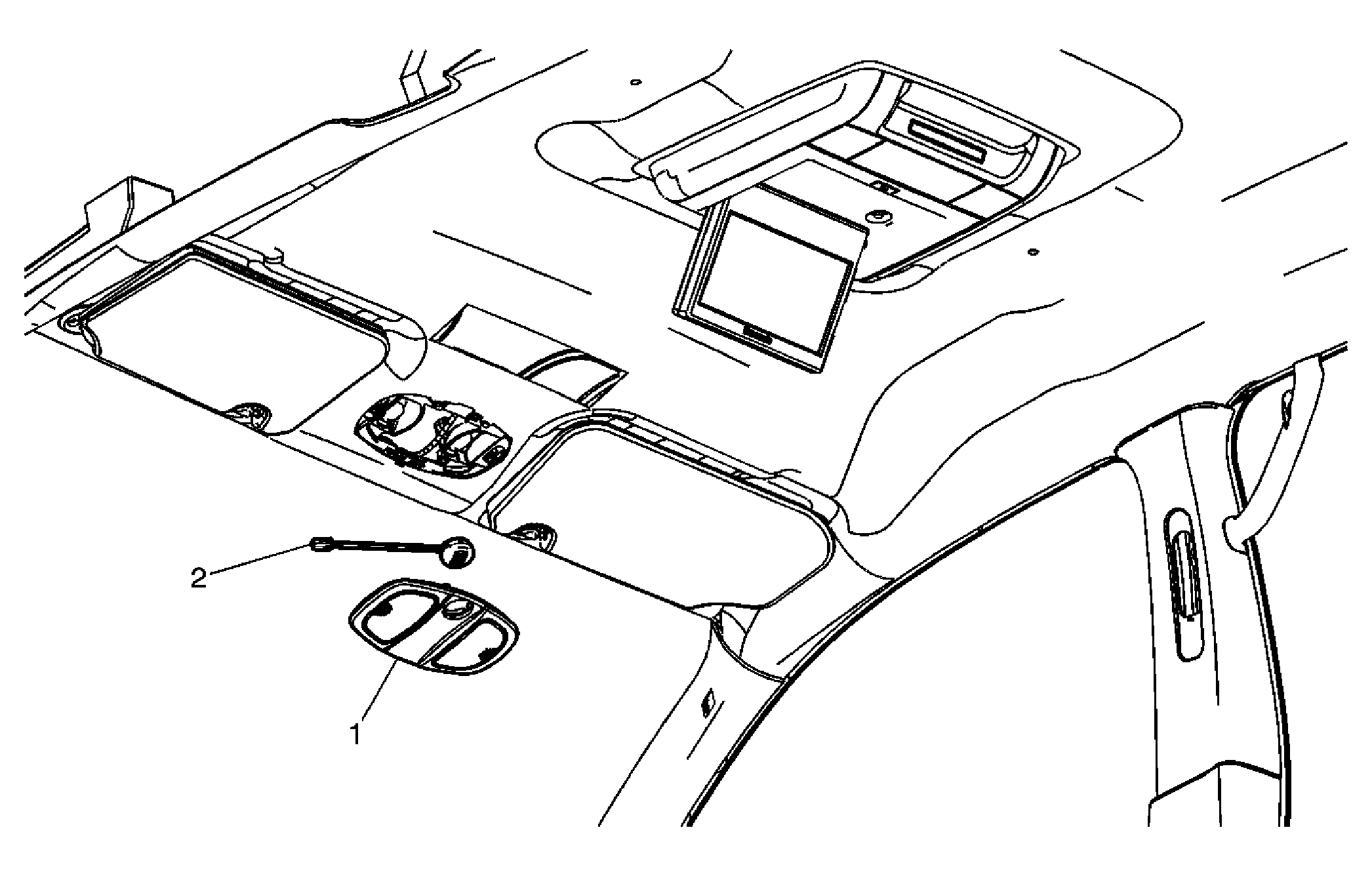

Fig 1: Identifying Mobile Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the windshield pillar moldings. Refer to Windshield Upper Garnish Molding Replacement . Remove the sunshades. Refer to Sunshade Replacement .
1	Reading Lamp Assembly Tip: Pull gently at the front of the reading lamp cover to disengage the retainer clips. Rotate the cover rearward until the rear attaching hooks are released. Disconnect the electrical connectors.
2	Mobile Telephone Microphone Assembly

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the windshield pillar moldings. Refer to Windshield Upper Garnish Molding Replacement .
Remove the sunshades. Refer to Sunshade Replacement .

Reading Lamp Assembly
Tip:

Pull gently at the front of the reading lamp cover to disengage the retainer clips.
Rotate the cover rearward until the rear attaching hooks are released.
Disconnect the electrical connectors.

Mobile Telephone Microphone Assembly
