Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

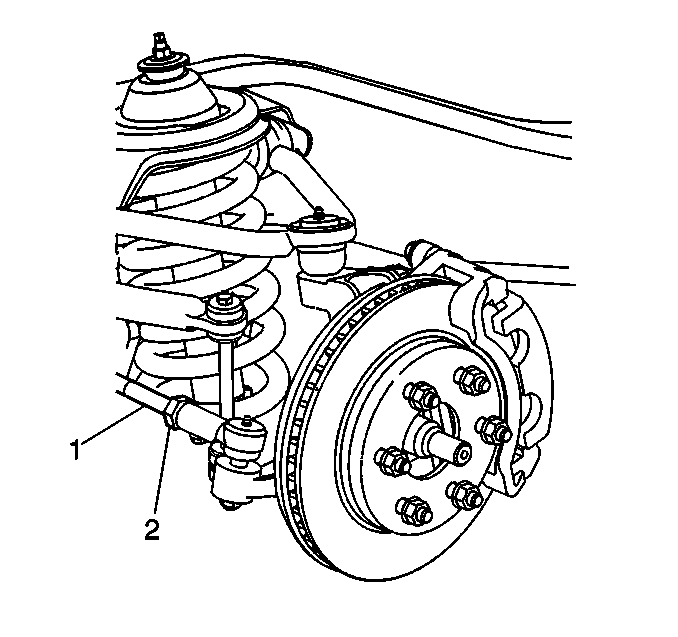

Fig 1: Adjusting Front Toe

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the tie rod (2).
Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .

CAUTION: Refer to Fastener Caution .

Tighten the jam nut on the tie rod to 68 N.m (50 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
