Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

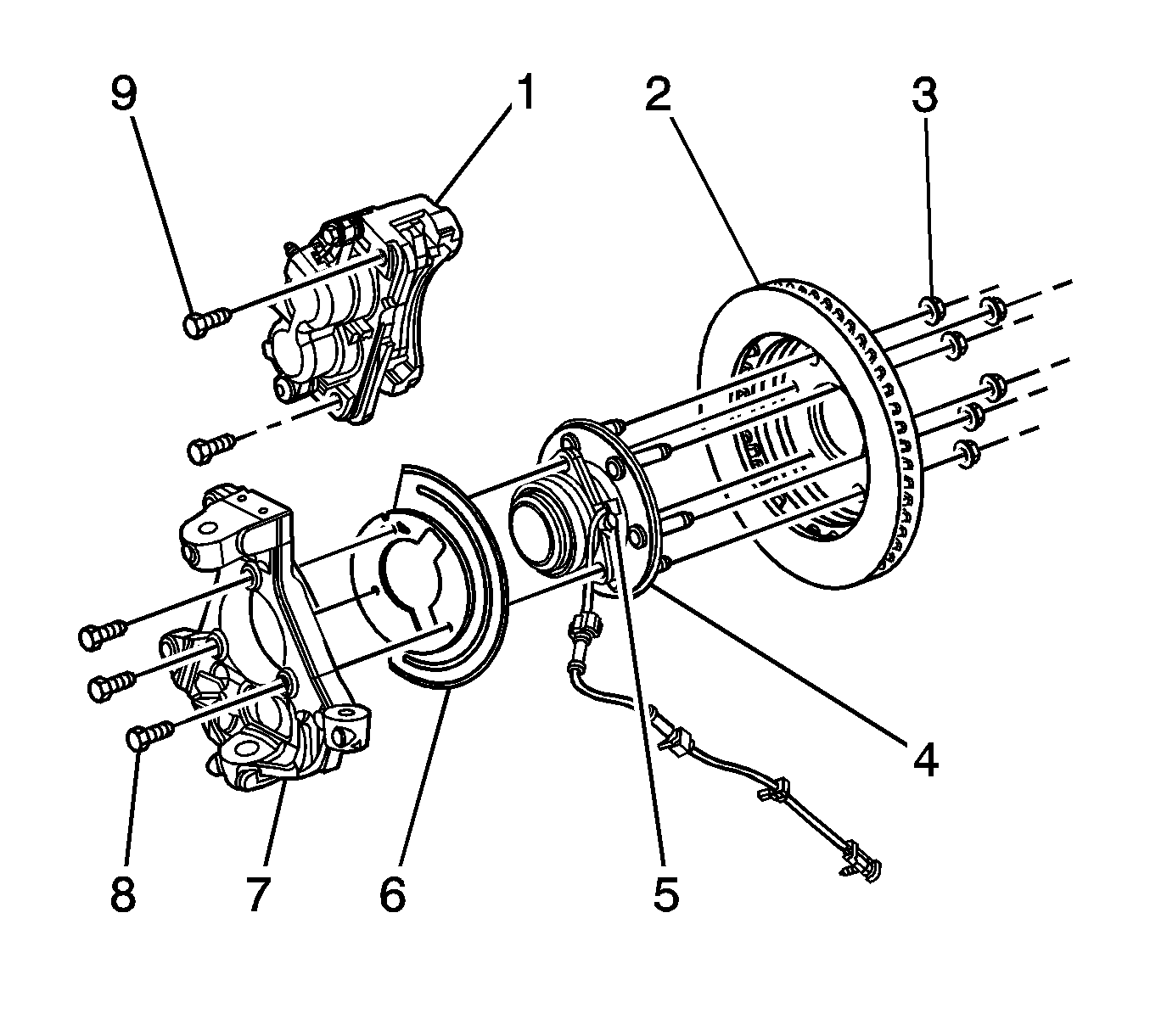

    Fig 1: Exploded View Of Disc Brake Components (15 Series)
    GM913491Courtesy of GENERAL MOTORS CORP.
  1. Install the splash shield (6), for 15 series.
    2. Fig 2: Splash Shield (25/35 Series)
    GM371077Courtesy of GENERAL MOTORS CORP.
  2. Install the splash shield, for 25/35 series.
  3. Install the hub and bearing assembly (5). Refer to Front Wheel Hub, Bearing, and Seal Replacement (RWD) or Front Wheel Hub, Bearing, and Seal Replacement (4WD) .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  5. Remove the safety stands.
  6. Lower the vehicle.
