Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

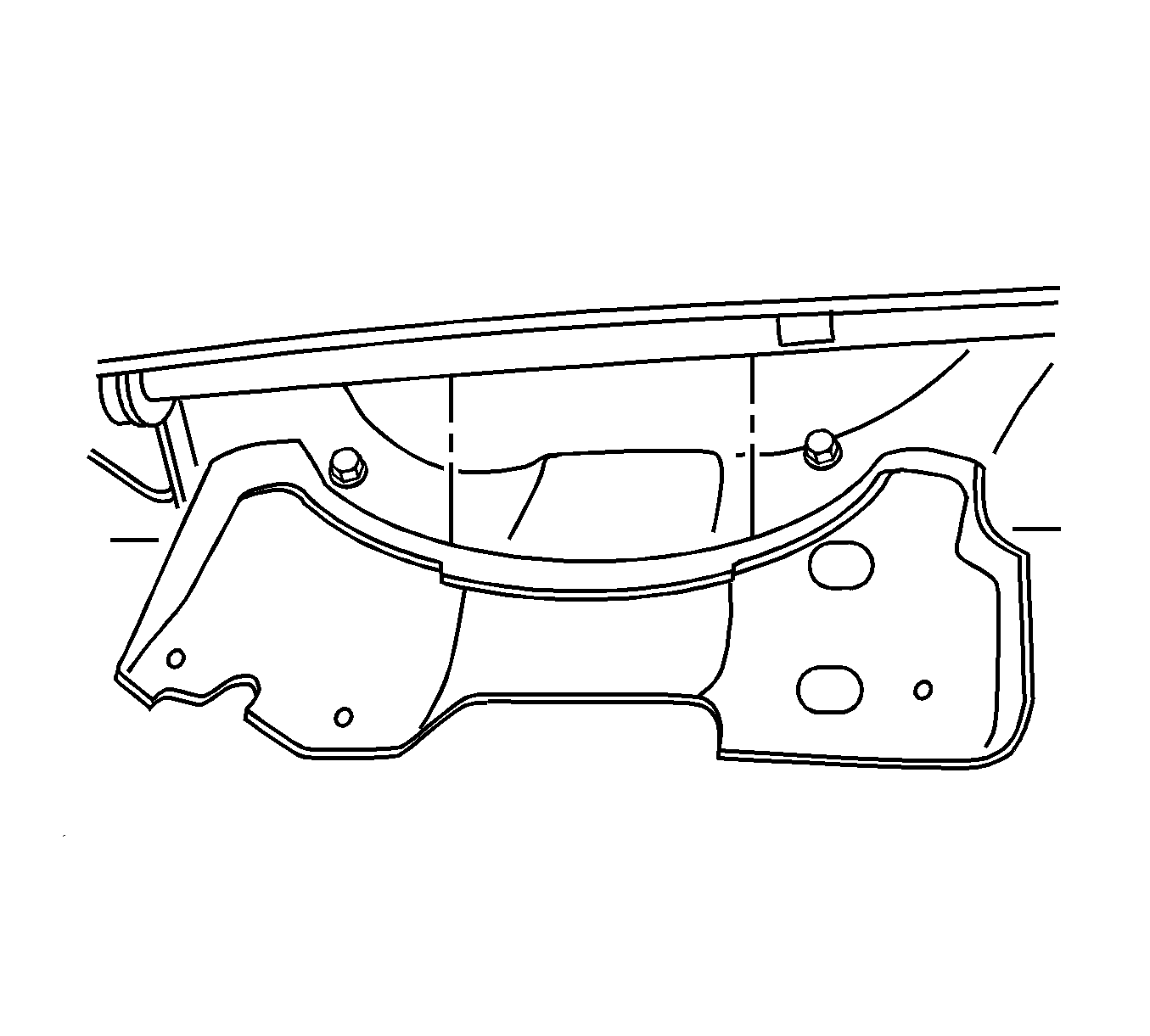

    Fig 1: Engine Protection Shield
    GM890563Courtesy of GENERAL MOTORS CORP.
  1. Install the engine protection shield.
    2. CAUTION: Refer to Fastener Caution .
    Fig 2: Engine Protection Shield Mounting Bolts
    GM890567Courtesy of GENERAL MOTORS CORP.
  2. Install the engine protection shield mounting bolts, light duty shown, heavy duty similar, and tighten to 20 N.m (15 lb ft).
  3. Lower the vehicle.
