Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

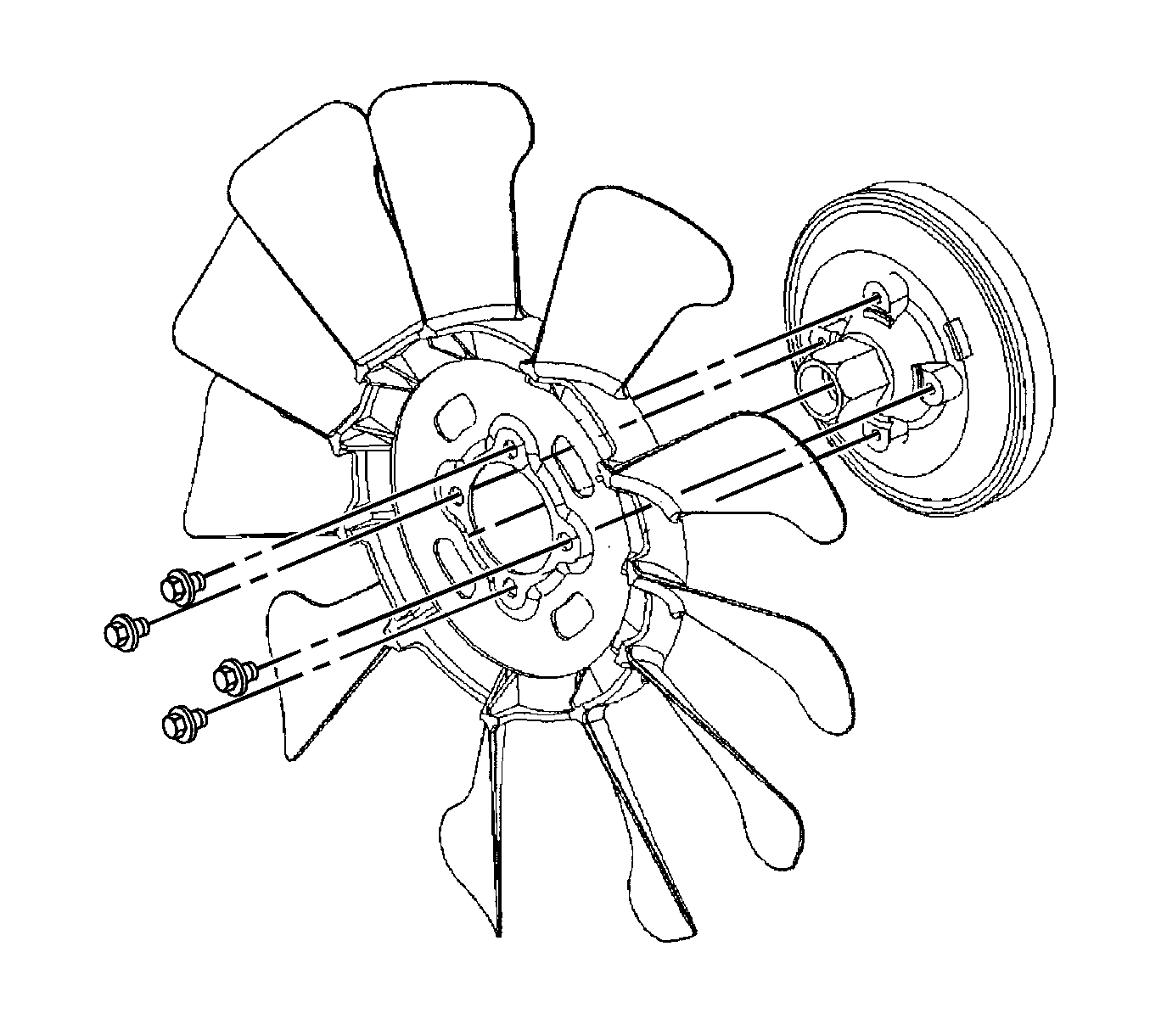

    Fig 1: Identifying fan to fan clutch retaining bolts
    GM1732054Courtesy of GENERAL MOTORS CORP.
  1. Install the fan to the fan clutch.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the fan to fan clutch retaining bolts and tighten to 23 N.m (17 lb ft).
  3. Install the fan clutch assembly. Refer to Fan Clutch Replacement .
