Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

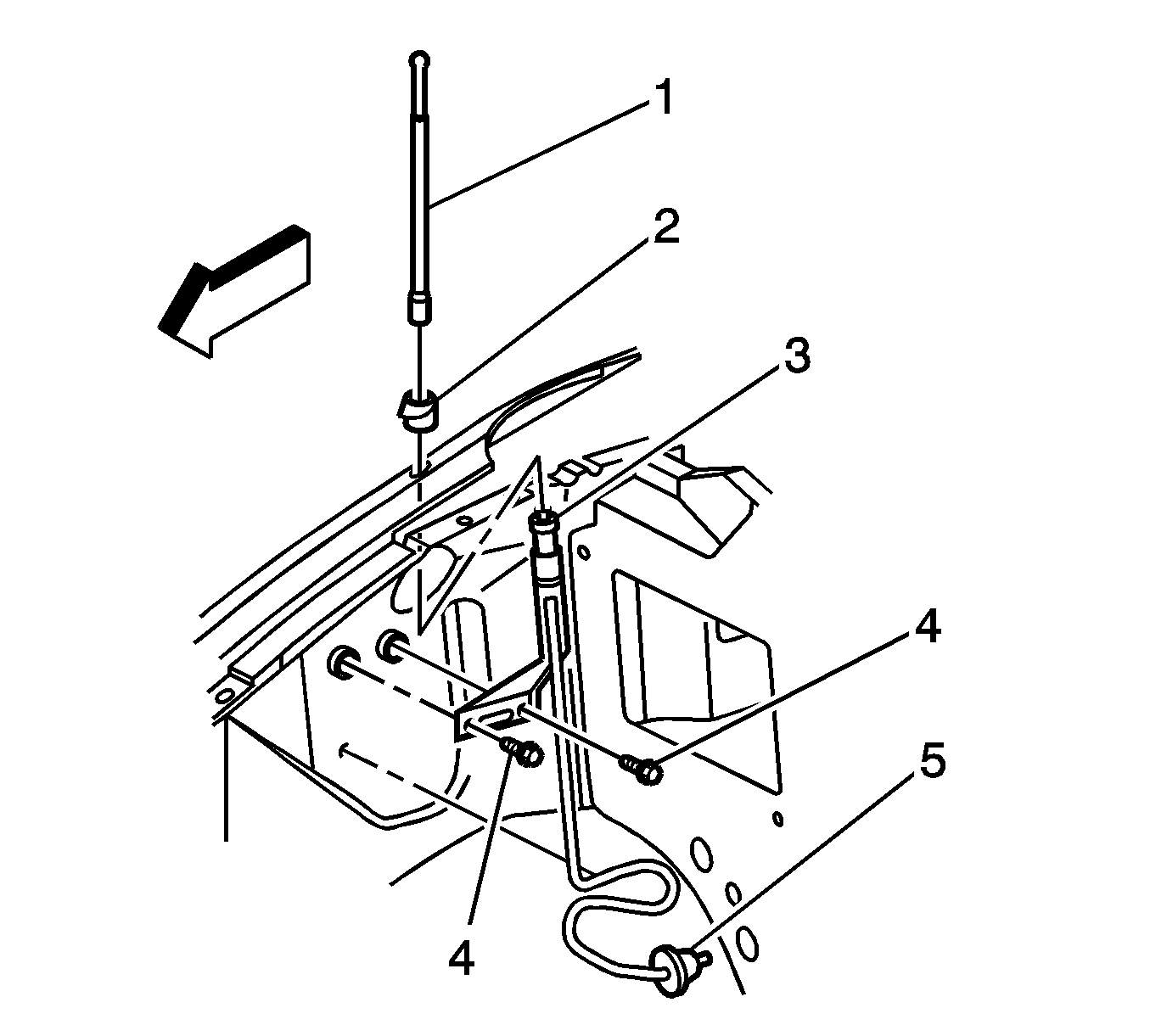

- Install the fixed antenna cable/base (3).
- Install the antenna cable/base mounting bolts (4) and tighten to 11 N.m (97 lb in).
- Route the antenna base cable under the A/C case and through the hole in the firewall.
- Install the antenna cable grommet (5) through firewall and seat the grommet (5).
- Install the antenna collar (2).
- Connect the antenna base cable to the antenna extension cable.
- Install the passenger side hinge pillar trim. Refer to Body Hinge Pillar Trim Panel Replacement .
- Install the antenna mast (1). Refer to Fixed Antenna Mast Replacement .
CAUTION:
Refer to Fastener Caution
.
