Front Brake Shield Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

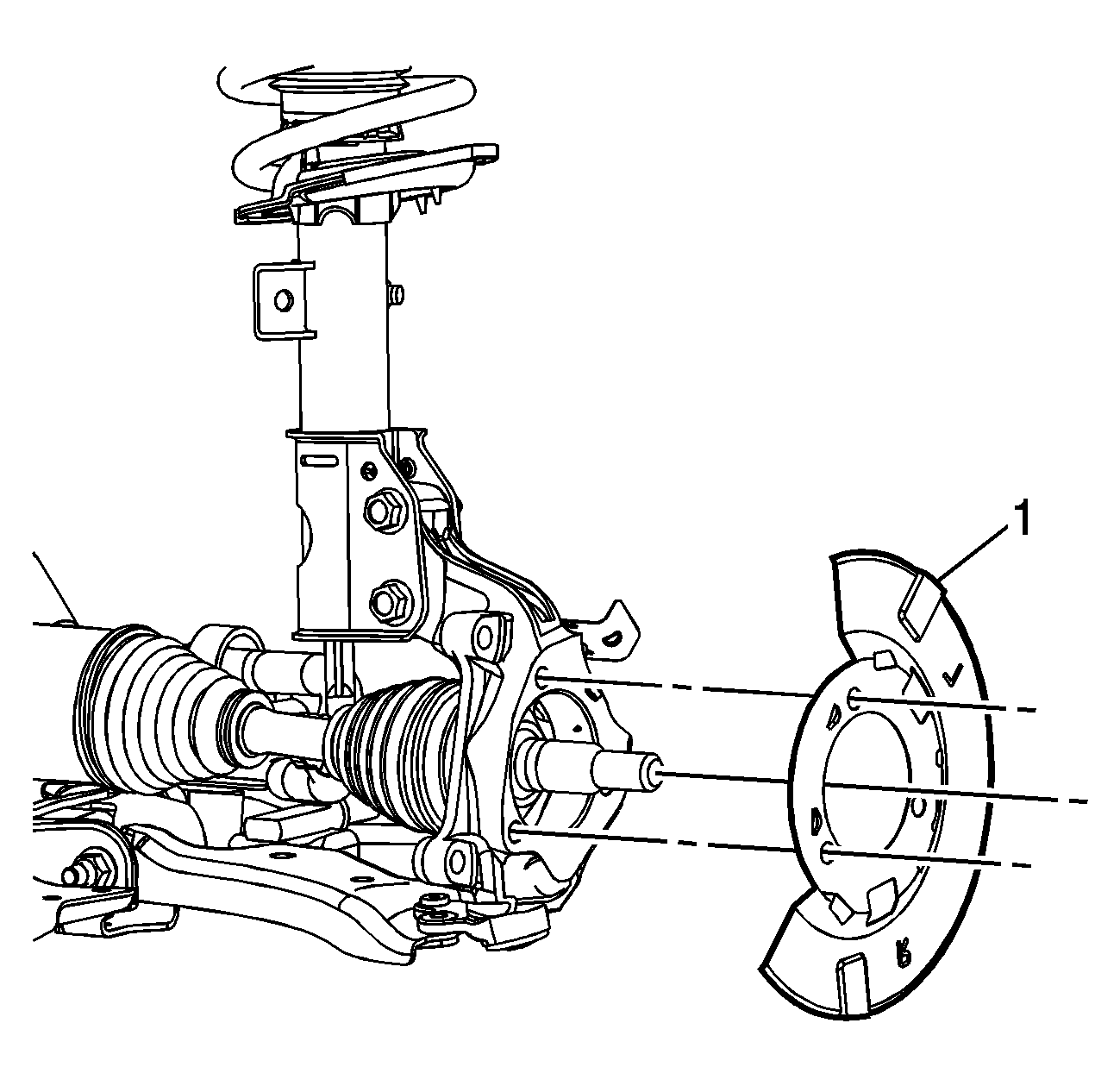

Fig 1: View Of Disc Brake Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Without disconnecting the brake caliper hose, remove the brake caliper and bracket as an assembly and support with heavy mechanics wire or equivalent. Refer to Front Brake Caliper Bracket Replacement . Remove the front brake rotor. Refer to Front Brake Rotor Replacement . Remove the wheel bearing/hub. Refer to Front Wheel Bearing and Hub Replacement .
1	Disc Brake Splash Shield

Callout

Component Name

CAUTION: Refer to Brake Dust Caution .

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Without disconnecting the brake caliper hose, remove the brake caliper and bracket as an assembly and support with heavy mechanics wire or equivalent. Refer to Front Brake Caliper Bracket Replacement .
Remove the front brake rotor. Refer to Front Brake Rotor Replacement .
Remove the wheel bearing/hub. Refer to Front Wheel Bearing and Hub Replacement .

Disc Brake Splash Shield
