Front Wheel Speed Sensor Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

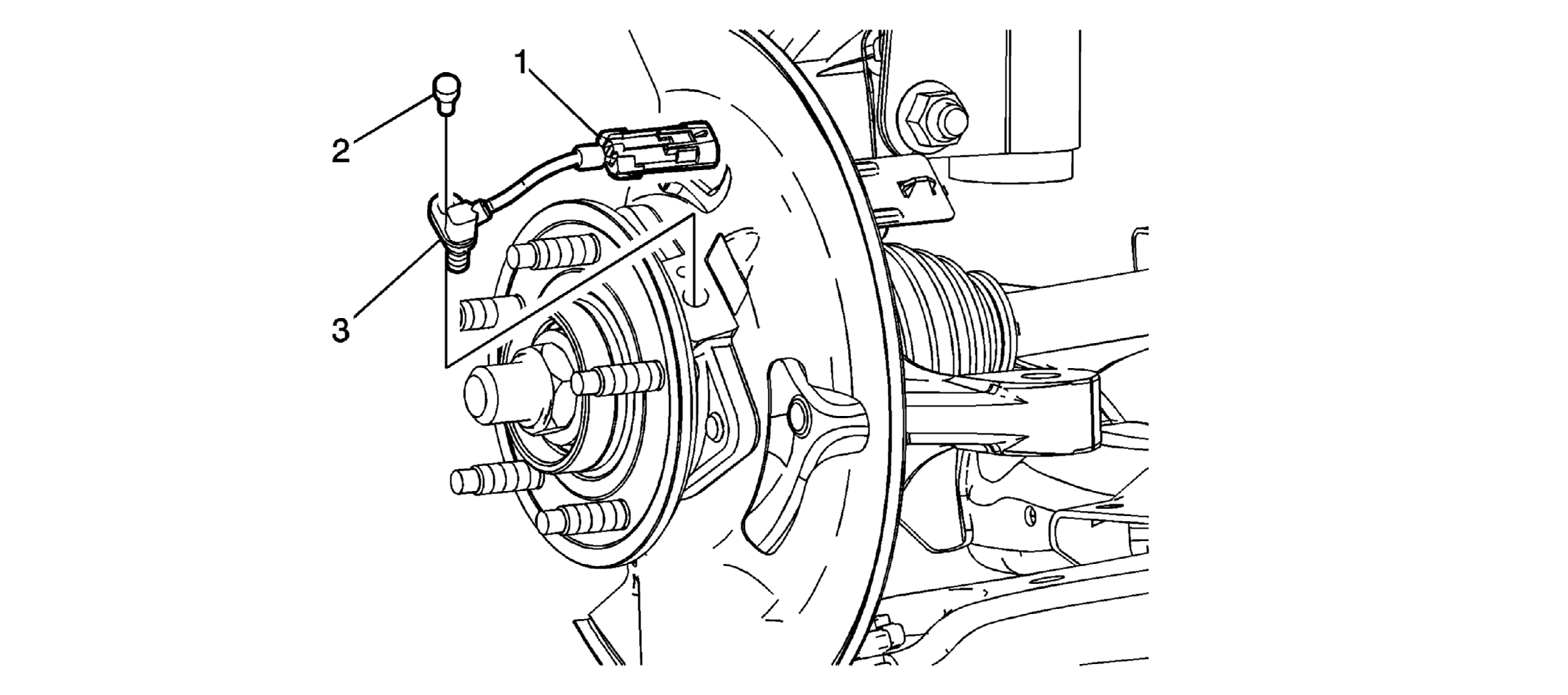

Fig 1: Identifying Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the brake rotor. Refer to Front Brake Rotor Replacement .
1	Wheel Speed Sensor Electrical Connector Procedure: Release the electrical connector from the bracket.
2	Wheel Speed Sensor Bolt NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
3	Wheel Speed Sensor Procedure: Route the wheel speed sensor electrical harness through the splash shield.
