Wiper Blade Element Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

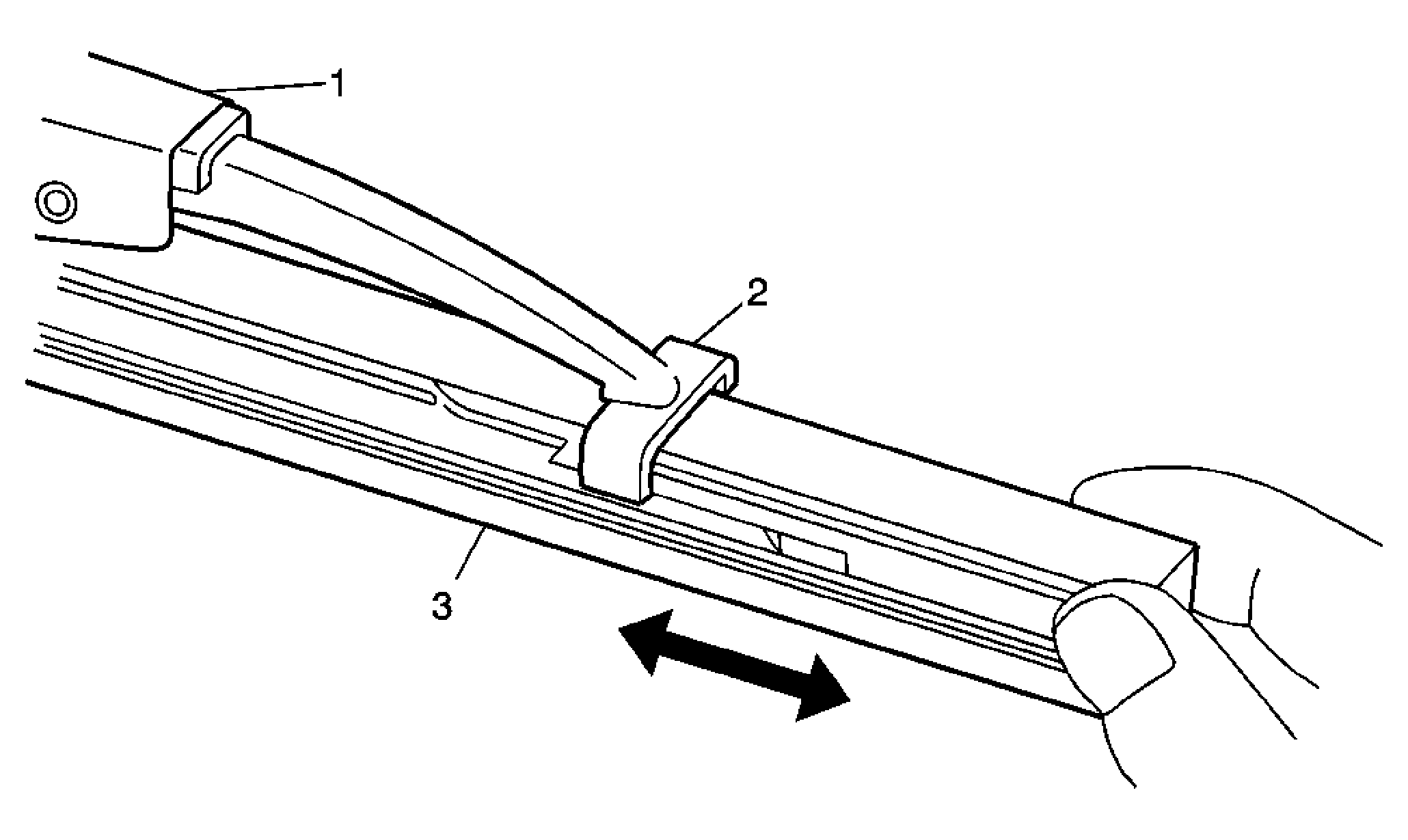

Fig 1: View Of Wiper Blade Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the wiper arm blade. Refer to Windshield Wiper Blade Replacement .
1	Blade, Windshield Wiper Arm
2	Bear Claws, Wiper Arm Blade
3	Insert, Wiper Arm Blade Tip: Hold the wiper arm blade firmly and pull blade element from blade bear claws. Passenger and driver side inserts are not interchangeable.
