Windshield Wiper Motor Replacement
WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

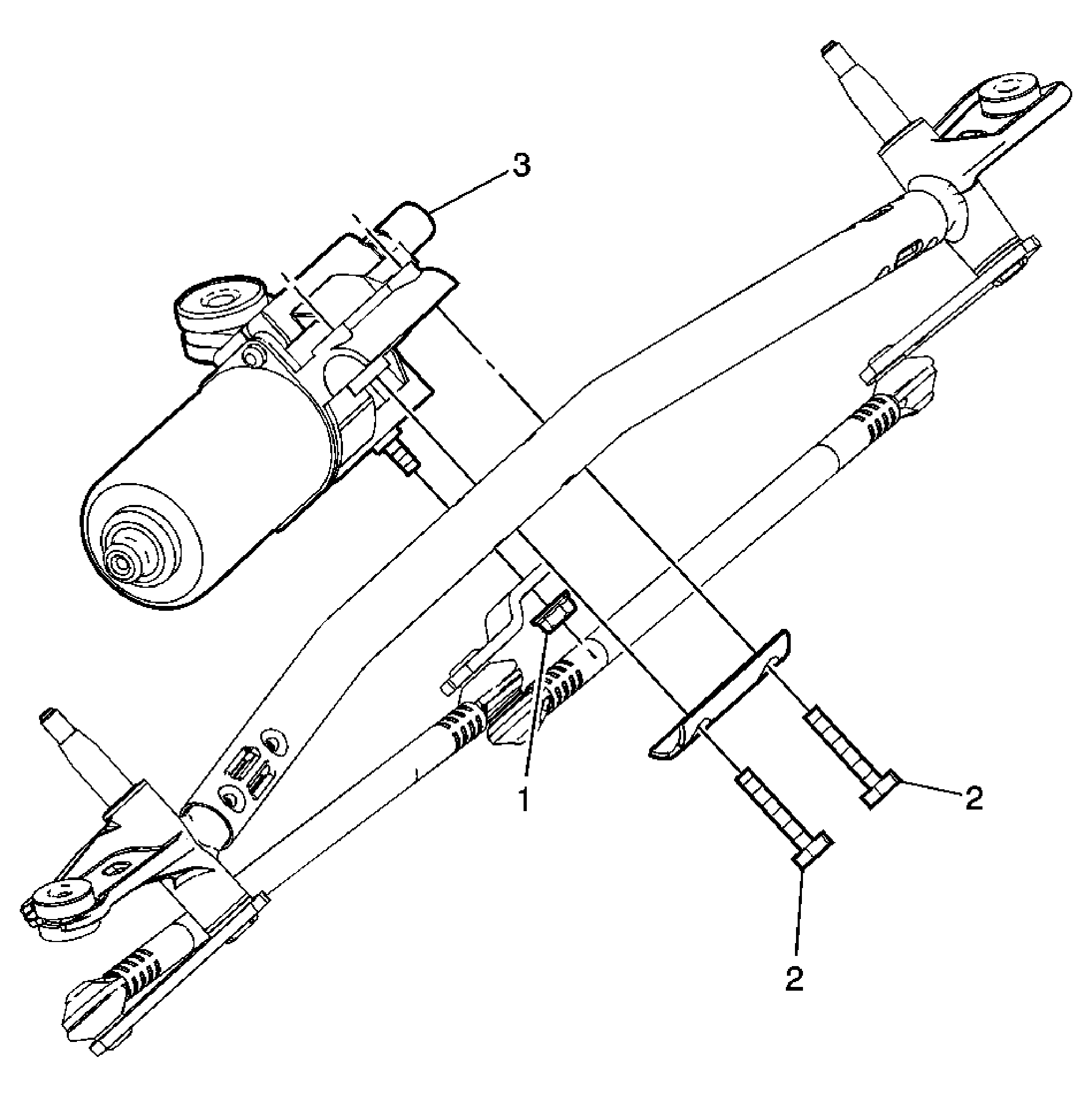

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the wiper motor module. Refer to Windshield Wiper System Module Replacement . |
|
| 1 | Windshield Wiper Motor Nut Tighten: 9 N.m (80 lb in) |
| 2 | Windshield Wiper Motor Bolt (Qty: 2) Tighten: 9 N.m (80 lb in) |
| 3 | Windshield Wiper Motor |
