Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

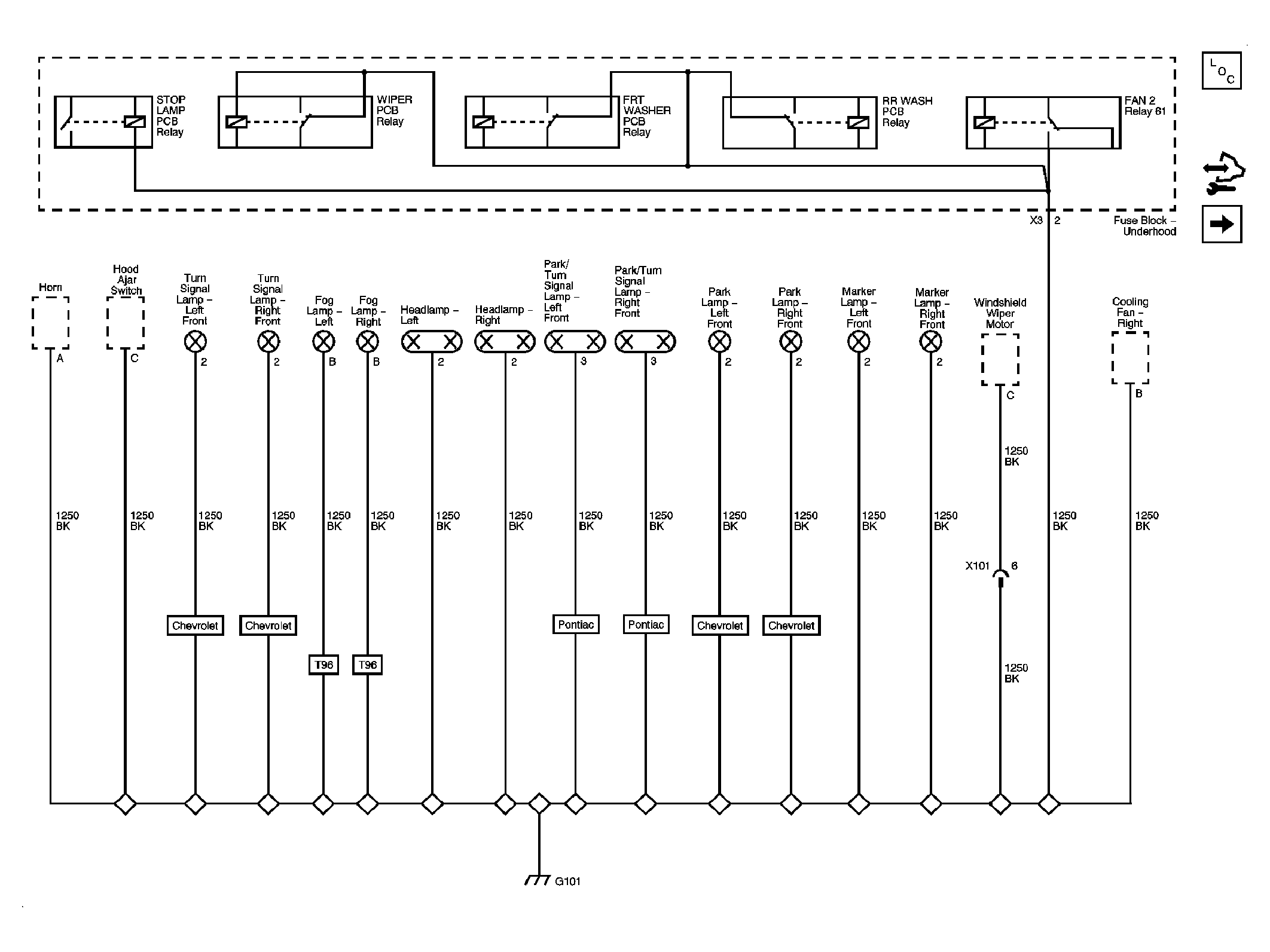

Fig 1: G101

Courtesy of GENERAL MOTORS CORP.

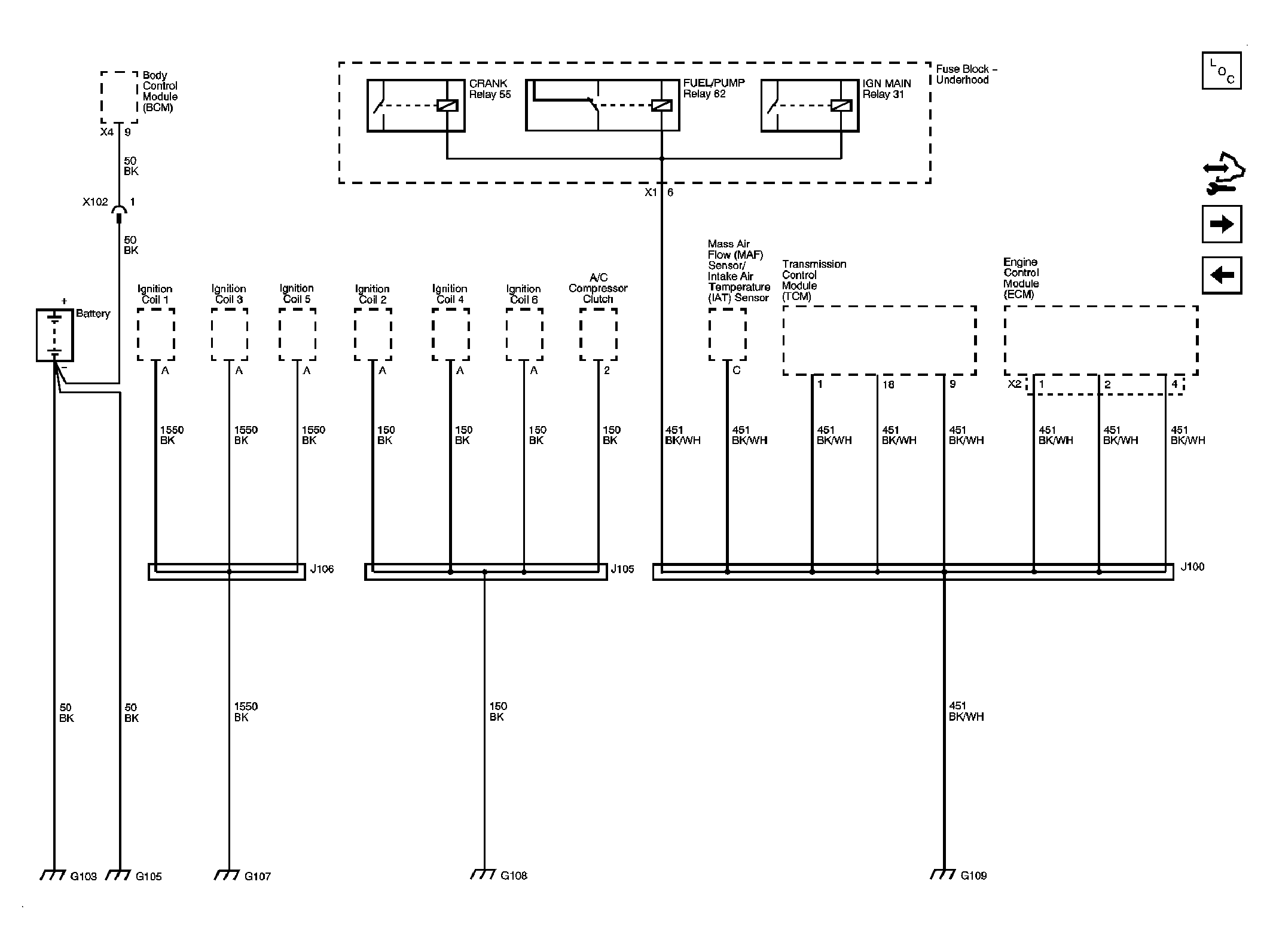

Fig 2: G103, G105, G107, G108 and G109 (LY7)

Courtesy of GENERAL MOTORS CORP.

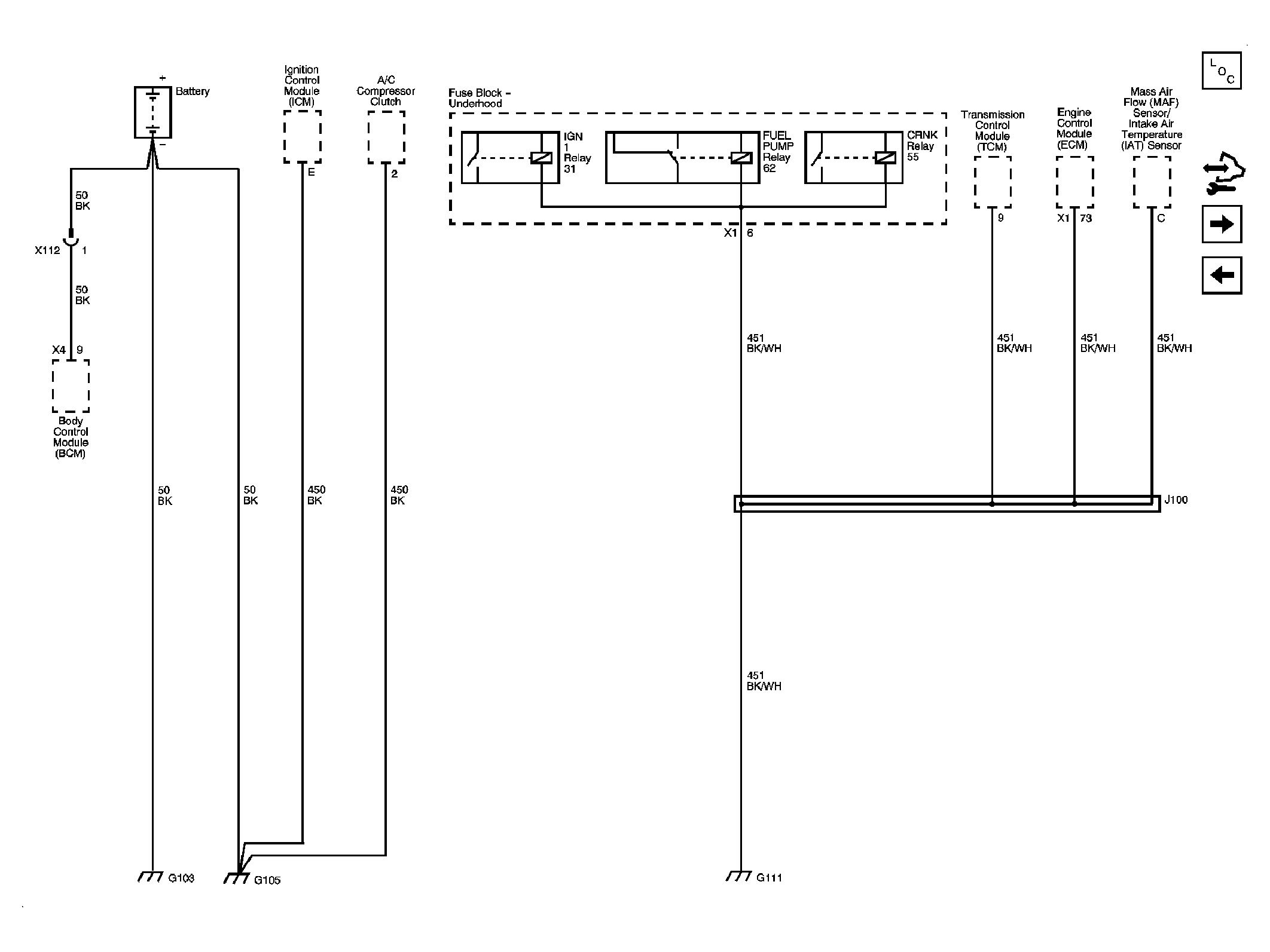

Fig 3: G103, G105, G111 (LNJ)

Courtesy of GENERAL MOTORS CORP.

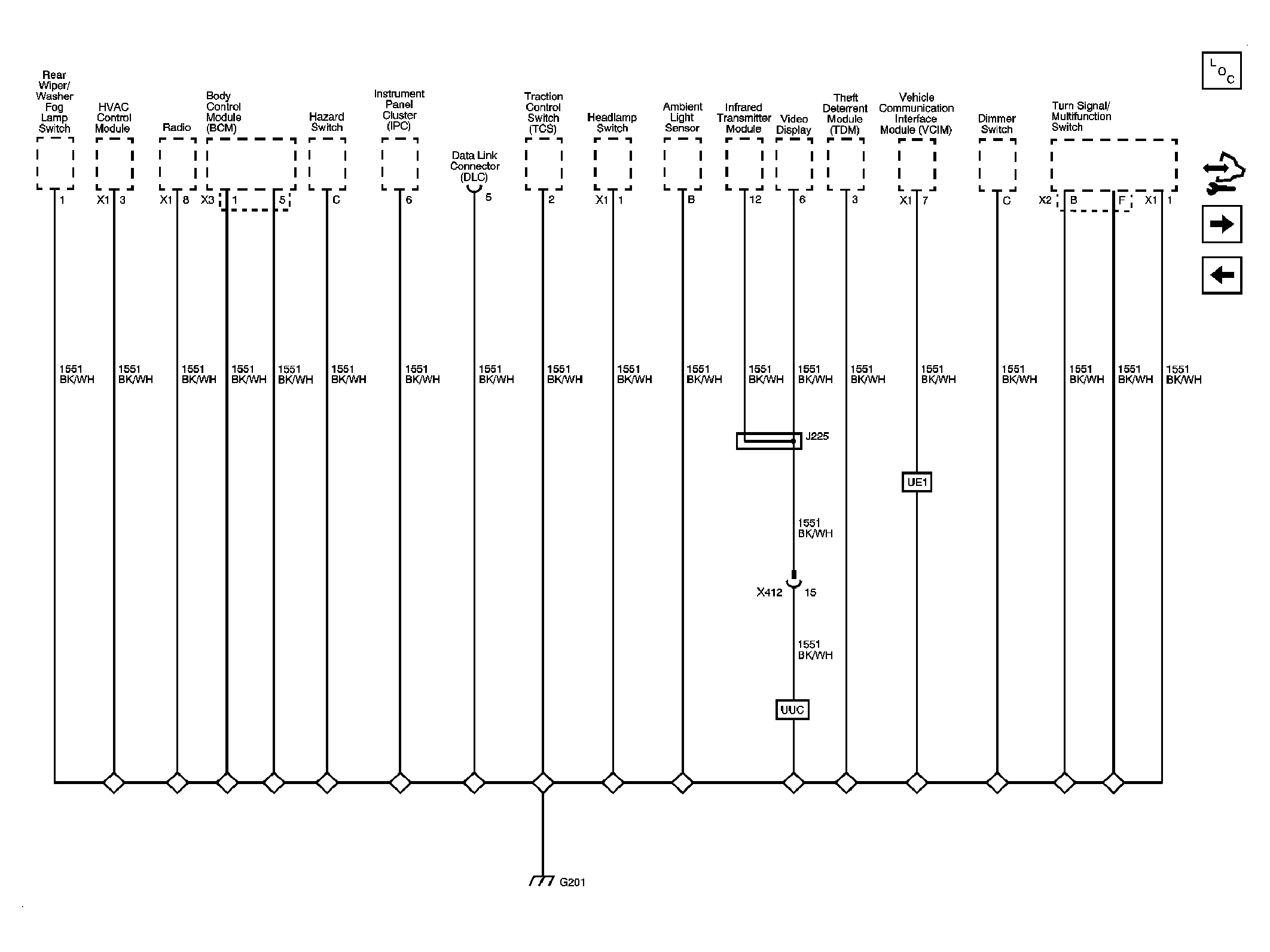

Fig 4: G201

Courtesy of GENERAL MOTORS CORP.

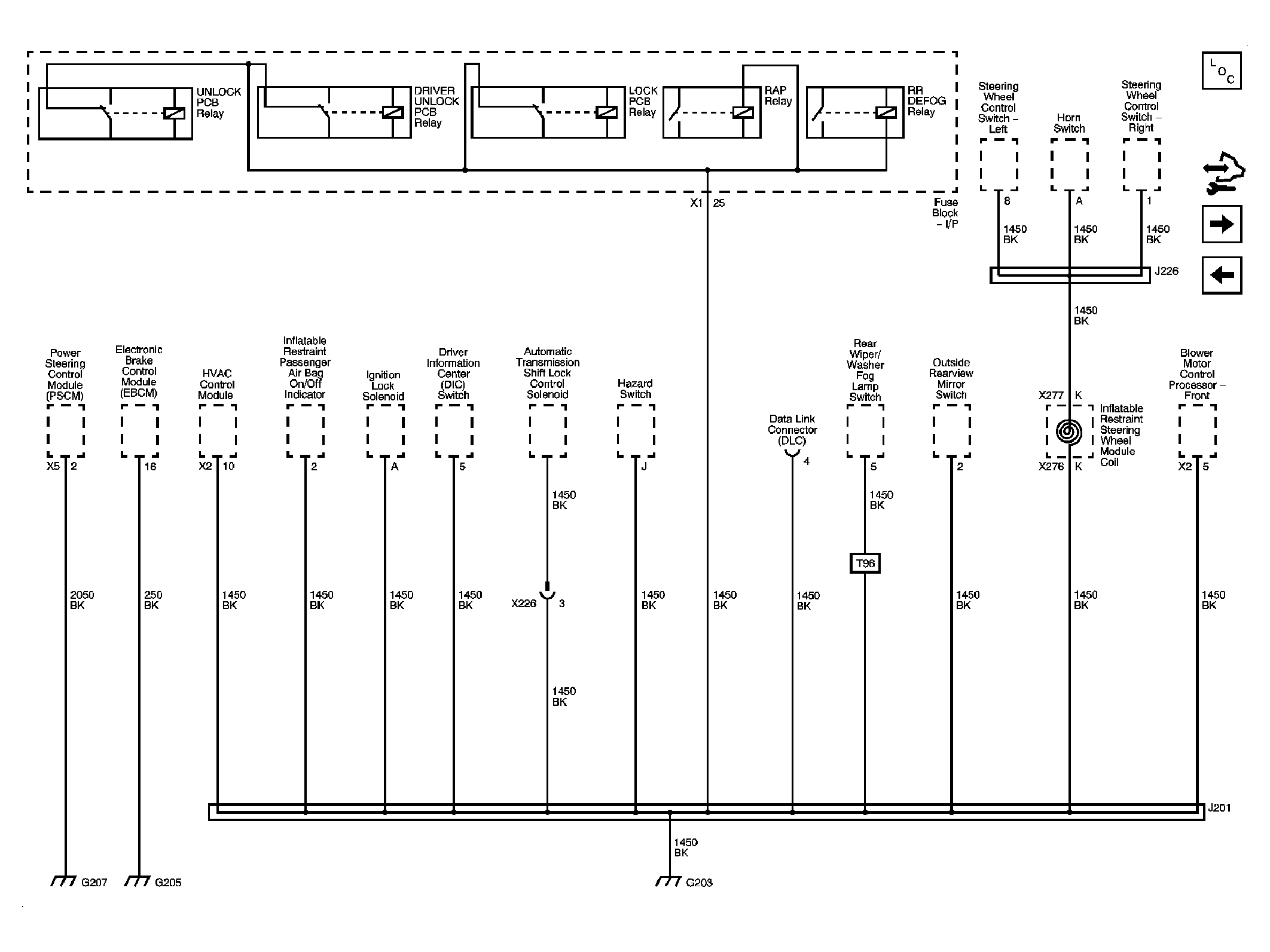

Fig 5: G203, G205, G207

Courtesy of GENERAL MOTORS CORP.

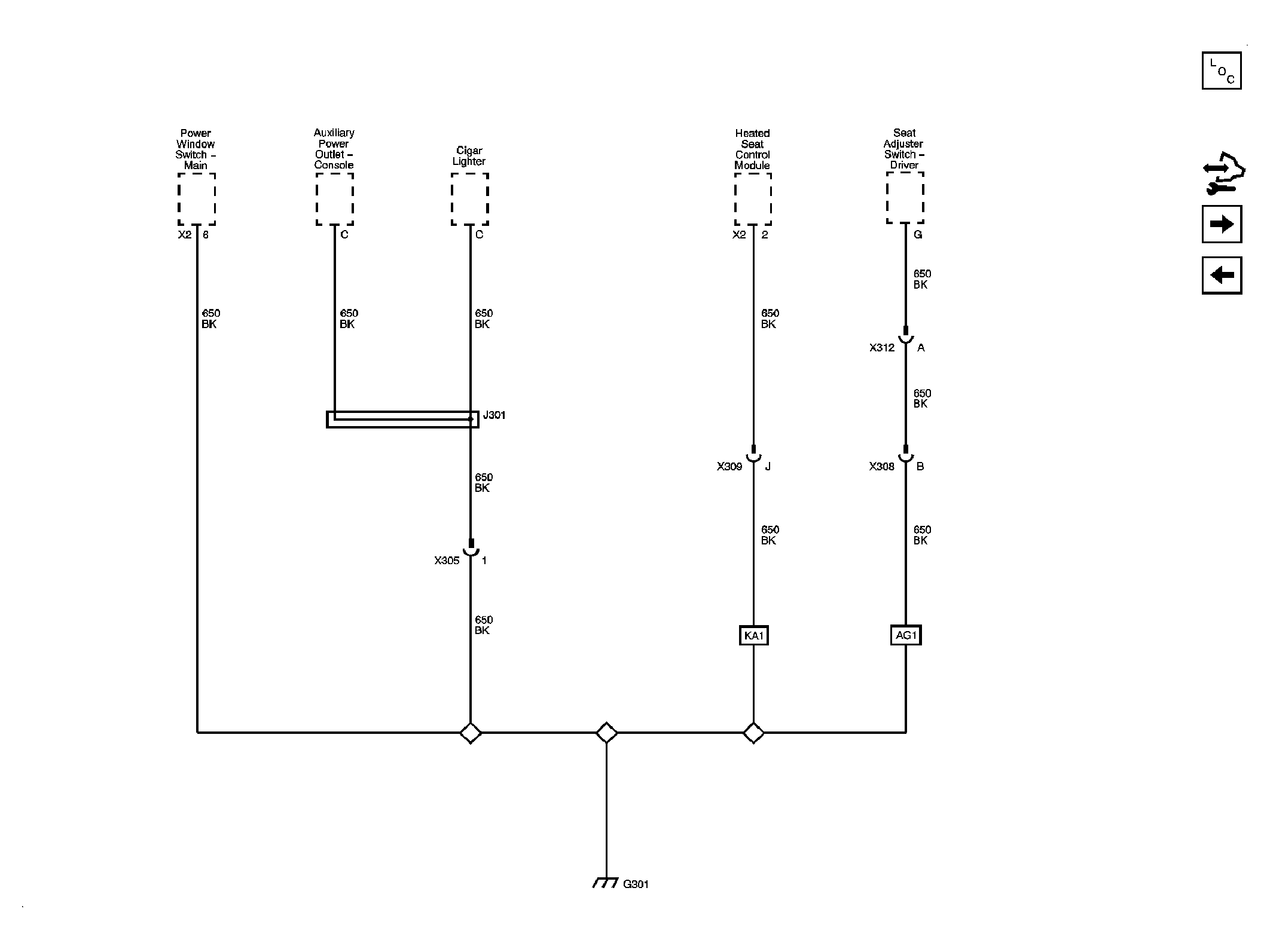

Fig 6: G301

Courtesy of GENERAL MOTORS CORP.

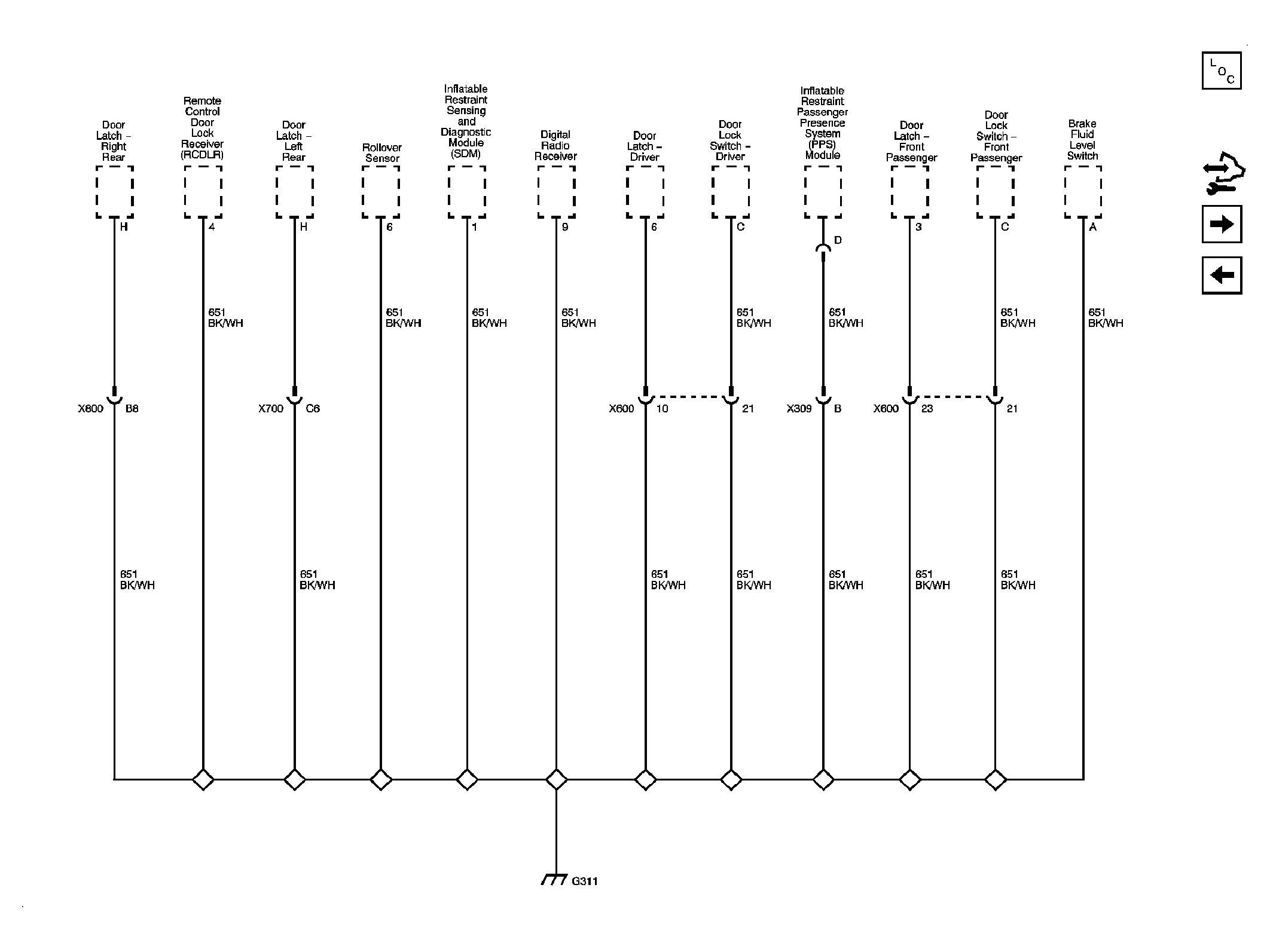

Fig 7: G311

Courtesy of GENERAL MOTORS CORP.

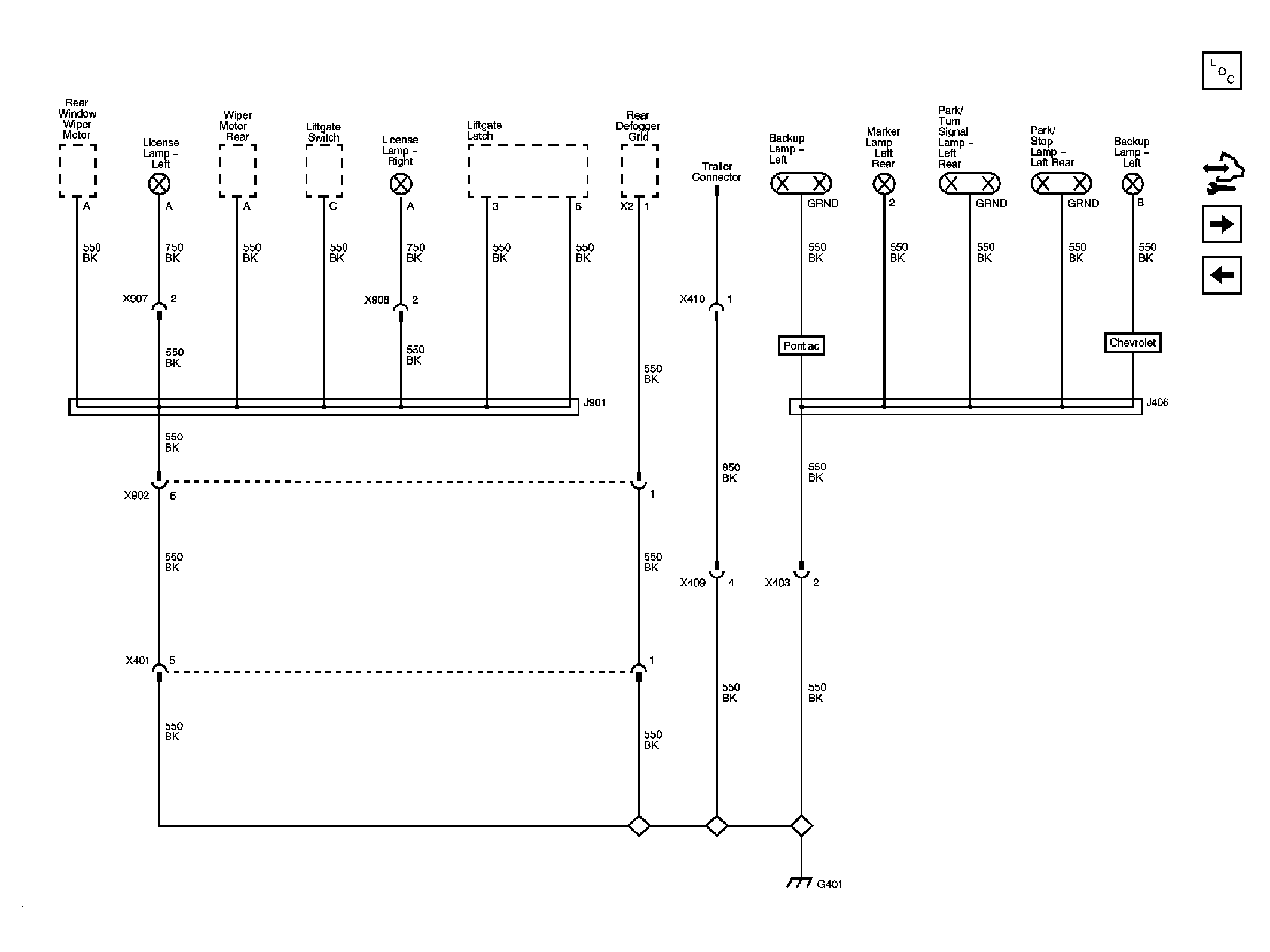

Fig 8: G401

Courtesy of GENERAL MOTORS CORP.

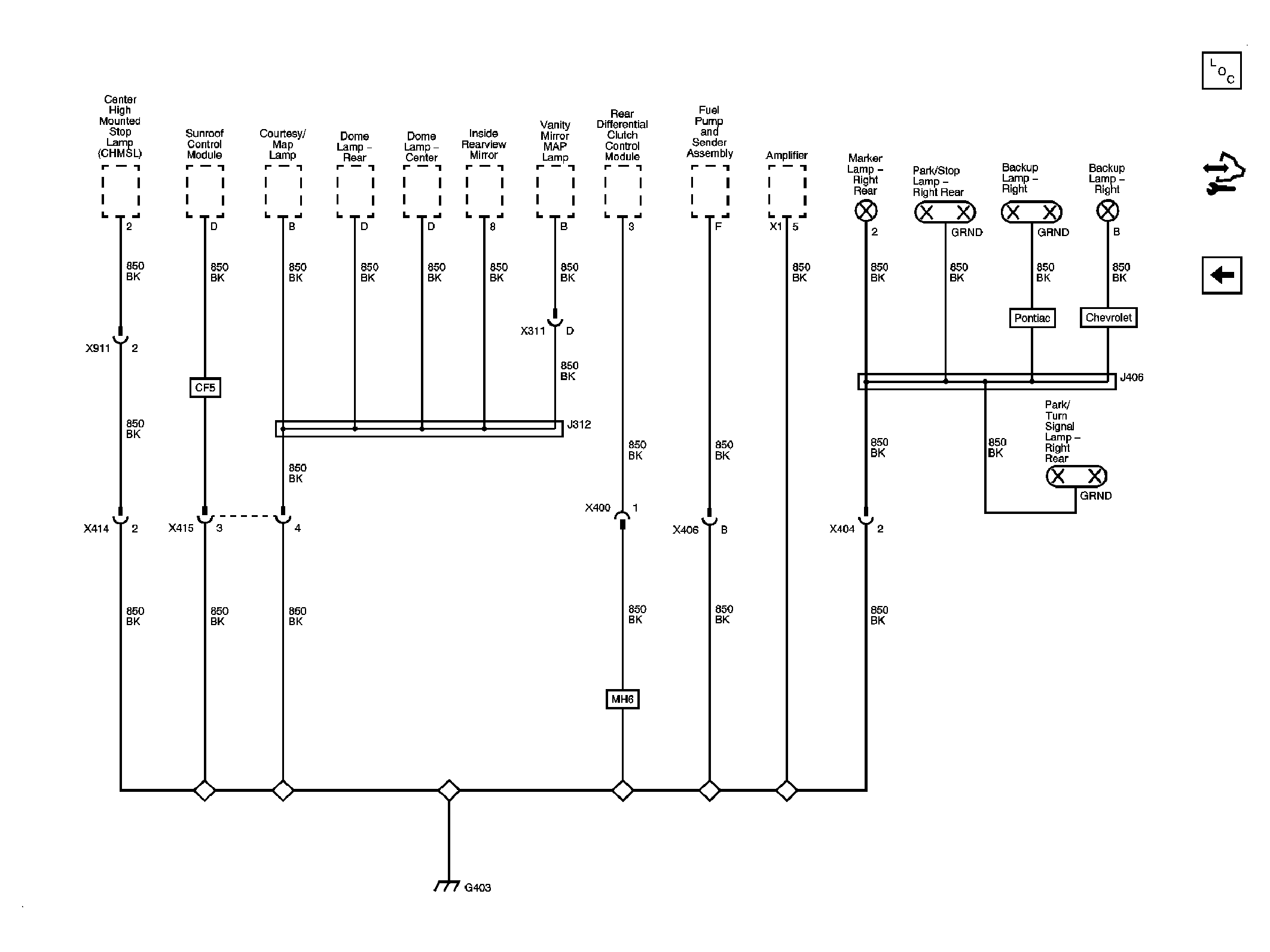

Fig 9: G403

Courtesy of GENERAL MOTORS CORP.
