Electronic Compass Module Replacement

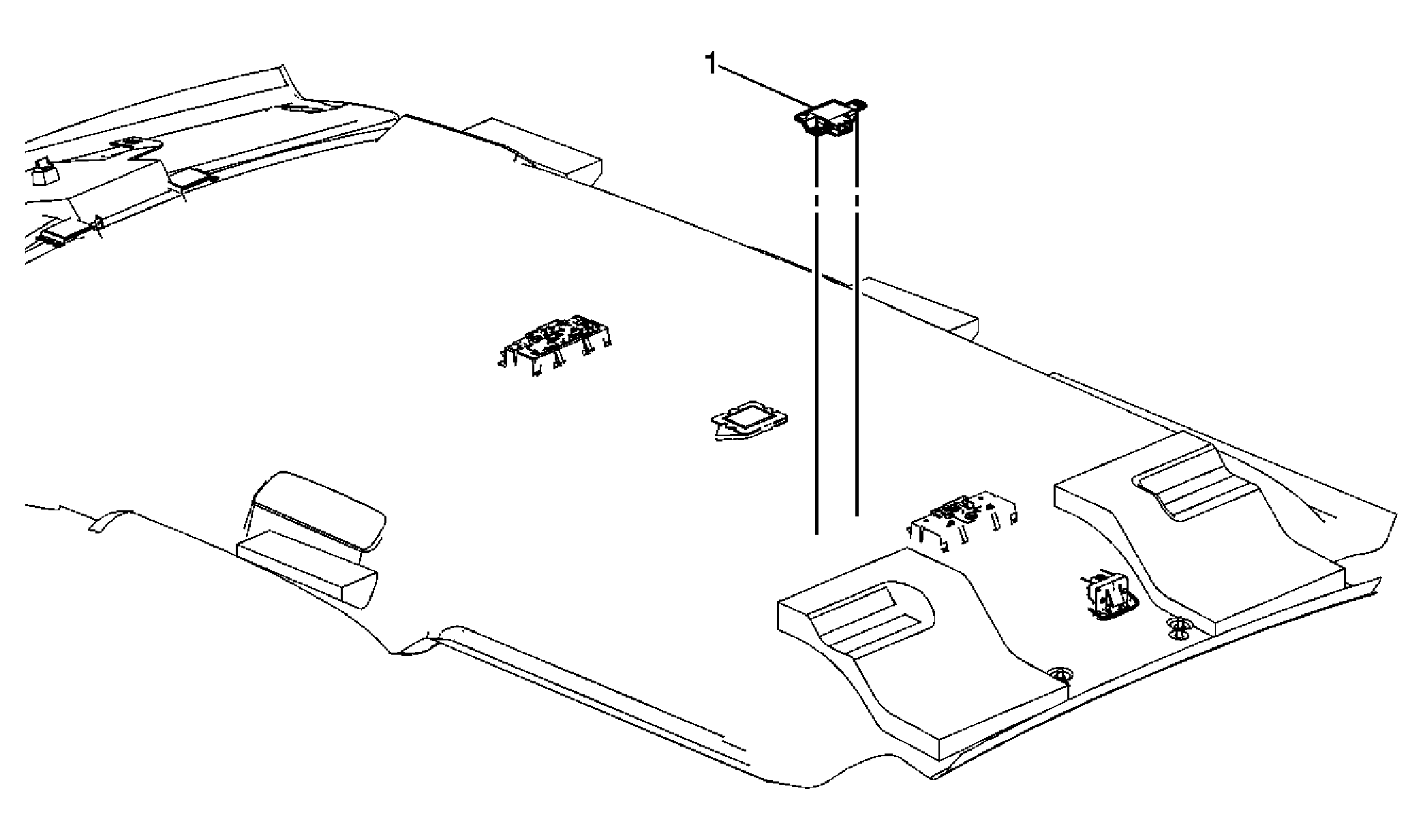

Fig 1: Identifying Electronic Compass Module
GM1970736Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Lower the headliner to gain access. Refer to Headlining Trim Panel Replacement .
1 Electronic Compass Module

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the module from the headliner assembly.
  3. Refer to Control Module References for programming and set up procedures.
