Front Side Door Window Switch Replacement

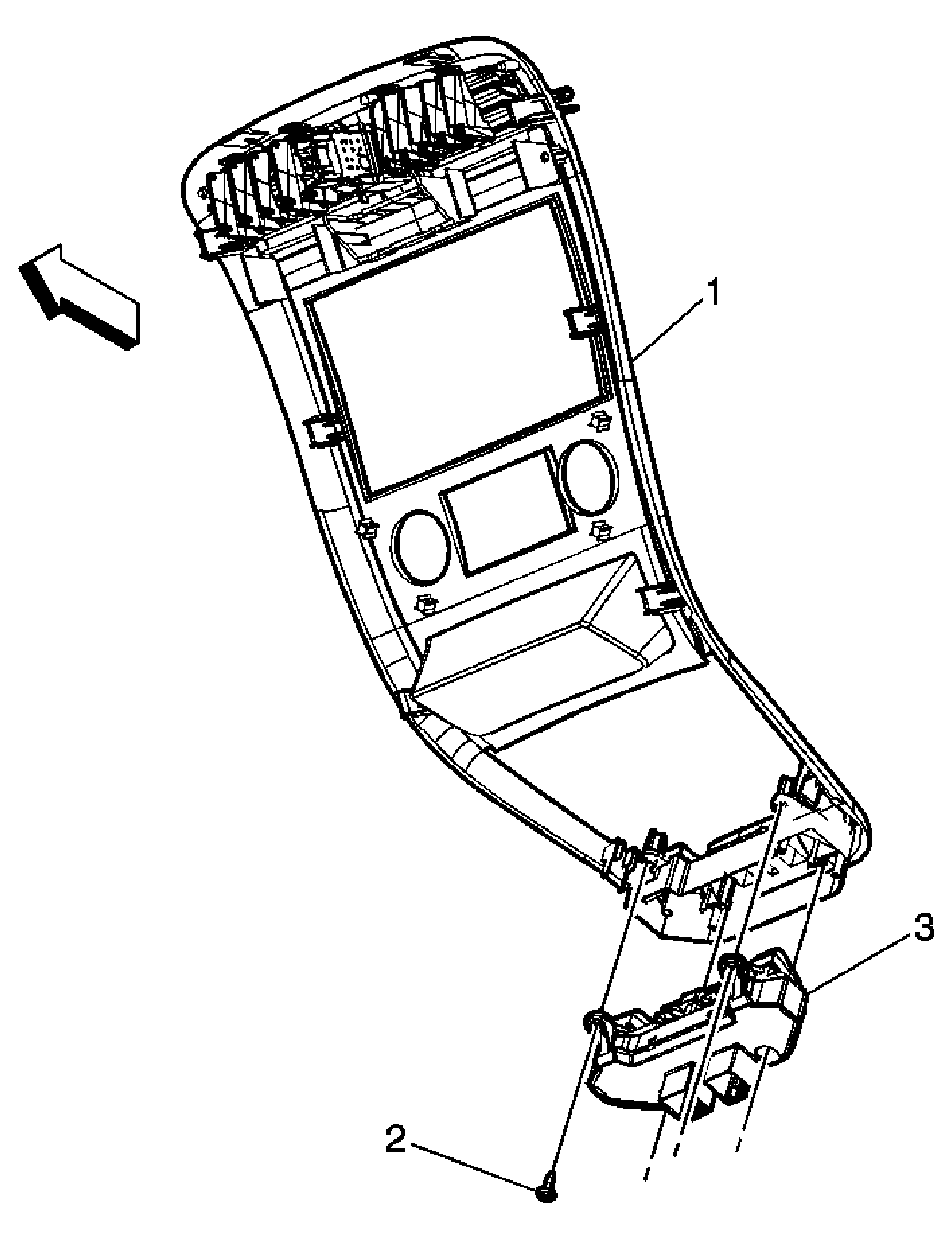

Fig 1: Identifying Front Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement
2	Front Power Window Switch Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2.5 N.m (22 lb in)
3	Front Power Window Switch Assembly Procedure:  Disconnect the electrical connectors.
